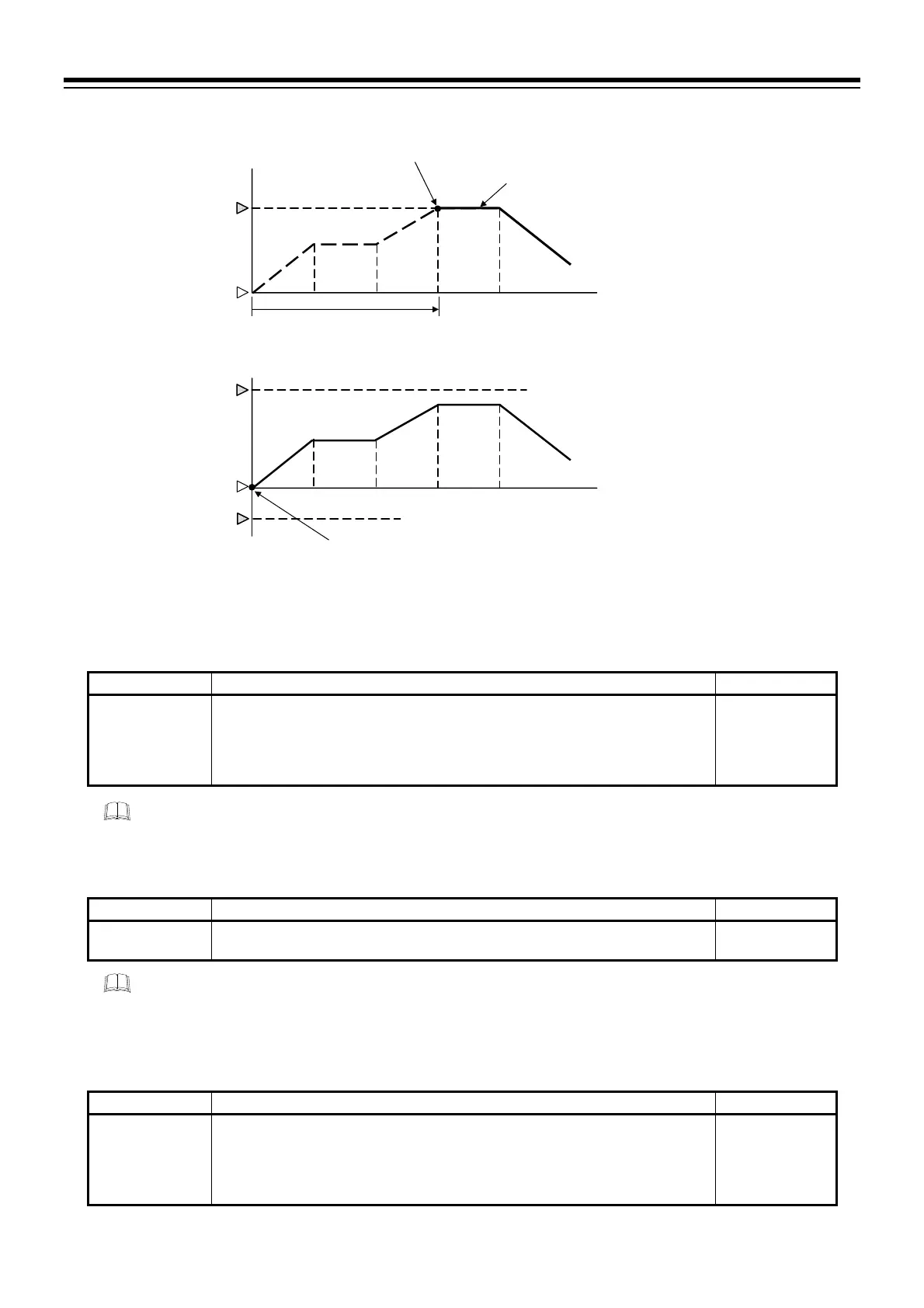

 When the Measured value (PV) matches soak segment:
 When no intersection was found:
6.2.2 Parameter setting
 SV selection at Program start [Setup setting mode]
Select Segment level at Program control start.
Parameter symbol Data range Factory set value
ST.SV
0: Start with the Set value (SV) in the Reset mode.
1: PV start 1 [Time fixed type]
2: PV start 2 [Time saving & ramp holding type]
3: PV start 3 [Time saving & level searching type/with HOLD function at start]
4: PV start 4 [Time saving & level searching type/without HOLD function at start]
2
SV selection at Program start can be set at F80.01 (P. 4-43) in the Engineering mode.
 Set value (SV) in Reset mode
Set SV in the Reset mode.
Parameter symbol Data range Factory set value
SV
Setting limiter low to Setting limiter high 0 (0.0)
SV at the Reset mode can be set in the Reset mode setting block (P. 4-20) of the Parameter setting
mode.
 Wait memory group number at Program start [Engineering mode F80.02]
Select Wait memory group number as Wait function condition at Program control start.
Parameter symbol Data range Factory set value
ST.WT
0: Wait OFF 5: Wait memory 5
1: Wait memory 1 6: Wait memory 6
2:
Wait memory 2 7: Wait memory 7
3:
Wait memory 3 8: Wait memory 8
4: Wait memory 4
0
Time
Level
Skip the time of process to the beginning of the segment being matched.
Time-saving
Soak segment
Measured value (PV)
Set value (SV) in
the Reset mode
Time
Level
Start from the beginning of the program.
Measured value (PV)
Measured value (PV)
Set value (SV) in
the Reset mode
