46 • Calibration Program
Calibration Program Flow
Figures 11, 12, and 13 below illustrate the general flow of the Calibration
Program for the three possible detector head combinations. See the next
section, Entering the Calibration Program, for instructions to enter the
Calibration Program. In general, the program screens provide instructions
to guide you through the program. At any point in the calibration program,
the ESCAPE button may be used to either return to the previous screen or
abort a process.
Select Cal. Gas
Concentration
for Channel 2
Calibrate
Channel 1 Y/N?
Calibration
Timeout
Selection
ENTER
Normal
Operation
Apply Gas to
Ch. 1 & Ch. 2
Detectors
Air Adjust
Channel 2
(If Installed)
Press Enter to
Adjust Span
Span
Channel 2 Y/N?
(If Installed)
Select Cal. Gas
Concentration
for Channel 1
Air Adjust
Channel 1
Calibration
Program Enter
ENTER/ESCAPE
ESCAPE
Calibrate
Channel 2 Y/N?
(If Installed)
Span
Channel 1 Y/N?

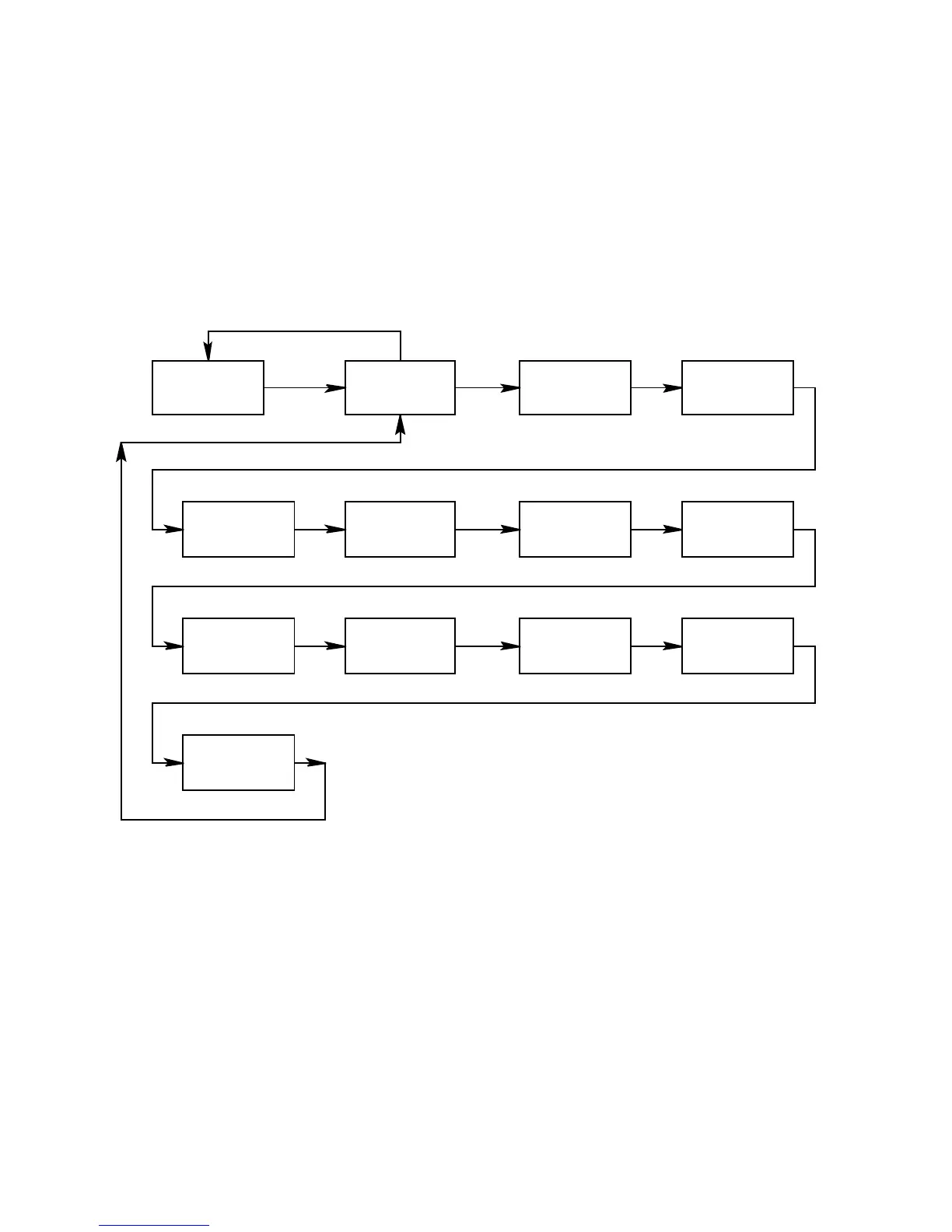

Figure 11. Direct Connect Detector Head(s) Only
To Next Page
