Rlaarlo CT-8A - Receiver; Receiver Introduction; Servo Mode; Signal Indicator Light

7.2 Servo mode
Press the Bind Button for 3 seconds, the blue light on the receiver will be on.
If the blue light is on, it is on Digital Servo Mode. (PWM output frequency: 333Hz)
If the blue light is off, it is on Analog Servo Mode. (PWM output frequency: 50Hz)
The pulse width of Digital Servo is 500µs - 2500µs.
The pulse width of Analog Servo is 1000µs - 2500µs.
7.3 Signal indicator light
7.4 Note
1: The antenna of the receiver must be protected to prevent breakage, pay attention to magnetic field
interference when the receiver is positioned.
2: The receiver is not waterproof, do not play near the water or on the rainy day.
3: The signal transmission tower might interfere the signal.
When the green light flashes slowly, it means no signal.
When the green light flashes fast, it means the receiver and transmitter are under pairing.
When the green light is on, it means the receiver and transmitter have been matched.
7.1 Receiver introdction

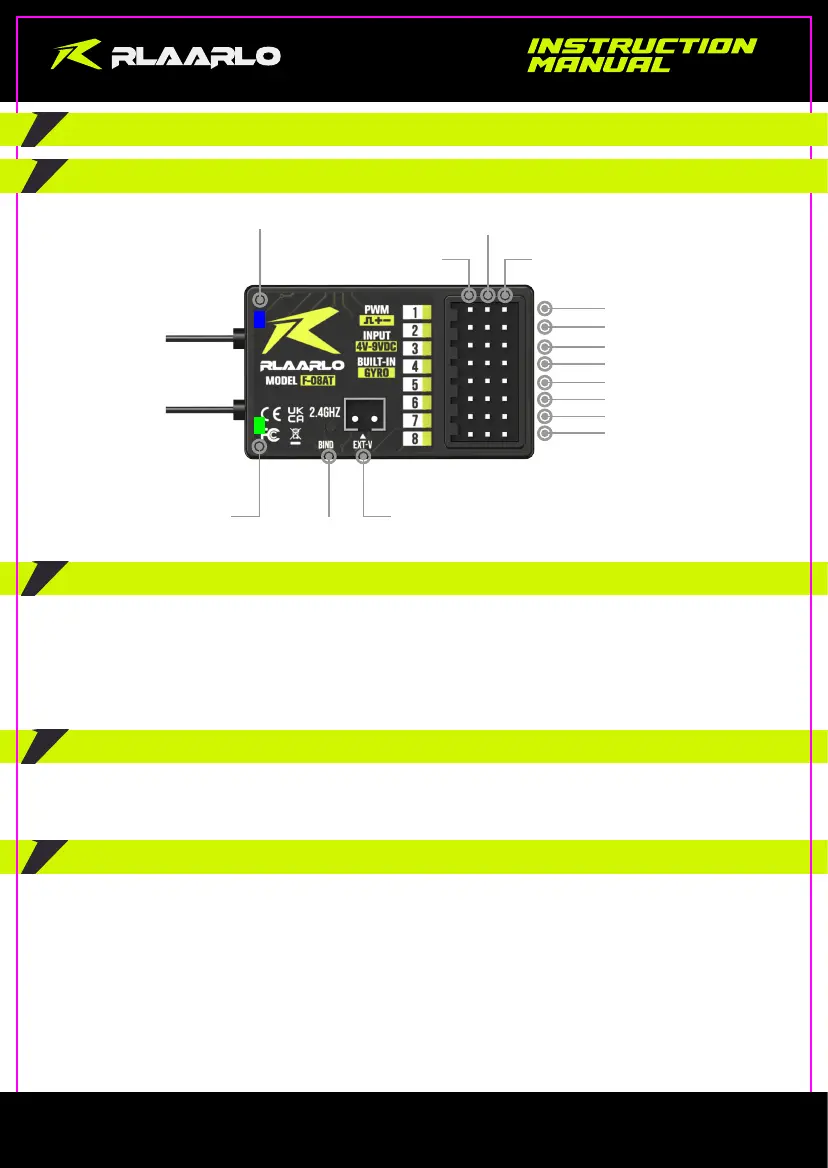

7.RECEIVER
Channel 1
Positive Pin
Negative PinSignal Pin
Servo Mode Light
Battery Voltage
Feedback Port
Binding Button
Signal Indicator Light
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
Channel 8
- 13 -
