HLA 305
4
Frequenza - Frequency : 1.5 ~ 30 MHz all amateur bands including WARC bands
Modi - Mode: AM, FM, SSB, CW, RTTY
Potenza di pilotaggio - RF Drive: 10W typ. (15W max.)
Potenza d'uscita Media – Average Output Power: P1dB 200W CW ±1dB typ.
P3dB 250W CW ±1dB typ.

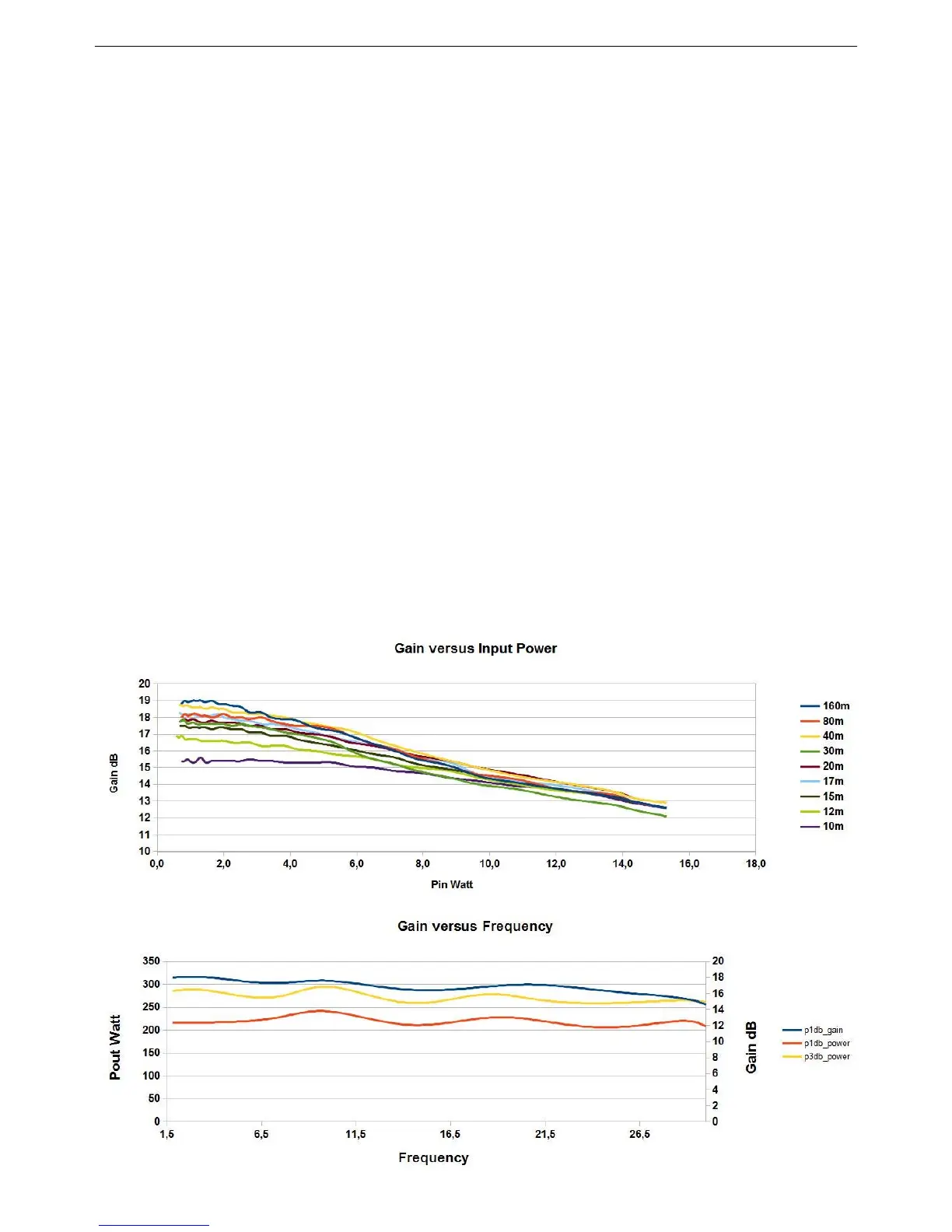

Guadagno – Gain: 16.5 ± 1dB P1dB
Tensione di Alimentazione - Power Voltage: 13 Vcc ±2V
Corrente assorbita - Input Current: 45 A max.
Impedenza d'ingresso - Input Impedance: 50Ω (unbalanced)
Impedenza d'uscita - Output Impedance: 50Ω (unbalanced)
Transistor di potenza - Final Transistor: MRF 455 x 4
Configurazione - Circuit: Class AB push-pull
Metodo di raffreddamento - Cooling Method: Forced Air Cooling (HLA305V)
Microprocessore - MPU: PIC 18F4620
LCD: Temperatura dissipatore – Heat-sink temperature
Stato amplificatore – Amplifier state
Banda usata – Current Filter
Settaggi—Settings
Protezioni – Protection: Potenza d'ingresso – Input Power
Errore Filtri – Filter Error
R.O.S. - S.W.R.
Temperatura – Temperature
Frequenza - Frequency
Connettori Ingresso/Uscita - Input/Output Connectors :
UHF SO-239 with low loss Teflon insulator
PTT (RCA Connector)
Dimensioni - Dimensions : 240 x 67 (90 HLA305V) x 450 mm (W x H x D)
3. SPECIFICHE – SPECIFICATIONS
