Figure 3
031-5
Figure 4
034-5
continued from preceding page
head shoulder bolt connecting the swivel ear to the end of
one of the tow bar arms (Figure 1). Discard the original swivel
ear, shoulder bolt, washers and nut.

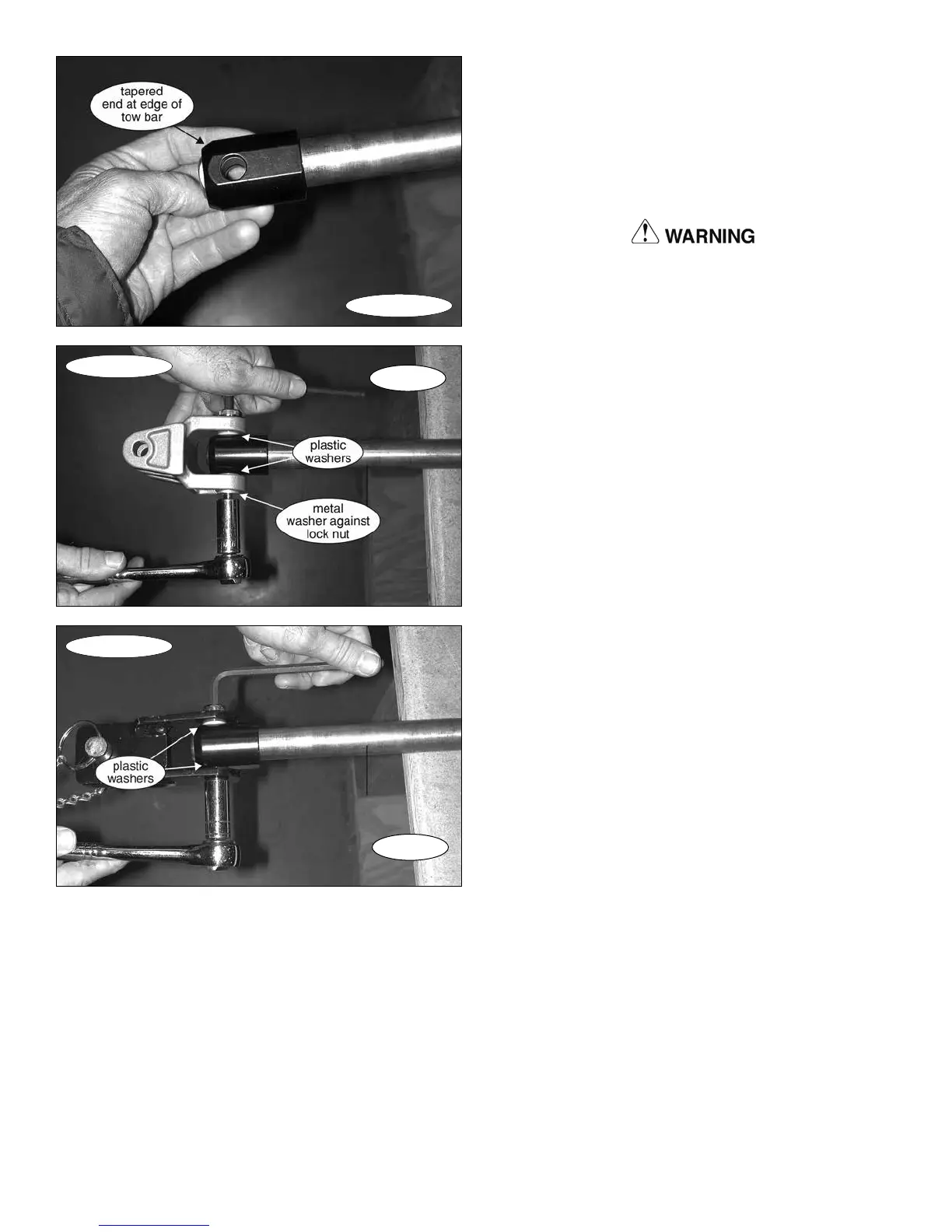

2. Align the hole in one of the replacement round nuts to
the hole at the end of the tow bar arm.
Note: position the round nut with the tapered end at the
edge of the tow bar (Figure 2).
Position the round nut as described above. If the
round nut is positioned incorrectly, the tow bar arm will
fail. The towed vehicle will separate, or be held by only
one tow bar arm, which may cause property damage,
personal injury or even death.
3. Attach one of the replacement swivel ears to the round
nut — use one of the supplied Allen head shoulder bolts, two
plastic washers (one against either side of the round nut),
and one lock nut, as shown in Figures 3 and 4.
Note: for 031-5 adaptors O N LY — insert one of the metal
washers against the lock nut, as shown in Figure 3.
4. Torque the lock nut to 45 ft./lbs.
5. Repeat for the other tow bar arm.
Figure 2
