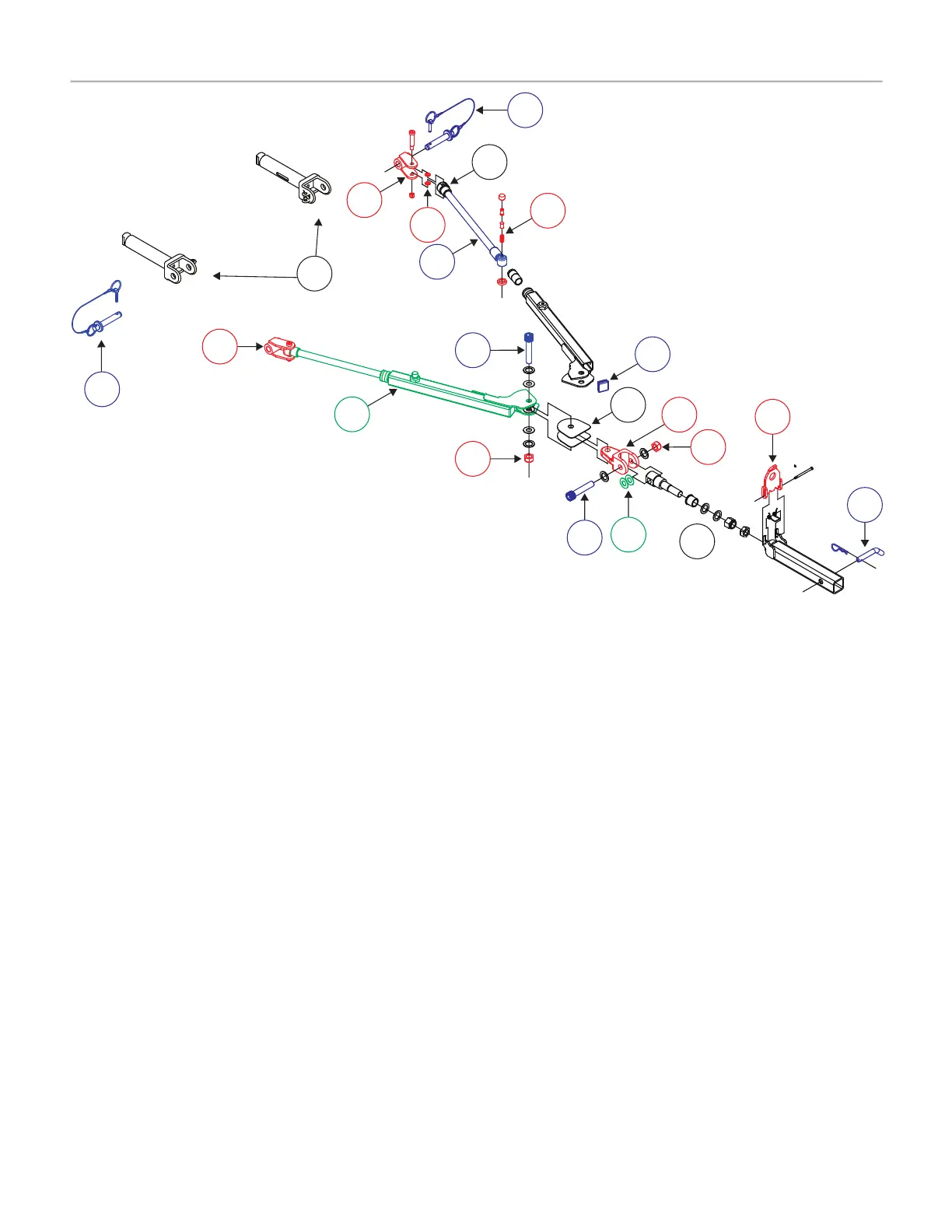

FALCON 2 COMPONENTS
part
description number
1 baseplate arms (not included)
2 base pin, cable and linch pin
(two each; color-coded blue) ...........................910029
3 collar assembly, complete
(one each; color-coded red) .............................9200-4
3a ½" nylon washer (one) .........................350356-00
4 round nut (color-coded black) ....................650004-80
5 inner arm assembly
(one; color-coded blue) ................................ C000172
6 inner locking mechanism repair kit
(two sets; color-coded red — includes two Autowlok
buttons; two button pins, two plungers, two springs;
two flat white acetyl washers; and one epoxy glue
kit with stick) ..............................................910003-80
7 outer arm cap (color-coded blue) ............... 200140-40
8 finger guard (one; color-coded black) ...........A006405
part
description number
9 yoke (color-coded red)
replacement finger guard/yoke combo: 910011B
10 stinger assembly (color-coded black) ............910500
10a storage latch (color-coded red) ..................B001353
11 hitch pin and clip (color-coded blue) ............... 910027
12 ¾" nylon washer (one each;
color-coded green) .....................................350358-00
Note: seven needed for complete tow bar nylon
washer repair
13 ¾" bolt (one each; color-coded blue) ......... 350184-50
14 ¾" nut (one each; color-coded red) ...........350267-01
15 ¾” bolt (one each; color-coded blue) .........350199-00
16
inner/outer arm assembly,
complete (color-coded green)
driver's side ................................................ 910021-70
passenger side ...........................................910021-80
9
