ELECTRICAL SYSTEM
Doc No: 21906503 Rev: 05 Copyright © Roadtrek Motorhomes Inc. 2007 E - 6

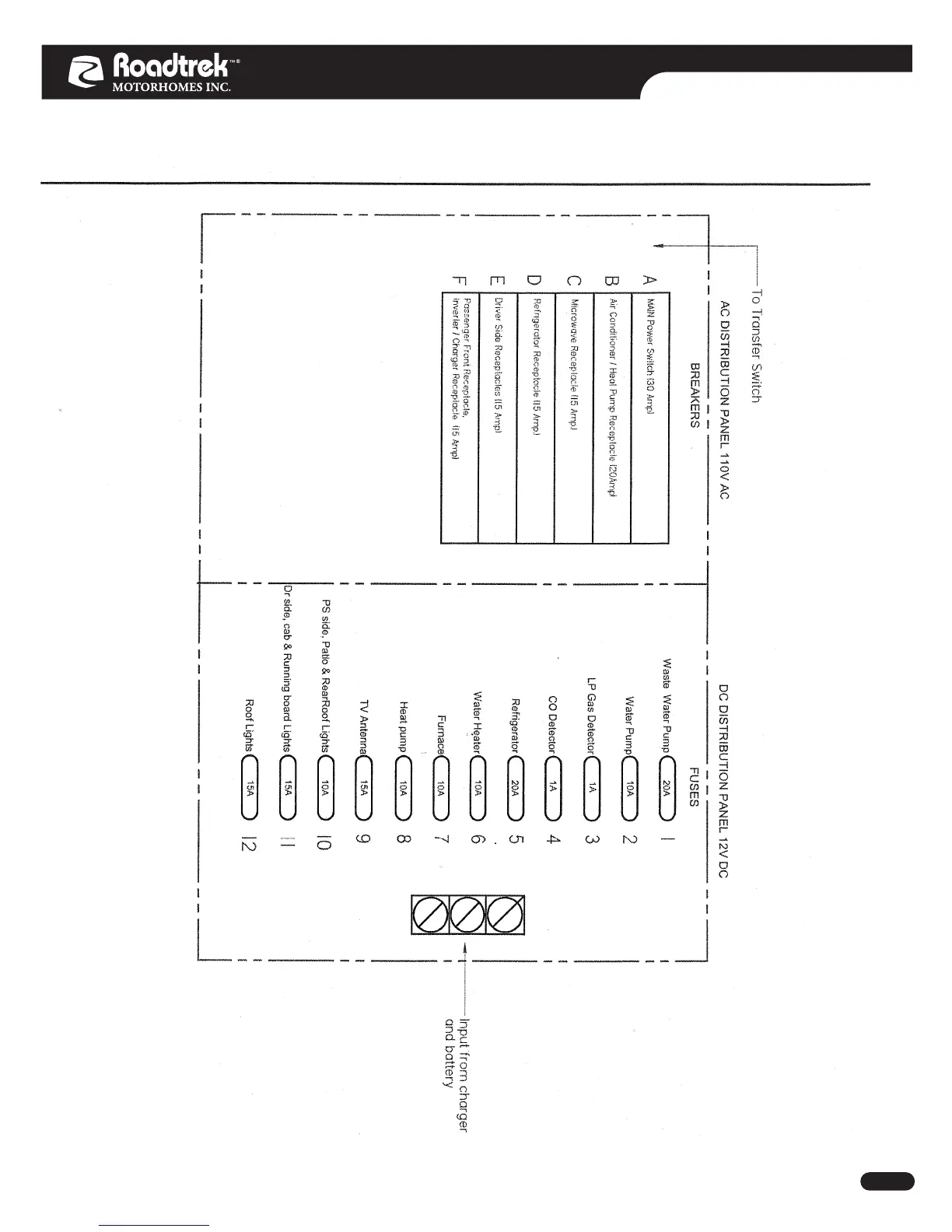

Electrical Distribution Panel - 170/190 MY07
