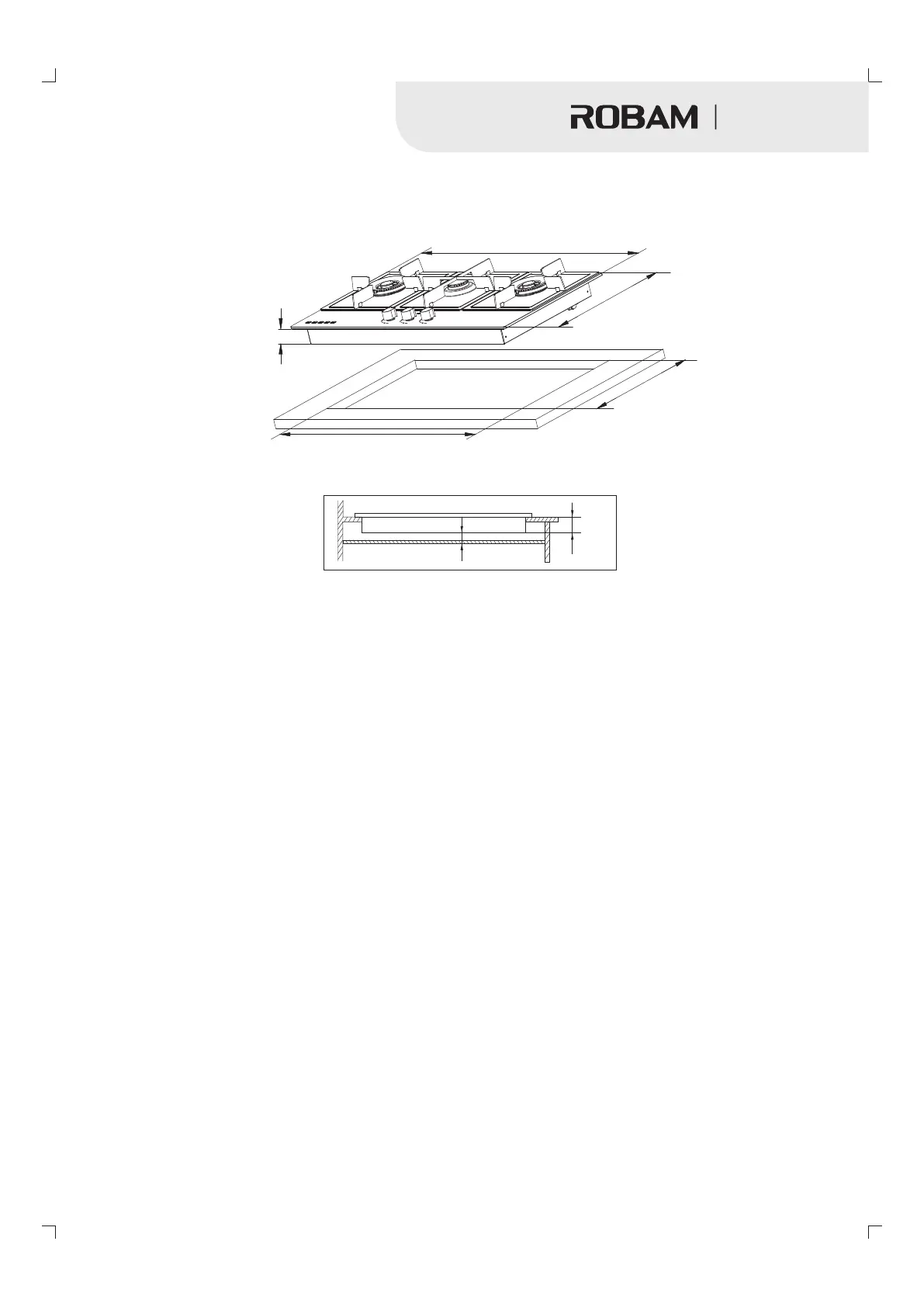

◆Cut a hole in the worktop that corresponds with the relevant drawing as shown above.
60mm
50mm
Important information
Ventilation requirements
Unpacking the appliance
Remove any protective wrapping before installing.
900mm
500mm
60mm
820mm
450mm
◆The room containing the hob should have an air supply in accordance with the current edition of AS/NZS 5601.1
◆The room must have opening windows or equivalent some rooms may also require a permanent vent.
◆If there are any other fuel burning appliance in the same room the current edition of AS/NZS 5601.1 should be
consulted to determine air vent requirements.
◆Ensure that the room containing the hob is well ventilated, keep natural ventilation holes or install a mechanical
ventilation device(mechanical cooker hood).
◆Prolonged intensive use of the appliance may call for additional ventilation, either by the opening of a window, or
by increasing the level of the mechanical ventilation device(where present).
◆This hob is not fitted with a device for discharging the products of combustion, Ensure that the ventilation rules
and regulations are followed.
◆The walls behind and near the hob should be resistant to heat, steam and condensation.
,
◆An AUTHORISED PERSON undertake the installation and service work, in compliance with the above
regulations.
◆IMPORTANT: You must have a gap of at least 50mm between the underneath of the appliance and any
surface that is below it.
◆IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult
to remove the hob from the aperture in future, particularly if it needs to be serviced.
◆The minimum clearance from a combustible surface shall be a 200mm horizontal distance from the periphery
of any gas burner (AS/NZS 5601.1).
