Gas Safety(Installation and Use)Regulations
IMPORTANT: The appliance must be connected to the gas supply by use of a 15mmx1/2”conical thread
female.coupler, seal, copper pipe and an isolation tap fitted in an easily accessible position.
◆It is the law that all gas appliance are installed by competent persons in accordance with the current
edition of the gas safety installation and use regulations.
◆It is in your interest and that of safety to ensure compliance with the law.
◆An AUTHORISED PERSON work to safe standards of practice. The hob must also be installed in
accordance with the current edition of AS/NZS 5601.1. Failure to install the cooker correctly could invalidate
the warranty, liability claims and lead to prosecution.
Inlet connection region for flexible hose
800
250
50
250
Width of
appliance
Gas connection
◆ hose connectionFlexibility
▶THIS
CURRENT VERSIONS OF THE FOLLOWING.
▶HOSE ASSEMBLY MUST BE RESTRAINED TO PREVENT ACCIDENTAL CONTACT WITH THE FLUE
OF AN UNDERBENCH OVEN.
APPLIANCE MUST BE INSTALLED BY A COMPETENT PERSON IN ACCORDANCE WITH THE
The flexibility hose must be certified to AS/NZS1869 - class B or class D.The inner must be
10mm and the maximum length 1.2m(The gas connection has a Rp1/2”conical thread).
Any hose assembly used must be restrained from accidental contact with the flue outlet of an under bench
oven. This hose assembly shall be suitable for connection to a fixed consumer piping outlet located as
follows: Hotplates at a point 800mm to 850mm above the floor and in the region outside the width of the
appliance to a distance of 250mm.
Ø
7

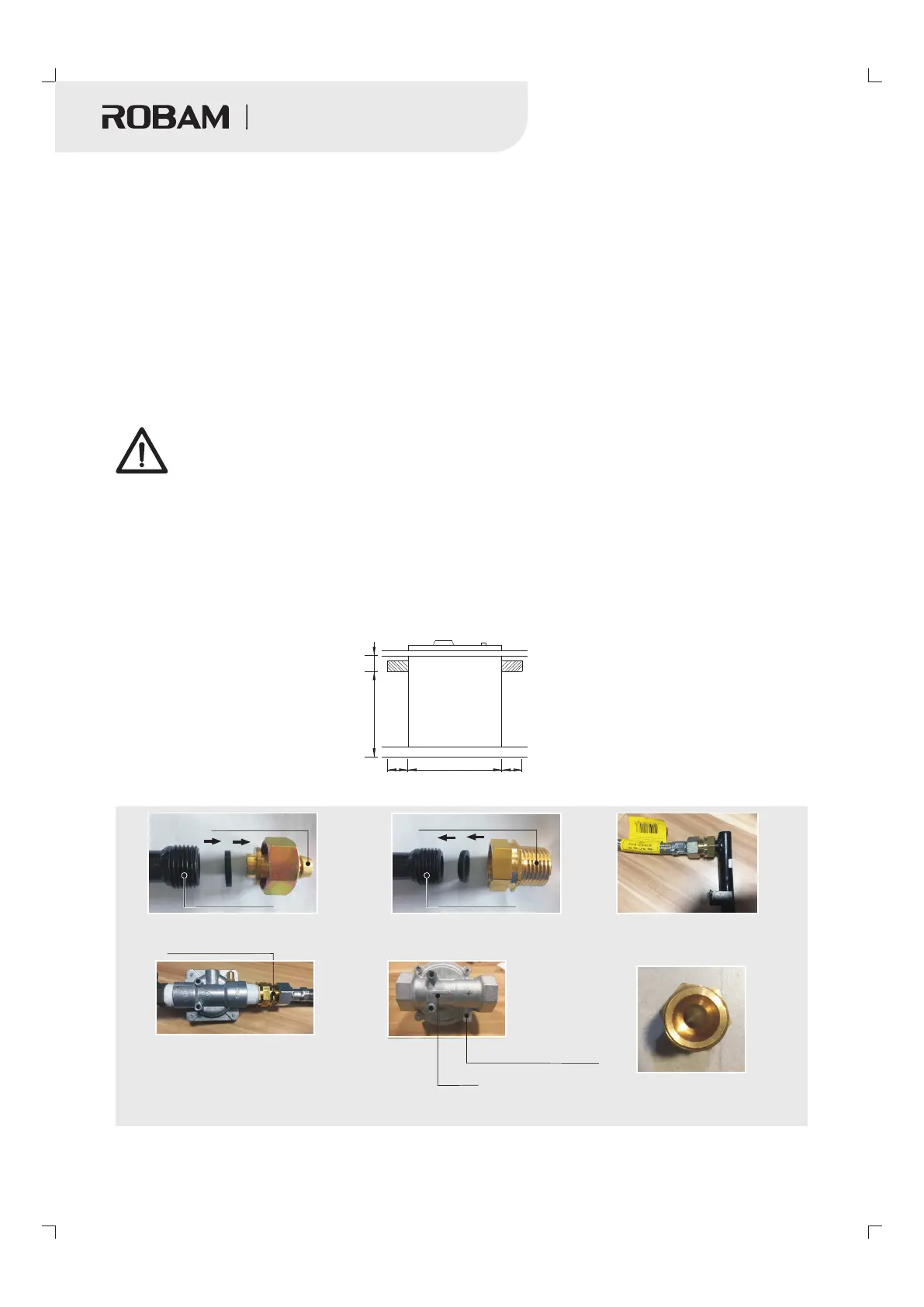

Step 1: Remove the hose connector Step 2: Install the one-way
connector on the inlet pipe
Step 3: the flexibility
hose coupler with the
one-way connector
Connect
Pressure Test Point
Installation diagram
Step 4: Flexible the other end of the
hose connector is connected to the
cone of the connector, The
connector on the other side is
connected to the output gas regulator.
two-way
The cone of the two-way
connector
Hose Connector
One-way Connector
Two-way Coupler
Gas Inlet Pipe
Gas Inlet Pipe
Arrow
Gas Hob
