8

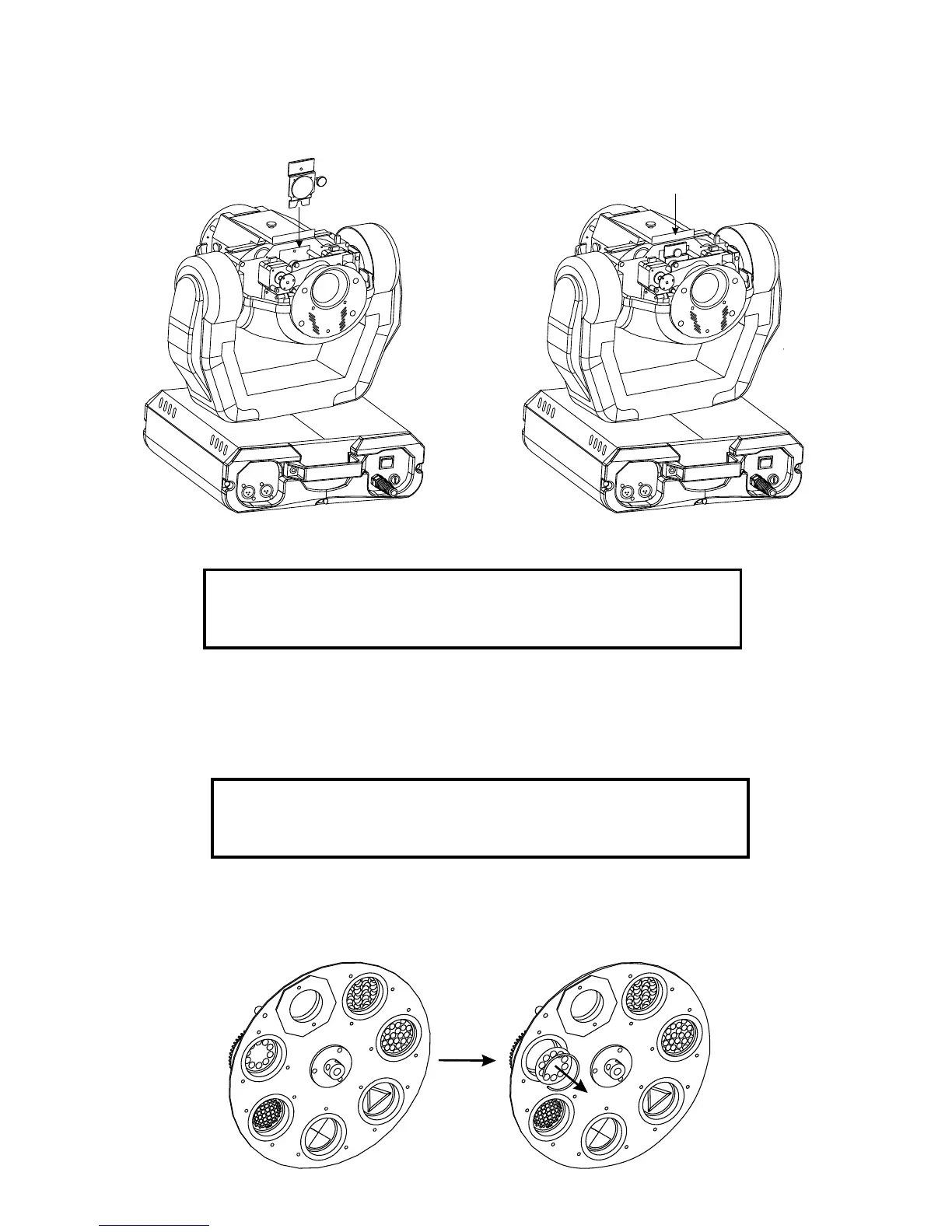

Optional 18°-lens:
Unscrew the knurled-head screw on the plate of the light-output. Install the optional 18°-lens and fix it with the
knurled-head screw.
4.4 Inserting/Exchanging gobos
DANGER!
Install the gobos with the device switched off only.
Unplug from mains before!
To insert the gobos open the top cover of the head by loosening the 4 Phillips screws on the front and rear sides
of the top cover.
If you wish to use other forms and patterns as the standard-gobos, or if gobos are to be exchanged, please follow
the instructions below:
Rotating gobo-wheel:
CAUTION!
Never unscrew the screws of the rotating gobo
as the ball bearing will otherwise be opened!
Remove the fixation-ring with an appropriate tool. Remove the gobo and insert the new gobo. Press the fixation-
ring together and insert it in the front of the gobo.
