Robertshaw 9615 - Installing the New Thermostat

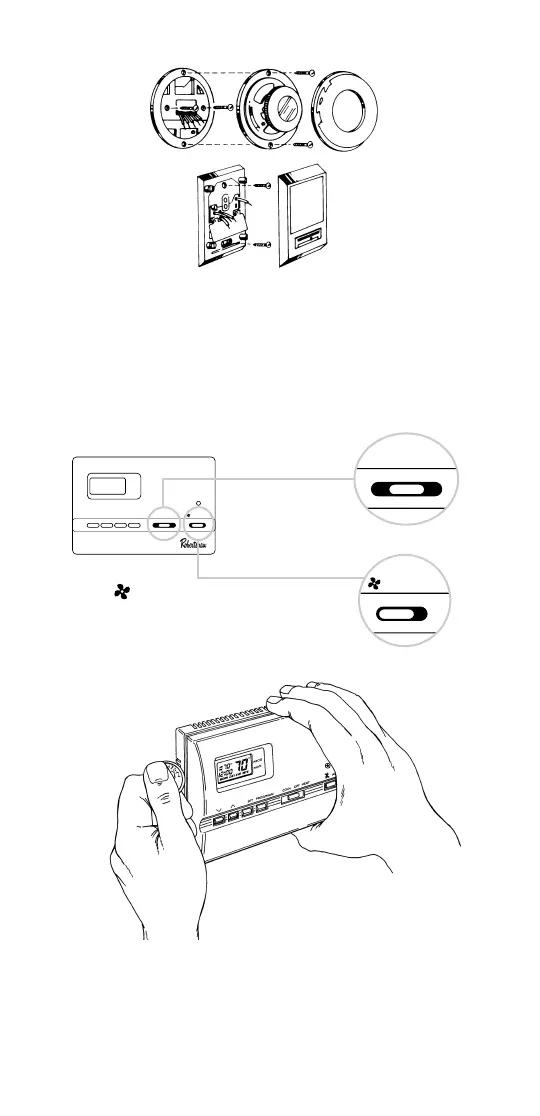

FIGURE 1
Installing Item 9615 Thermostat
NOTE: FOR NEW INSTALLATIONS
, MOUNT THERMOSTAT ON INSIDE WALL
, 4-5 FEET ABOVE THE FLOOR. DO NOT INSTALL
BEHIND A DOOR
, IN A CORNER, NEAR AIR VENTS, IN DIRECT SUNLIGHT, OR NEAR ANY HEAT OR STEAM GENERATING FIX-
TURES. INSTALLATION AT THESE PLACES WILL AFFECT THERMOSTAT OPERATION.
IMPORTANT: T
HIS THERMOSTAT IS COMPATIBLE WITH
100% LOCKOUT SYSTEMS. TO RESET THE SYSTEM, TURN
THERMOSTAT TO
OFF POSITION FOR AT LEAST 60 SECONDS.
1. Turn power off to the heating and cooling systems.
2. Place COOL-OFF-HEAT switch in OFF position.
3. Place AUTO-ON switch
into AUTO position.
4. Remove the cover using a coin
or screwdriver.
FIGURE 2
5. Place thermostat against the wall at desired location. Make sure
wires will feed through opening on base of thermostat.
6. Mark placement of mounting holes. See Fig. 3. Set base aside.
3
PROG
MAN
SET PROG/MAN COOL-OFF-HEAT
AUX
AUTO - ON
>
>
AUTO - ON
COOL-OFF-HEAT
