Fig. 4-17
FUEL TANK
OIL GAUGE
OIL DRAIN PLUG
TIMING
CHAIN
FILLER PLUG
PISTON PIN
PISTON RING
CONNECTING ROD
STARTING
MOTOR
(OPTION)
M
AGNETIC
S
WITCH
MUFFLERPISTON
CHAIN GUIDEGOVERNOR LEVER
MUFFLER COVER
G
OVERNOR
G
EAR
FUEL STRAINER
TENSIONER
OIL SENSOR
(OPTION)
CRANKSHAFTCRANKCASE
ROCKER
ARM
INTAKE VALVE
CAMSHAFT
EXHAUST
VALVE
SPARK
ARRESTER
(OPTION)
TAIL SCREE
N
or DEFLECTO
R
(OPTION)

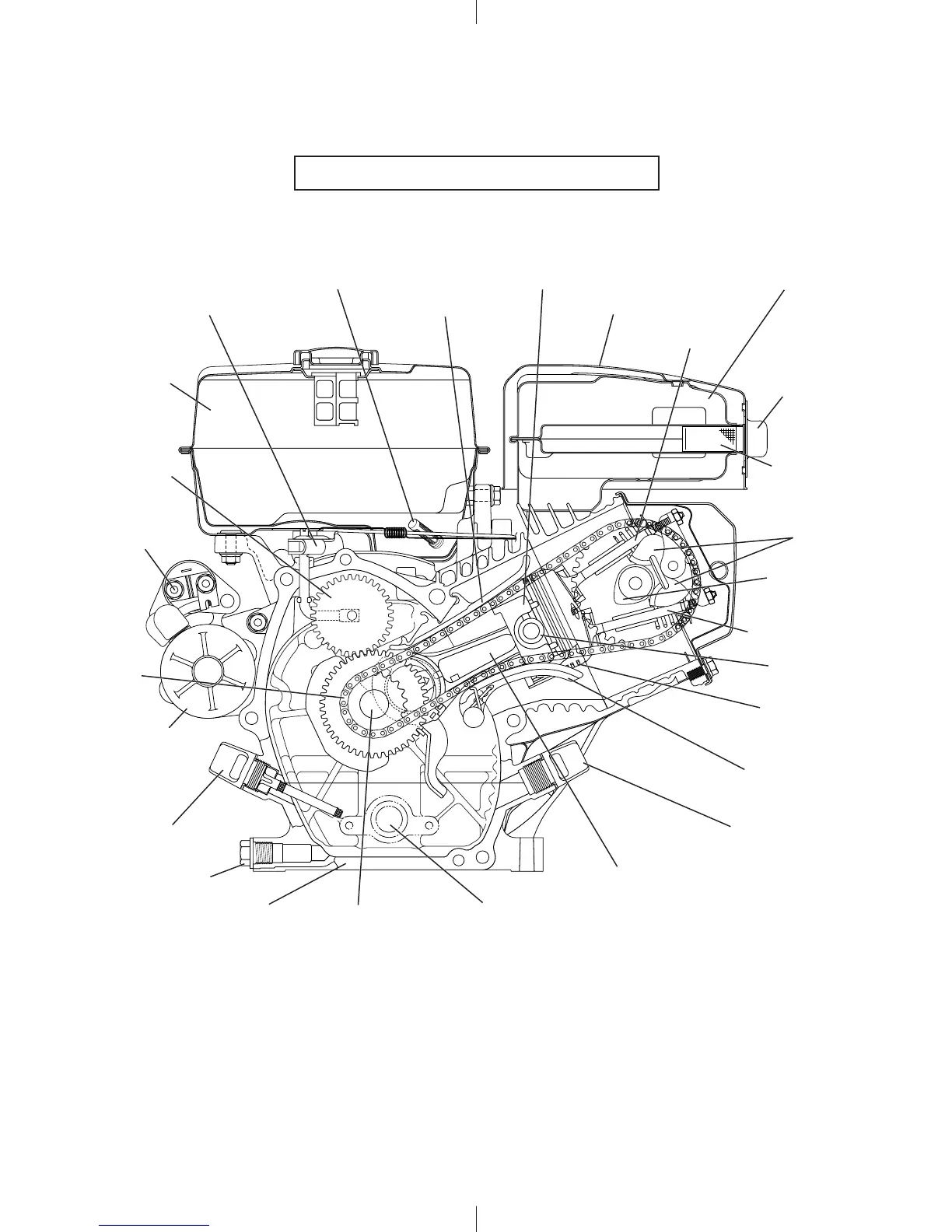

Cross sectional view – along the shaft
