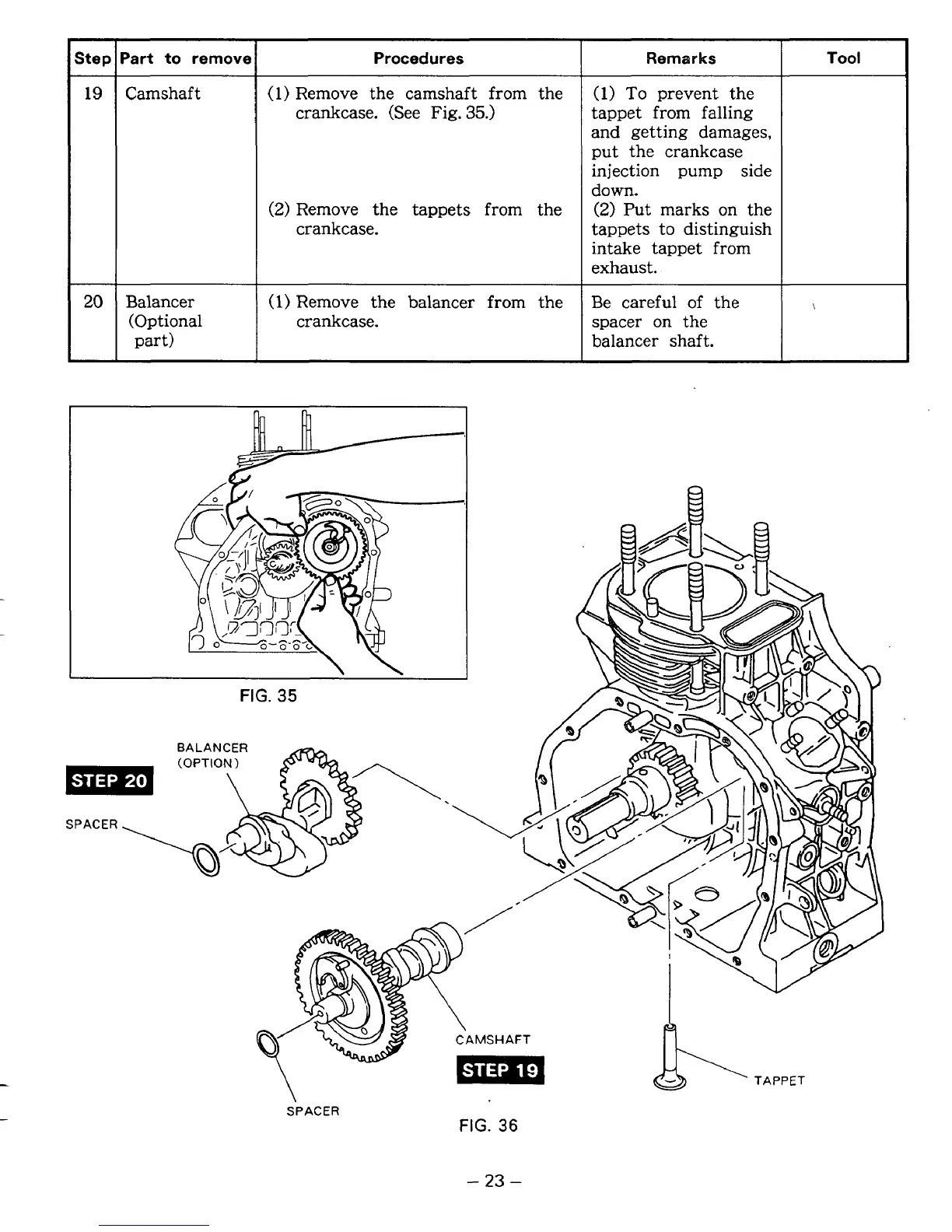

Step
F
19
20
'art to remove
Camshaft
Balancer
(Optional
part)
Procedures
(1)
Remove the camshaft from the
crankcase. (See
Fig.
35.)
(2)
Remove the tappets from the
crankcase.
i
(1)
Remove the balancer from the
~
crankcase.
Remarks
(1)
To
prevent the
tappet from falling
and getting damages,
put the crankcase
injection pump side
down.
(2)
Put marks on the
tappets to distinguish
intake tappet
from
exhaust.
Be
careful
of
the
spacer on the
balancer shaft.
Tool
SPACER
FIG.
36
-
23
-
