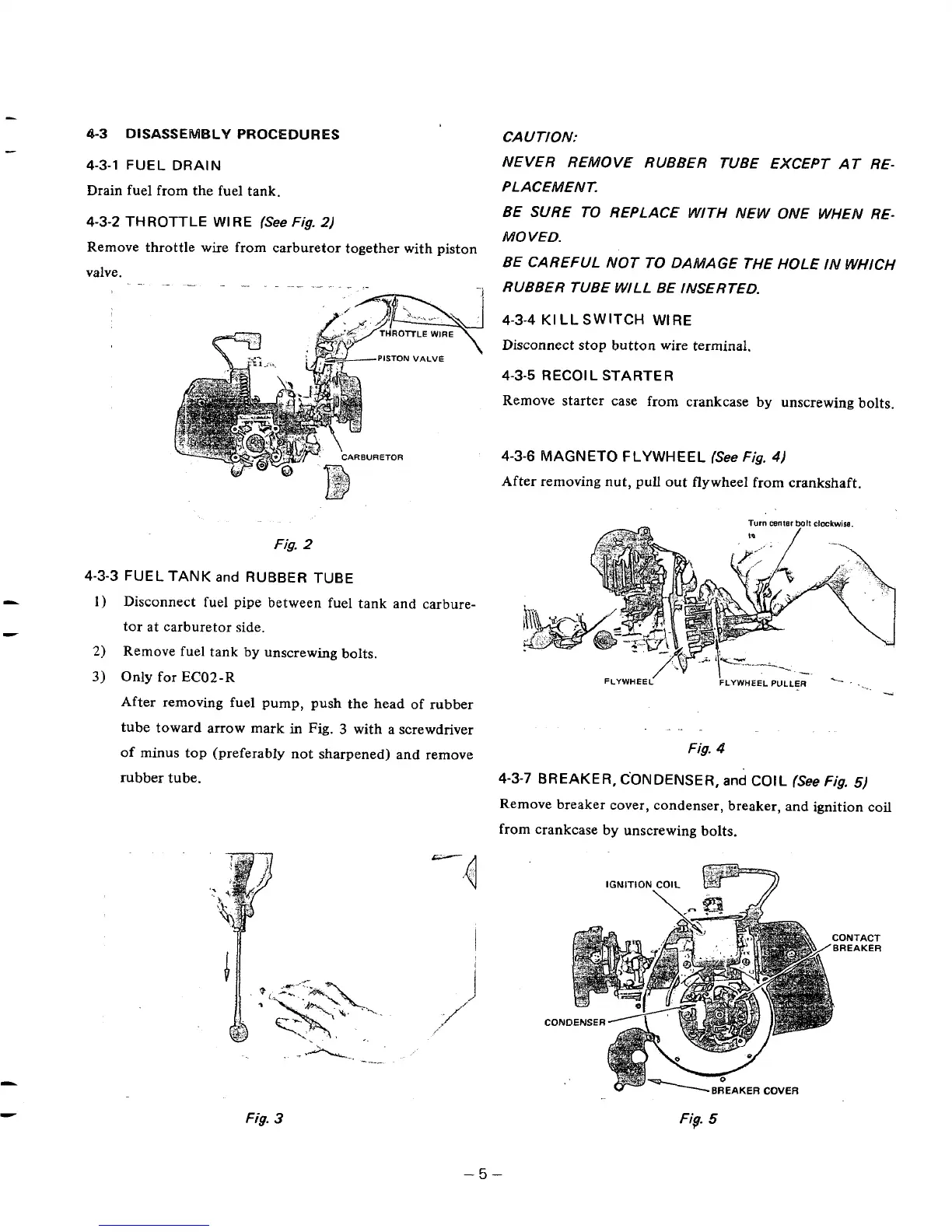

4-3 DISASSEMBLY PROCEDURES
-
4-3-1 FUEL DRAIN
Drain fuel from the fuel tank,
4-3-2 THROTTLE Wl RE (See Fig. 2)
Remove throttle wire from carburetor together with piston
valve.
.-
Fig. 2
4-3-3 FUEL TANK and RUBBER TUBE
L 1) Disconnect fuel pipe between fuel tank and carbure-
I
tor at carburetor side.
2) Remove fuel tank by unscrewing bolts.
3) Only for EC02-R
After removing fuel pump, push the head of rubber
tube toward arrow mark
in Fig. 3 with a screwdriver
of minus top (preferably not sharpened) and remove
rubber tube.
CA U TION:
NEVER REMOVE RUBBER TUBE EXCEPT AT RE-
P LACEMENT.
BE SURE
TO REPLACE WITH MEW ONE WHEN RE-
MOVED.
BE CAREFUL NOT TO DAMAGE THE HOLE IN WHICH
RUBBER TUBE WILL BE IMSERTED.
4-3-4 KILL SWITCH WIRE
Disconnect stop button wire terminal.
4-3-5 RECOl L STARTER
Remove starter case from crankcase by unscrewing bolts.
4-3-6 MAGNETO FLYWHEEL (See Fig. 4)
After removing nut, pull out flywheel from crankshaft,
Turn cenler bolt clockwiw
FLYWHEEL' ~LYWHEEL PULLER . .
*...
-
I.
Fig. 4
4-3-7 BREAKER, C'ONDENSER, and COIL (See Fig. 5)
Remove breaker cover, condenser, breaker, and ignition coil
from crankcase by unscrewing bolts.
IGNITION COIL .*
Fig. 3
Fig. 5
