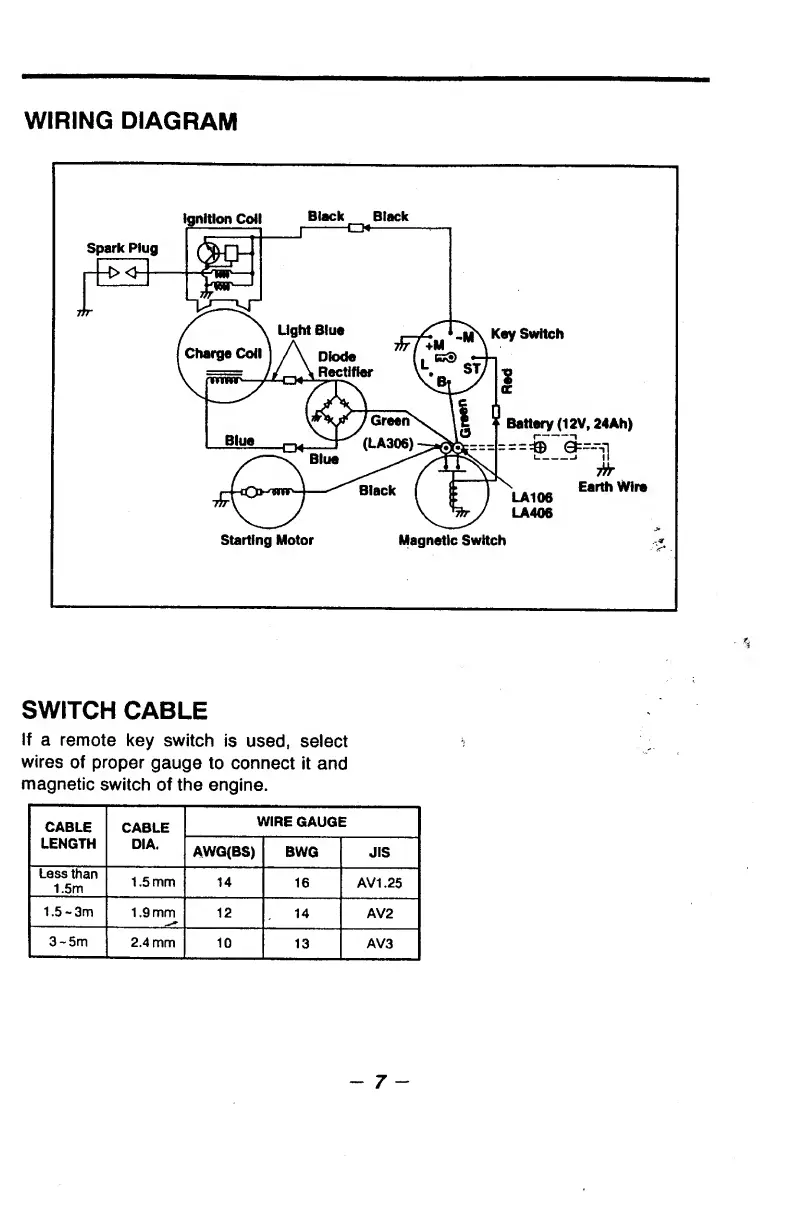

WIRING
DIAGRAM
SWITCH
CABLE
If
a
remote
key
switch
is
used,
select
wires
of
proper
gauge
to
connect
it
and
magnetic
switch
of
the
engine.
CABLE
LENGTH
CABLE
DIA.
WIRE
GAUGE
AWG(BS)
BWG
JIS
Less
than
1.5m
1.5
mm
14
16
AVI
.25
1.5-3m
mss!
12
14
AV2
3-5m
2.4
mm
10
13
AV3
