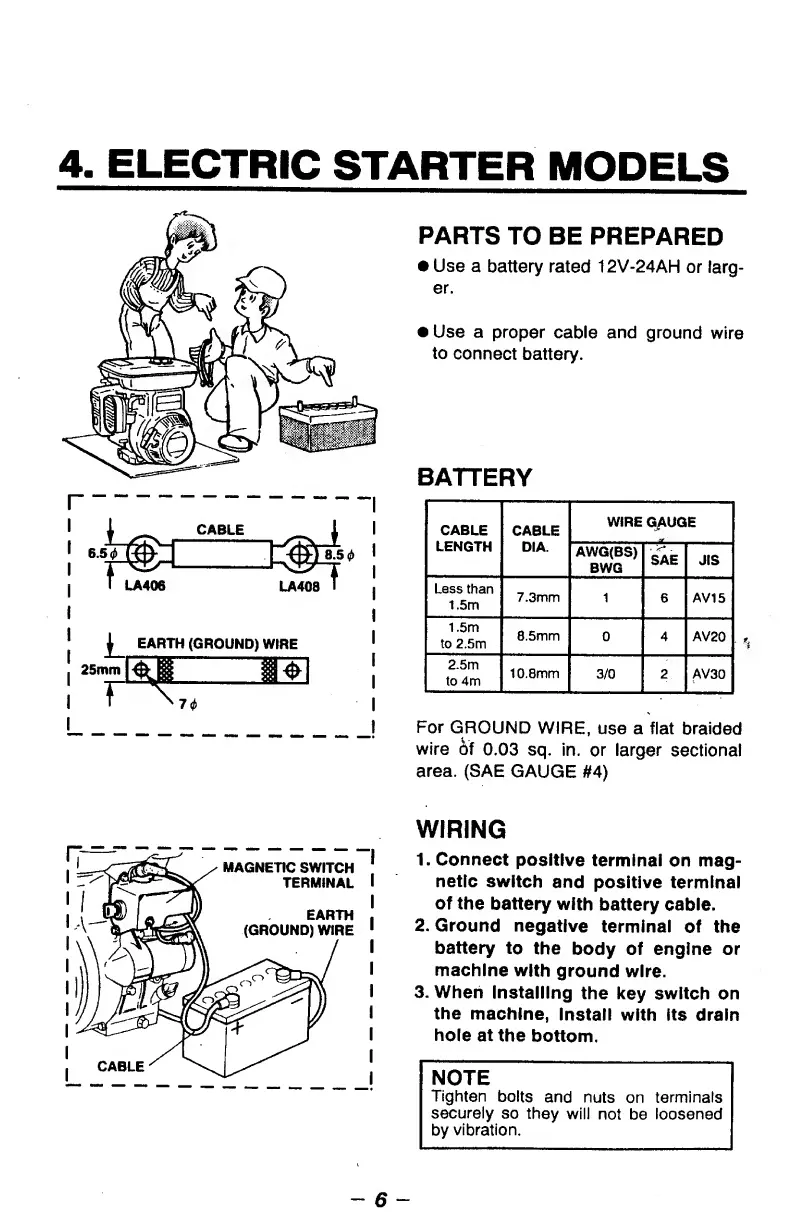

4.
ELECTRIC
STARTER
MODELS
PARTS
TO
BE
PREPARED
•
Use
a
battery
rated
12V-24AH
or
larg¬
er.
•
Use
a
proper
cable
and
ground
wire
to
connect
battery.
BATTERY
For
GROUND
WIRE,
use
a
flat
braided
wire
6f
0.03
sq.
in.
or
larger
sectional
area.
(SAE
GAUGE
#4)
WIRING
1.
Connect
positive
terminal
on
mag¬
netic
switch
and
positive
terminal
of
the
battery
with
battery
cable.
2.
Ground
negative
terminal
of
the
battery
to
the
body
of
engine
or
machine
with
ground
wire.
3.
When
installing
the
key
switch
on
the
machine,
Install
with
its
drain
hole
at
the
bottom.
NOTE
Tighten
bolts
and
nuts
on
terminals
securely
so
they
will
not
be
loosened
by
vibration.
