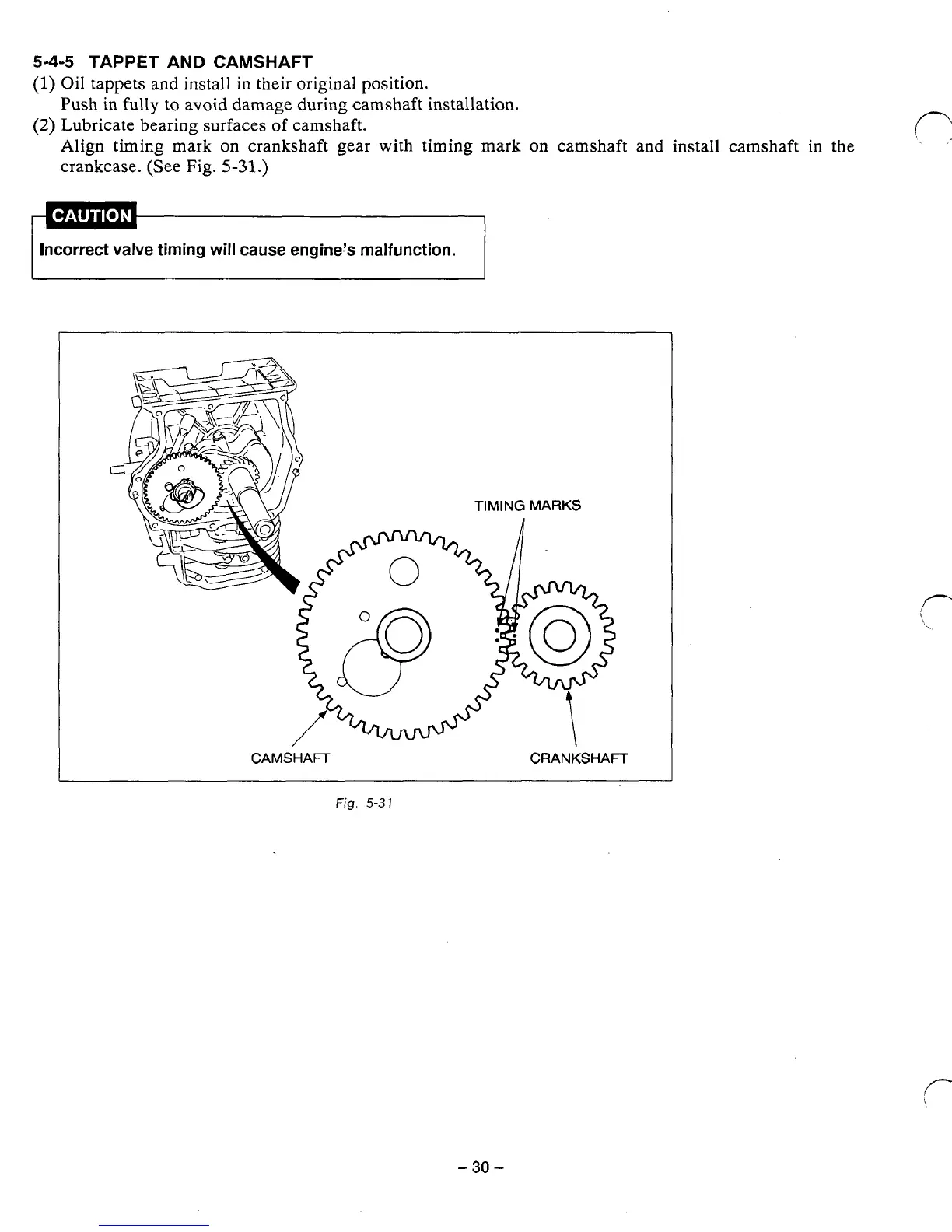

5-4-5
TAPPET
AND
CAMSHAFT
(1)
Oil tappets and install in their original position.
(2)
Lubricate bearing surfaces
of
camshaft.
Push
in
fully to avoid damage during camshaft installation.
Align timing mark
on
crankshaft gear with timing mark
on
camshaft and install camshaft
in
the
crankcase. (See
Fig.
5-31.)
r'
Incorrect
valve
timing will cause engine's malfunction.
CAMSHAFT
CRANKSHAFT
Fig.
5-3
1
-
30
-
