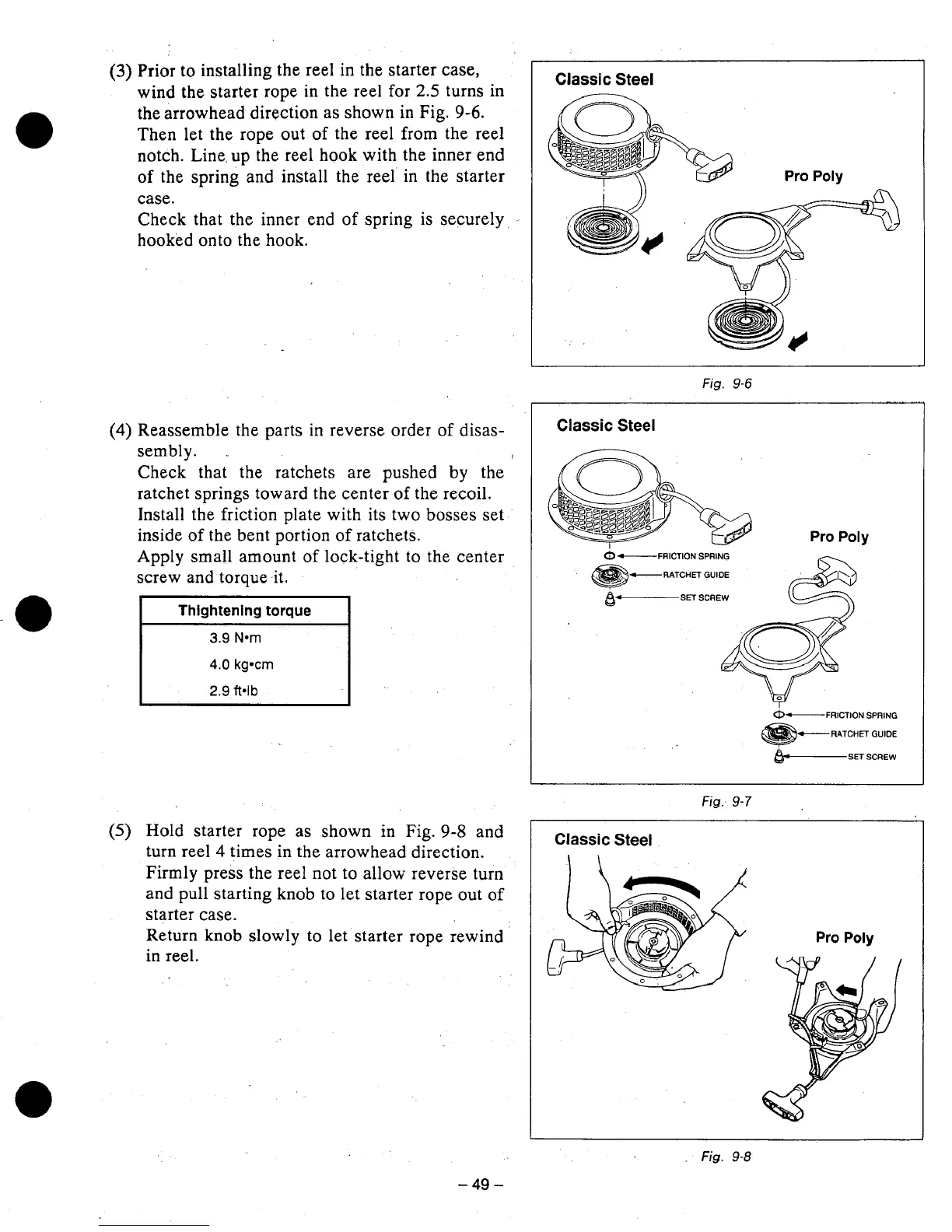

(3)
Prior to installing the reel in the starter case,
wind
the starter rope in the reel for
2.5
turns in
the arrowhead direction as shown in Fig.
9-6.
Then let the rope out
of
the reel from the reel
notch. Line, up the reel hook with the inner end
of the spring and install the reel in the starter
case.
Check that the inner end of spring
is
securely
hooked onto the hook.
(4)
Reassemble the parts in reverse order of disas-
sembly.
I
I
Check that the ratchets are pushed
by
the
ratchet springs toward the center
of
the recoil.
Install the friction plate with its two bosses set
inside of the bent portion
of
ratchets.
Apply small amount of lock-tight
to
the center
screw and torque it.
Thightening
torque
3.9
Nom
4.0
kg*crn
2.9
ft4b
(5)
Hold starter rope as shown
in
Fig.
9-8
and
turn reel
4
times
in
the
arrowhead direction.
Firmly press the reel not to allow reverse turn
and pull starting knob to
let
starter rope out
of
starter case.
Return knob slowly to let starter rope rewind
in
reel.
Fig.
9-6
Classic
Steel
Pro
Poly
C~-FRICTION
SPRING
-RATCHET GUIOE
&-SET
SCREW
0-FRICTION
SPRING
“RATCHET GUIDE
SET
SCREW
Fig.
9-7
Pro
Poly
Fig.
9-8
-49-
