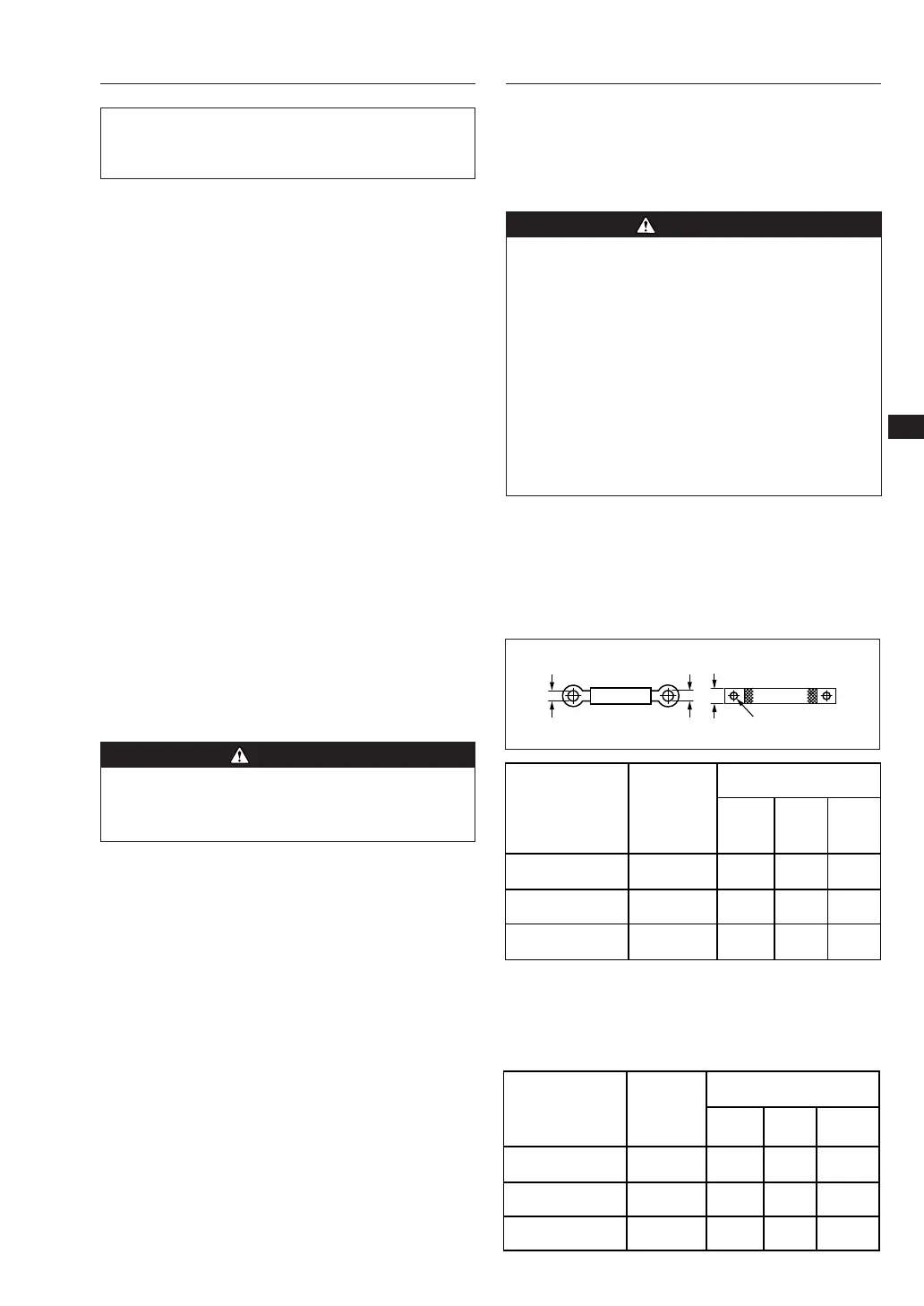

US
5
For electric starter operation, proper electric wiring
arrangements are needed before normal engine operation.
1. BATTERY
■
Use a battery rated 12V
-
24AH or larger.
4.
ELECTRIC STARTER MODELS
2. BATTERY CABLE
3. KEY SWITCH CABLE
Cable length Cable dia.
Wire gauge
AWG
(BS)
BWG
SAE JIS
Less than 1.5m 7.3 mm 1 6 AV15
1.5 m to 2.5 m 8.4 mm 0 4 AV20
2.5 m to 4 m 10.8 mm 3/0 2 AV30
■
Use a proper cable and ground wire to connect battery.
■
For GROUND WIRE, use a flat braided wire of 20 sq.
mm. or larger sectional area.
Cable length Cable dia.
Wire gauge
AWG
(BS)
BWG JIS
Less than 1.5 m 1.5 mm 14 16 AV1.25
1.5 m to 3 m 1.9 mm 12 14 AV2
3 m to 5 m 2.4 mm 10 13 AV3
3. PRE-OPERATION CHECKS
NOTE
Engine shipped from our factory is without oil.
Before starting engine, fill with oil. Do not over-fill.
1. CHECK ENGINE OIL (See Fig.
22
22
2)
Before checking or refilling engine oil, be sure the engine is
located on stable, level surface and stopped.
■
Do not screw the oil gauge into the oil filler neck to check
oil level. If the oil level is low, refill to the upper level with
the following recommended oil.
■
Use 4-stroke automotive detergent oil of API service
class SE or higher grade.
■
Select the viscosity based on the air temperature at the
time of operation as shown in the table. (See Fig.2
-
q)
OIL CAPACITY : EX13/17/21: 0.6 liter
EX27: 1.1 liter
Explanation of Fig.2
-
w
q Oil Gauge
w Upper Level
e Lower Level
2. CHECK FUEL (See Fig.
33
33
3)
■
Use unleaded automotive gasoline only.
Fuel Tank Capacity
EX13 : 2.7 liter / EX17 : 3.6 liter
EX21 : 3.6 liter / EX27 : 6.1 liter
■
Close the fuel cock before filling the fuel tank.
■
Do not fill above the top of the fuel filter screen (marked
w), or the fuel may overflow when it heats up later and
expands.
■
When filling the fuel tank, always use the fuel filter screen.
■
Wipe off any spilled fuel before starting the engine.
(See Fig.3
-
w)
Do not refuel while smoking, near an open flame
or other such potential fire hazards. Otherwise
fire accident may occur.
WARNING
If a remote key switch is used, select wires of proper gauge
to connect it and magnetic switch of the engine.
LA406 LA406
CABLE
EARTH(GROUND)WIRE
25mm
6.5φ
7φ
6.5φ
■
Battery electrolyte contains sulphuric acid. Protect
your eyes, skin and clothing. In case of contact, flush
thoroughly with water and get prompt medical
attention, especially if your eyes are affected.
■
Batteries generate hydrogen gas, which can be
highly explosive. Do not smoke or allow flames or
sparks near a battery, especially during charging.
■
Charge the battery in a fully ventilated location.
■
Be sure to confirm Battery polarity. Connect positive
(+) terminal first when mounting battery, and
disconnect negative (
-
) terminal first when
dismounting.
WARNING
