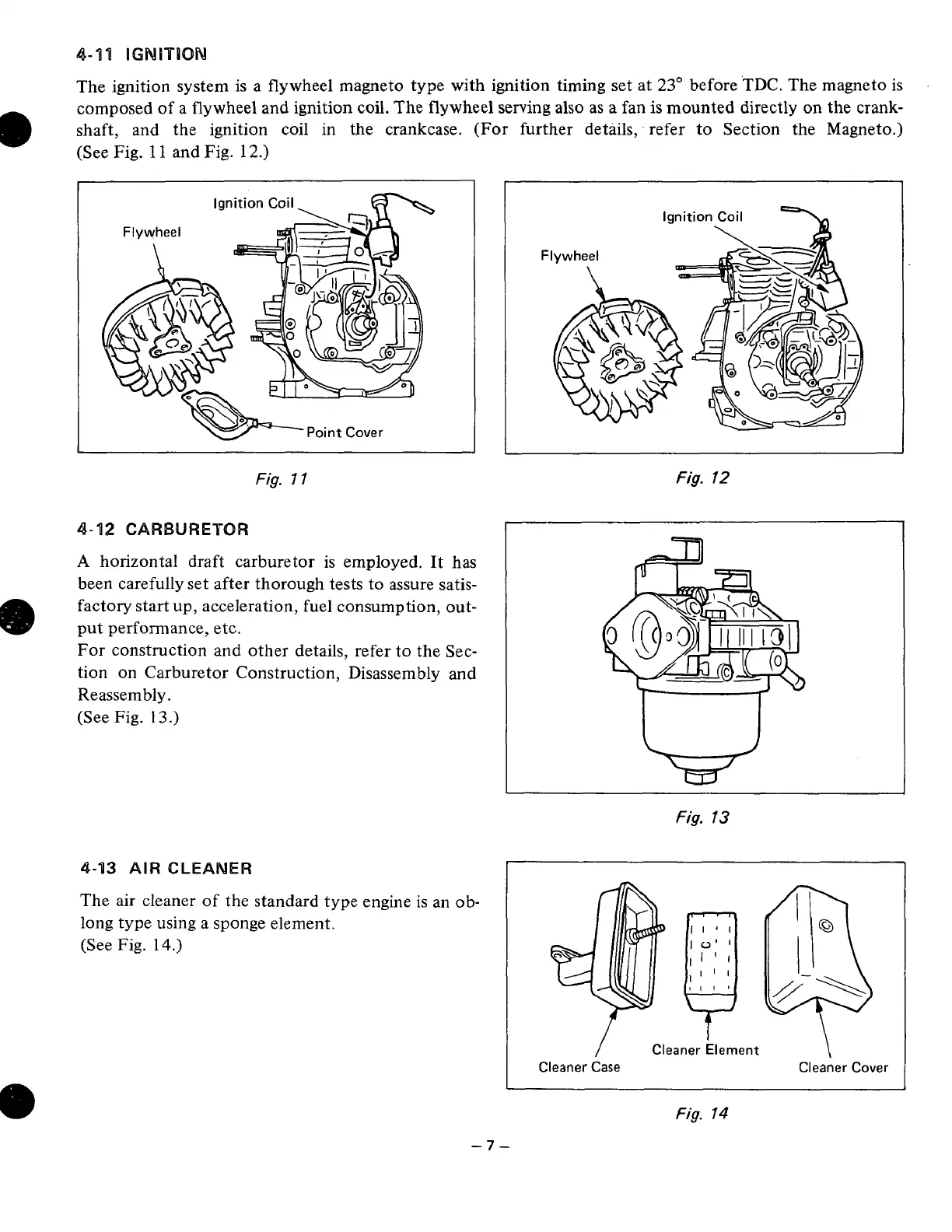

4-
11 11
IGNITION
The ignition system
is
a flywheel magneto type with ignition timing set at
23"
before TDC. The magneto is
composed
of
a
flywheel
and
ignition coil. The flywheel serving
also
as
a
fan is mounted directly
on
the crank-
e
shaft, and the ignition coil in the crankcase. (For further details,
'
refer to Section the Magneto.)
(See Fig.
11
and
Fig.
12.)
Fig.
1
1
4-112
CARBURETOR
A
horizontal draft carburetor is employed. It has
been carefully set after thorough tests to assure satis-
factory start up, acceleration, fuel consumption, out-
put performance, etc.
For construction and other details, refer to the Sec-
tion on Carburetor Construction, Disassembly and
Reassembly.
(See Fig.
13.)
4-93
AIR
CLEANER
The air cleaner
of
the standard type engine
is
an ob-
long type using a sponge element.
(See
Fig.
14.)
Fig.
12
Fig.
13
/
Cleaner Element
Cleaner Case Cleaner Cover
Fig.
14
