Robin EY20 Service Manual

D

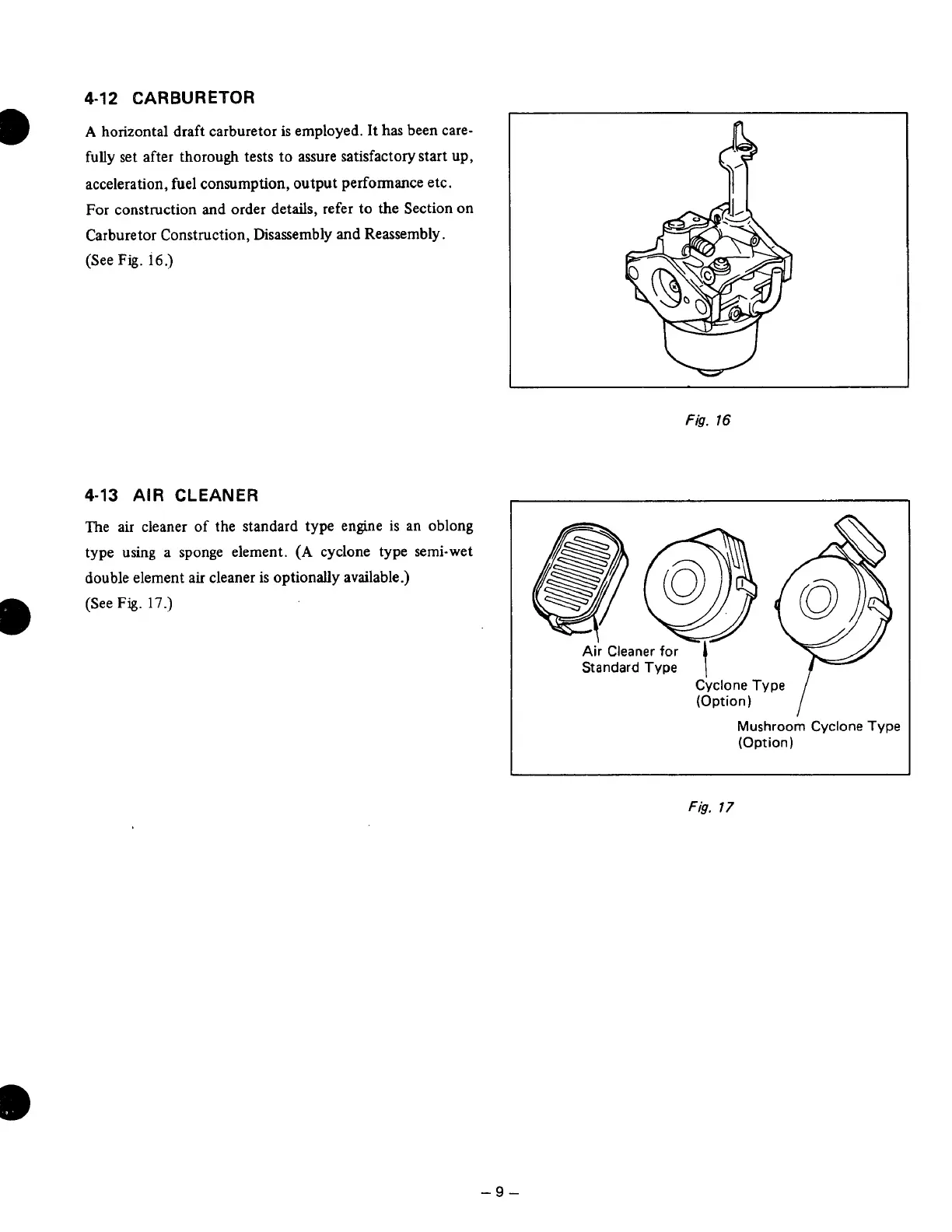

4-12 CARBURETOR
A horizontal draft carburetor is employed. It has been care-
fully set after thorough tests to assure satisfactory start up,
acceleration, fuel consumption, output performance etc.
For construction and order details, refer to the Section on
Carburetor Construction, Disassembly
and Reassembly.
(See
Fig. i6.)
4-13 AIR CLEANER
The air cleaner of the standard type engine is an oblong
type using a sponge element.
(A cyclone type semi-wet
double element air cleaner is optionally available.)
m
(See Fig. 17.)
Fig. 16
Air Cleaner for
Standard Type
Cyclone Type
(Option)
Mushroom Cyclone Type
(Option)
Fig. 17
-9-

Robin EY20 Specifications

General

Ignition System	Transistorized magneto
Starting System	Recoil starter
Fuel	Unleaded gasoline
Oil Capacity	0.6 liters
Displacement	183 cc
Bore x Stroke	67 x 52 mm
Dry Weight	15 kg
