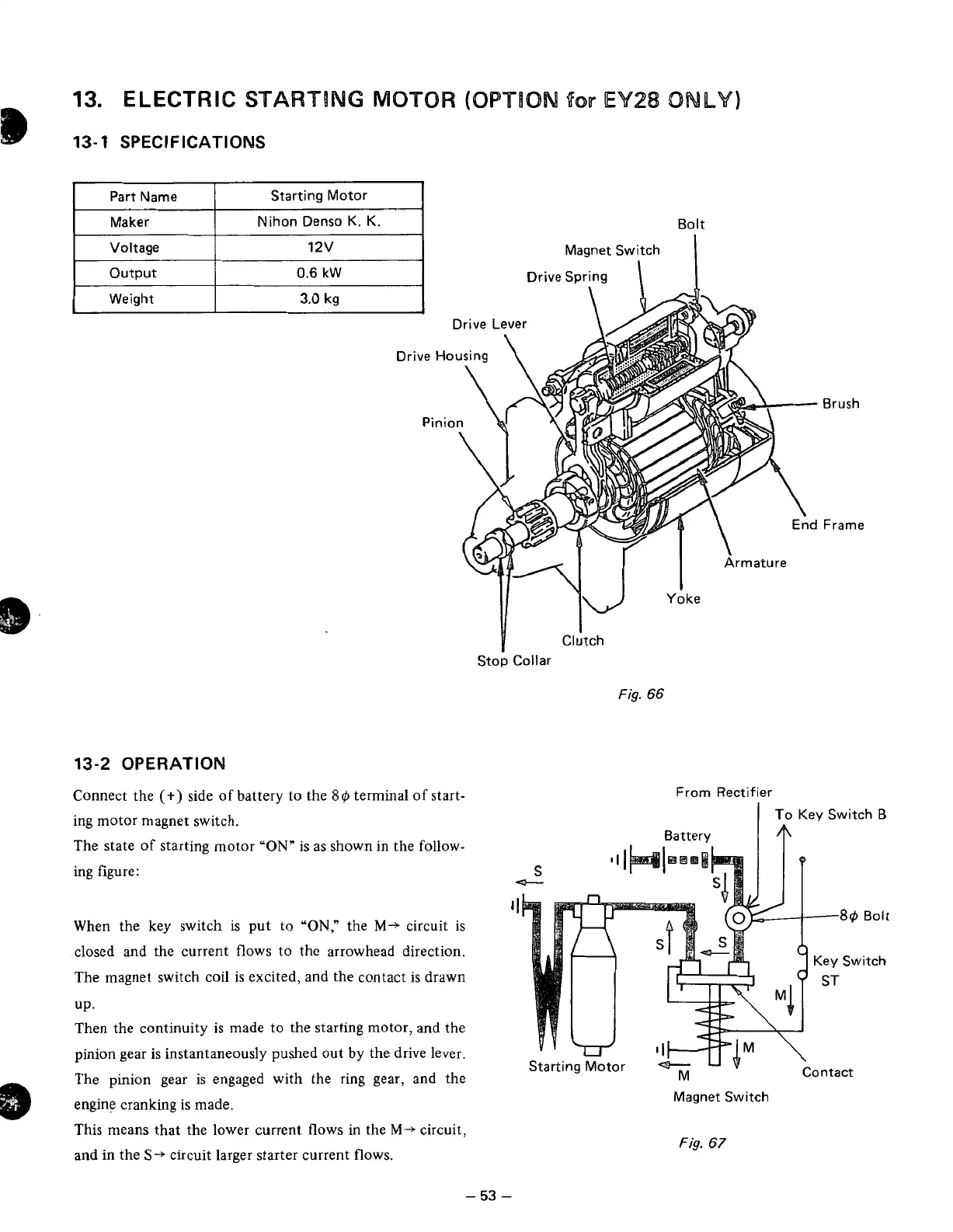

13.
ELECTRIC
SBA
TBNG
MOTOR
(OPVBO
for
EV28
ONLY)
13-1
SPECIFICATIONS
Part Name
Nihon Denso
K.
K.
Bolt
Maker
Starting Motor
12v
Voltage
output
3.0
kg
Weight
0.6
kW
Drive Lever
Stop
Collar
13-2
OPERATION
Connect the
(t)
side
of
battery to the
8$
terminal
of
start-
ing motor magnet switch.
The state
of
starting motor
“ON”
is as shown in the follow-
ing figure:
When the key switch is put to
“ON,”
the
M+
circuit is
closed and the current flows
to
the arrowhead direction.
The magnet switch coil is excited, and the contact
is
drawn
UP.
Then the continuity
is
made to the starting motor, and the
pinion gear
is
instantaneously pushed out
by
the drive lever.
The pinion gear is engaged with the ring gear, and the
engine cranking is made.
This means that the lower current flows in the
M+
circuit,
and
in
the
S-+
circuit larger starter current
flows.
Fig.
66
From Rectifier
1
Key Switch
B
Battery
Magnet Switch
Fig.
67
-
53
-
