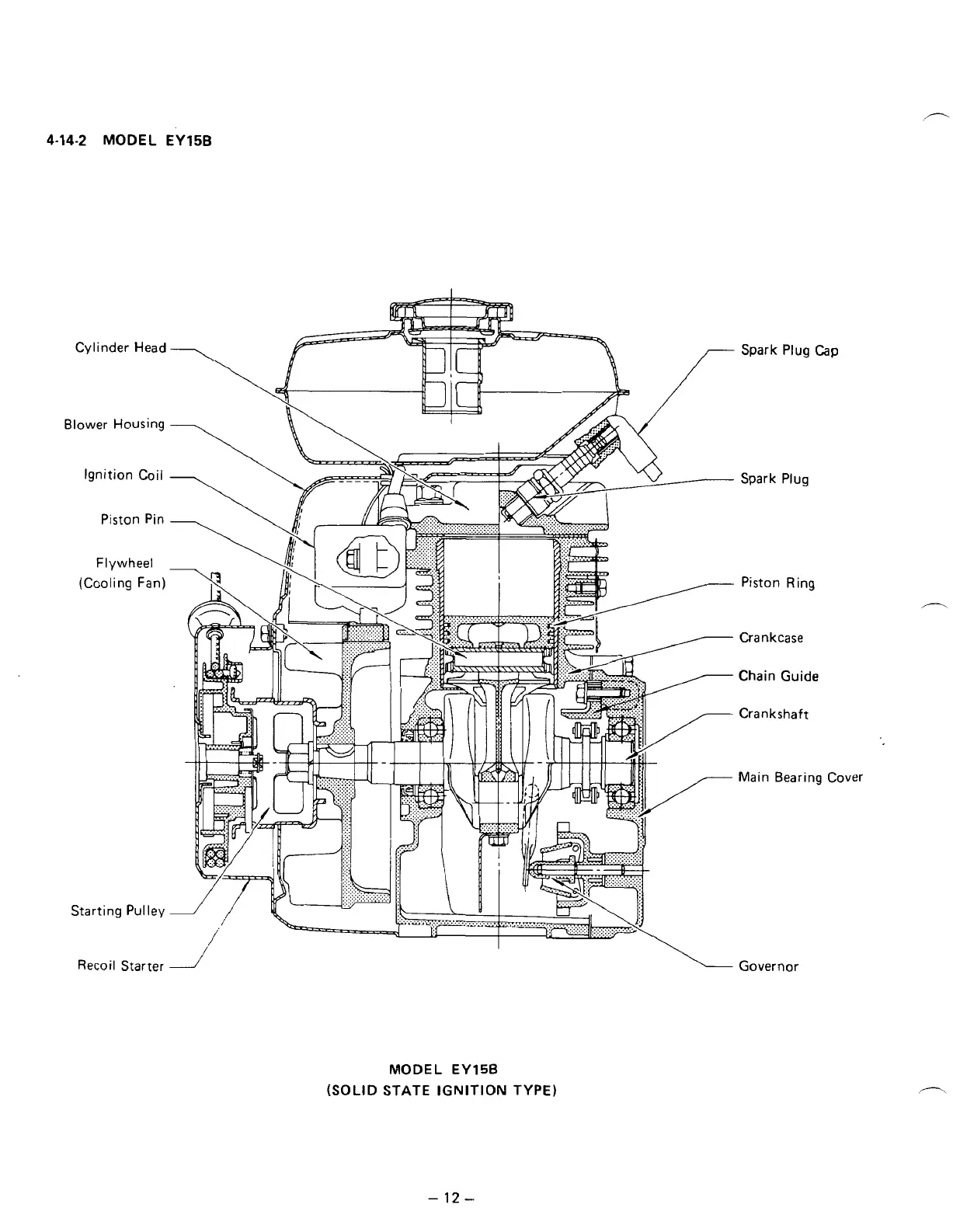

4-14-2
MODEL
EY15B
Cvlinder Head
Blower Housing
Ignition
Coil
Piston Pin
Flywheel
(Cooling Fan)
Starting Pulley
Recoil
Starter
--/
L
MODEL
EY15B
(SOLID STATE
IGNITION
TYPE)
Spark Plug Cap
Spark Plug
Piston Ring
Crankcase
Chain Guide
Crankshaft
Main Bearing Cover
Governor
-
12
-

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Robin EY20 and is the answer not in the manual?

Robin EY20 Specifications

General IconGeneral
Ignition SystemTransistorized magneto
Starting SystemRecoil starter
FuelUnleaded gasoline
Oil Capacity0.6 liters
Displacement183 cc
Bore x Stroke67 x 52 mm
Dry Weight15 kg
