Robin EY20 Service Manual

Order I Item
Remarks
Tool 1
Procedunx
8
(1) Remove the governor lever from the
Governor lever
and the relative
6$1 x 25 mm bolt: 1 pce.
parts
governor lever shaft.
(2) Remove the governor rod and rod
spring from the carburetor.
Just loosen the bolt,
out the bolt.
or 10 mm spanner
unnecessary to take
10 mm box spanner
9
(1) Remove the carburetor from the cylinder
Carburetor
~ ~~
portion of the crankcase.

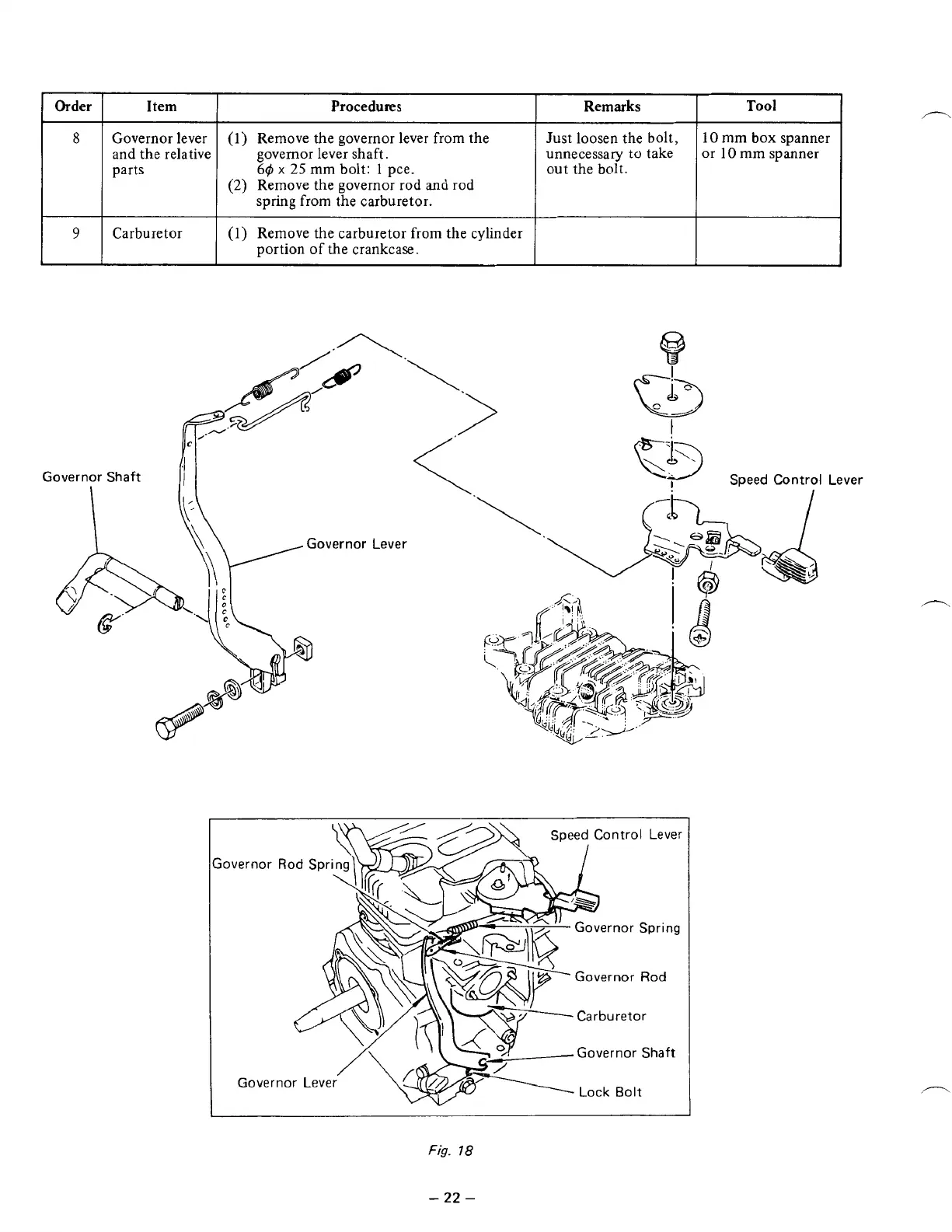

Fig. 18
Lever
- 22 -

Robin EY20 Specifications

General

Ignition System	Transistorized magneto
Starting System	Recoil starter
Fuel	Unleaded gasoline
Oil Capacity	0.6 liters
Displacement	183 cc
Bore x Stroke	67 x 52 mm
Dry Weight	15 kg
