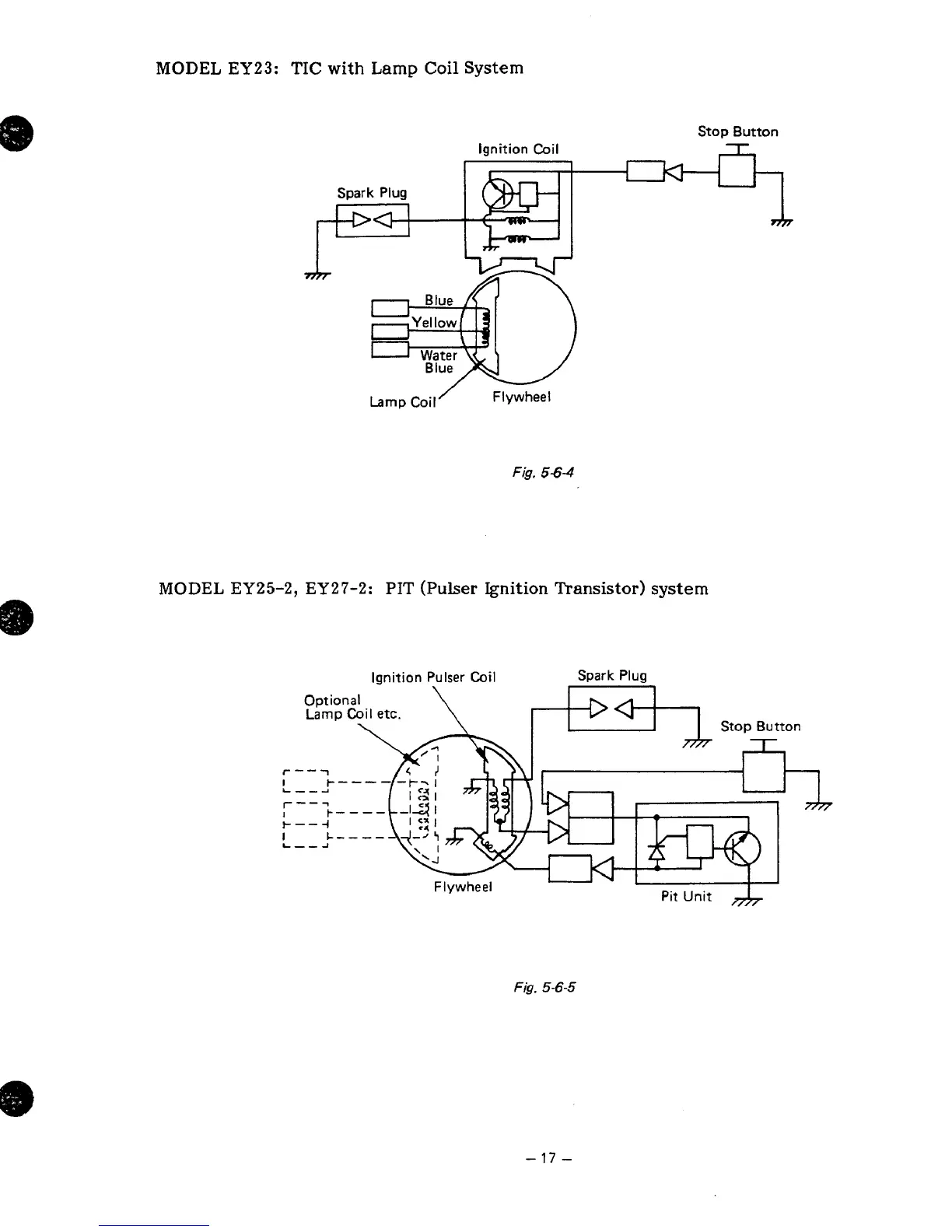

MODEL EY23: TIC with Lamp Coil System
Stop Button
Ignition Coil
Spark Plug
77!7
Lamp Coil / Flywheel
Fig. 5-64
MODEL EY25-2, EY27-2: PIT (Pulser Ignition Transistor) system
Ignition Pulser Coil Spark Plug
\ I 1
Optional
Lamp Coil etc.
Stop Button
Flywheel
Fig. 5-6-5
