5-6-2 CELL START
The wiring is
as shown in the figure below. The section, in the figure, described with dotted ,~
lines is normally not prepared in the engine side.
MODEL EY18-3, EY25-2, EY27-2: Point with Cell System
Magneto Black
Spark
Plug a
Black
Starting Motor Magnetic Switch
7777

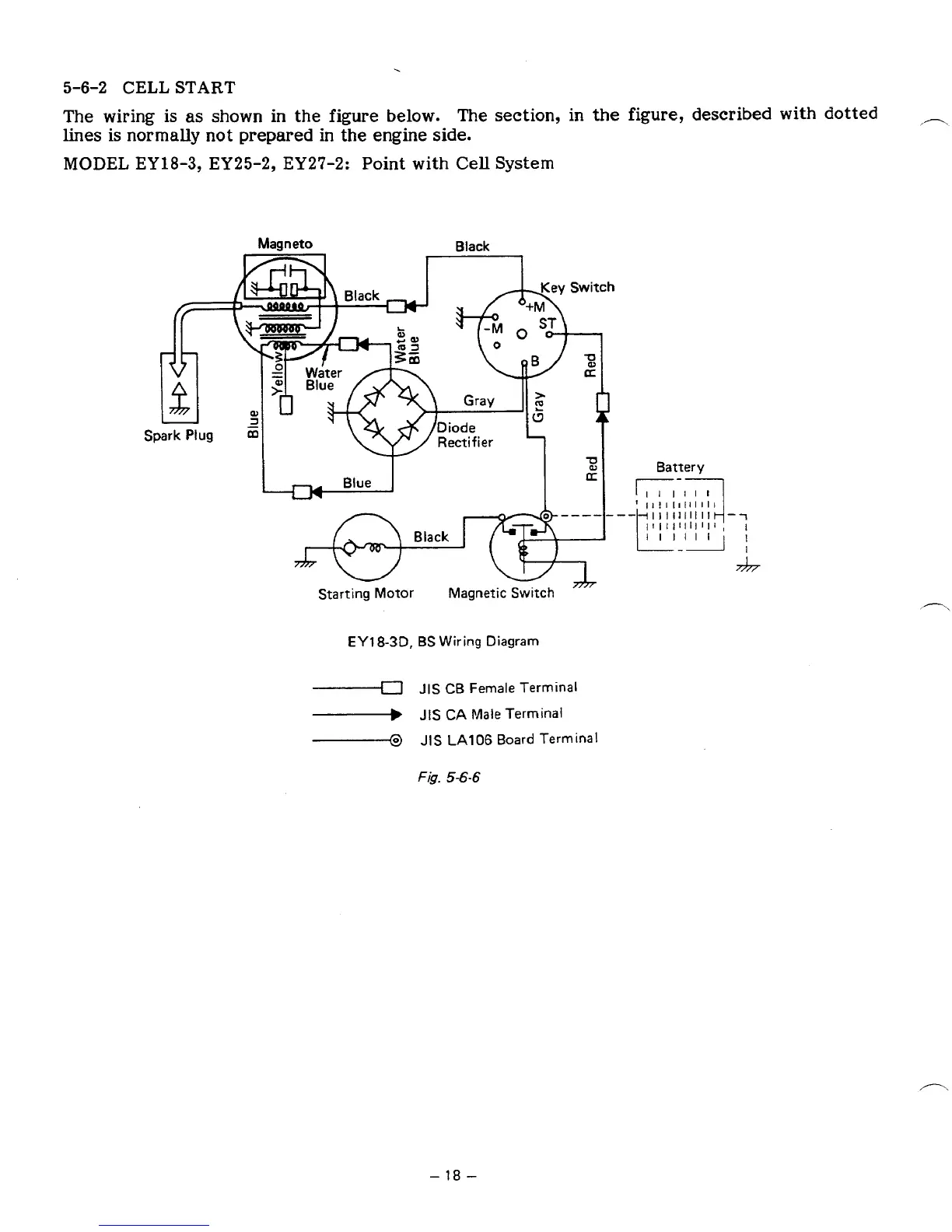

EY18-3D, BS Wiring Diagram
JIS CB Female Terminal
- JIS CA Male Terminal
8 JIS LA106 Board Terminal
- 18 -
