− 16−
Up to 20A
Up to 30A
Up to 20A
NEMA
L5-20R
NEMA
L5-30R
NEMA
L14-20R
NEMA
L5-20P
NEMA
L5-30P
NEMA
L14-20P
Duplex Receptacle
(REC1)
Locking Receptacle
(REC2)
Locking Receptacle
(REC3)

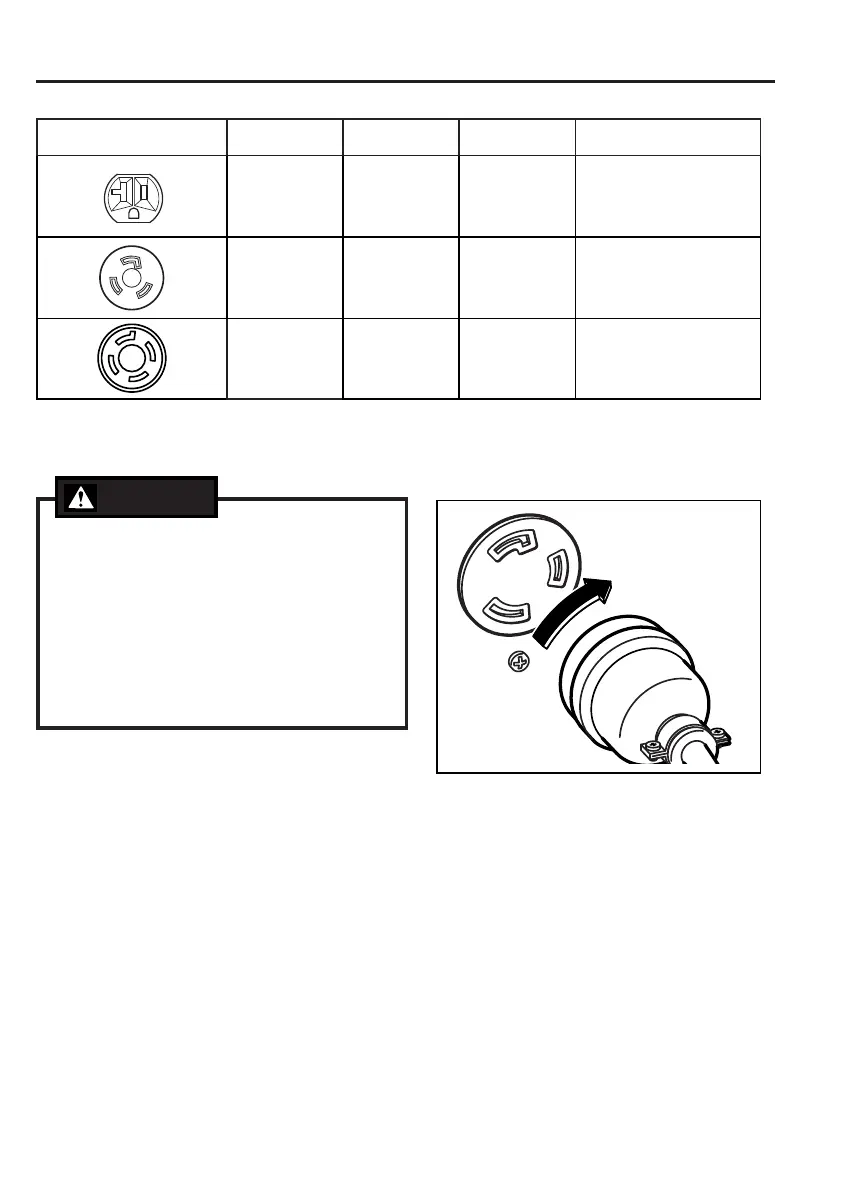

Style Ampere Receptacle AC plug Description
TABLE 1
NOTE :
When the no-fuse breaker turns off during operation, the generator is over loaded
or the appliance is defective. Stop the generator immediately, check the appliance
and / or generator for overloading or detect and have repaired as necessary by
dealer or service shop.
■
To take power out from the TWIST
LOCK RECEPTACLE, insert the
plug into the receptacle, and turn
it clockwise to the lock position.
■
Be sure to ground the generator if
the connected electrical device is
grounded.
WARNING
TWIST
