5. Remotely controllable functions
Virtual colour wheel
This wheel contains 66 preset colours, rainbow e󰀨ect in both directions is available.
Colour temperarature correction (CTC)
This channel allows to set calibrated white colour from range of 8000K-2700K.
RGBW or CMY colour mixing system
The RGBW colour mixing system is based on red, green, blue and white high power LEDs. Option for switching
the xture to the CMY colour mixing system is available.
Colour Mix control
The Colour Mix control channel denes relation between global colours (RGBW, CTO, Virtual colour wheel)
and individual RGB pixels or Kling-Net.
Global = Global Colours (RGBW, CTO, Virtual Color Wheel)
Pixel = Pixel Colors (RGB individual pixels or Kling-Net)
DMX value Function
0-9 Global colours (Global has priority)
10-19 Maximum mode (highest values have priority)
20-29 Minimum mode (lowest values have priority)
30-39 Multiply mode (multiply Global and Pixel)
40-49 Addition mode (Global + Pixel) - default
50-59 Subtraction mode (Global – Pixel)
60-69 Inverted Subtraction mode (Pixel – Global)
70-79 Coloured background
80-127 Reserved
128 Global colours (Global has priority)
129-254 Crossfade (crossfade between Global and Pixel)
255 Pixel colours (Pixel has priority)
E.g. If you wish to control RGBW channels, set the Colour Mix Control channel to 0 DMX, if you
need to use pixel e󰀨ects, set the Colour Mix Control channel to 255 DMX.
Flower E󰀨ect
The ower e󰀨ect rotating in both directions allows to create many dynamic e󰀨ects.
Zoom
Motorized zoom o󰀨ers beam range of 4° to 50°.
Pixel control and pixel e󰀨ects
19 RGB pixels allow you to create many e󰀨ects or use 90 pre-dened pixel e󰀨ects

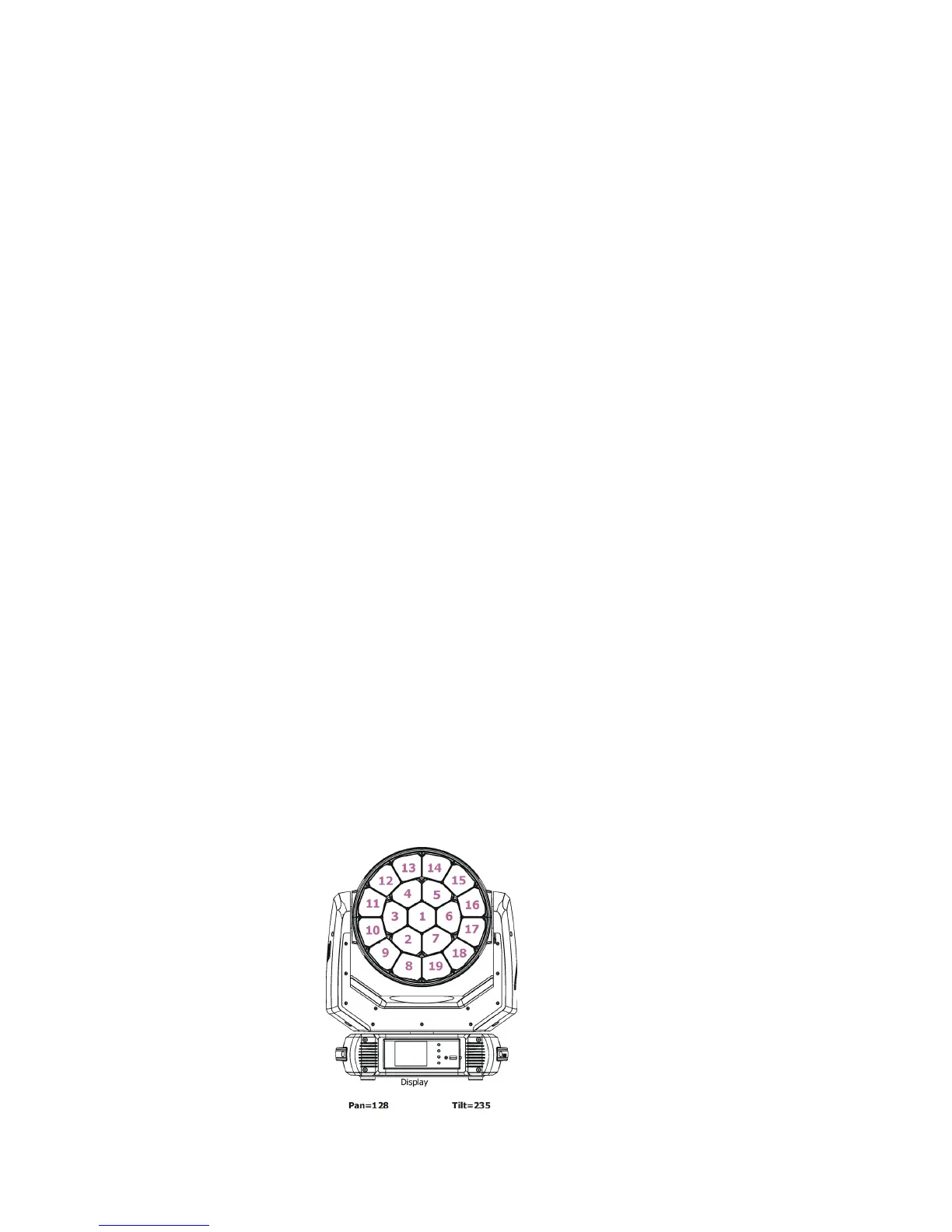

Pixel order:
Dimmer/Shutter unit
Smooth 0 - 100 % dimming is provided by the electronic control unit. This unit is also used for strobe e󰀨ects
with variable speed.
