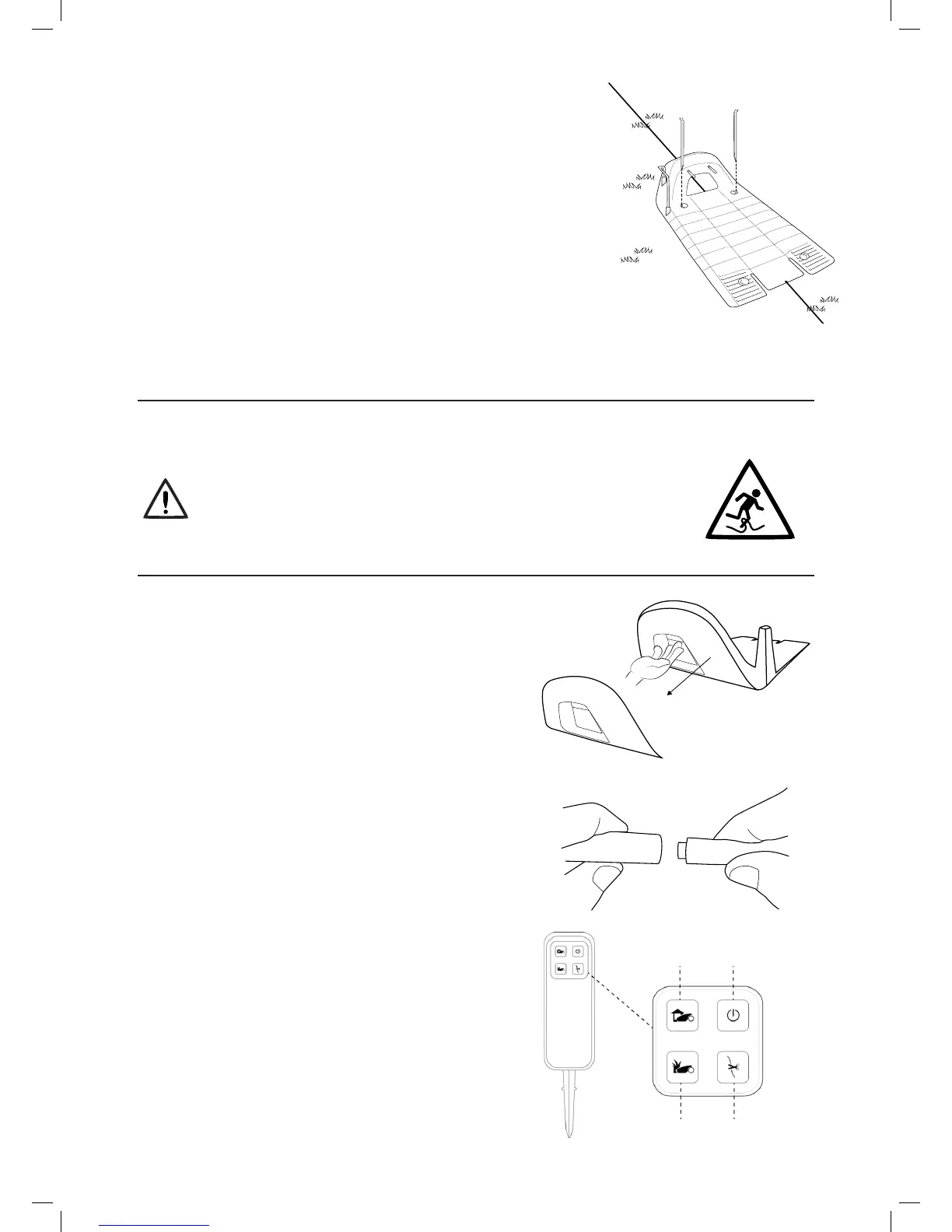

o After the Base Station has been positioned, insert
2 stakes into the Base Station holes as shown in the
gure to the right. Only after the Base Station position
will be tested, will you insert the 2 remaining stakes.
Laying and Fastening Extension Cable
Safety – Avoid injury!
The Extension Cable from the Power Box to the Base Station should
be securely fastened to the ground! It should never present a tripping
hazard.
The Extension Cable should cross ONLY over soft surfaces .
It should not cross over hard surfaces (e.g. Sidewalk, driveway) where it
cannot be securely fastened.
o The 15m (50 ft.) Extension Cable is already
attached to the Base Station Head, but if you
need to disconnect it for any reason, remove
the Base Station Head as shown in the gure
to the right:
4.7 At the Power Box Location:
• Connect the DC Cable from the Power Box to
the 15 m (50 ft.) Extension Cable.
• Connect the Power Box to a regular power
outlet (230V / 120V).
• The Docking Indicator (1) will light up if
the mower is in the Base Station.
• The Operating Indicator (3) will light up
if the mower is not in the Base Station.
Docking Indicator
Operating Indicator Wire Indicator
On/Off Button
