4.3.3 Setting a Narrow Pass
ANarrowPassisdenedasapaththatconnectstwozonesofthelawn.ThepathenablesRobomowtodrive
between the zones while following the wire, but prevents the mower from crossing between them while mowing
the inner area of the zones. The pass has to be at least 1.2 m (4 ft.) wide to allow Robomow to drive through it.
If the pass is wider than 2 m (6.5 ft.),
There is NO need for any special setting of the Perimeter Wire. Skip to section 4.3.4. Otherwise, you need to follow
the instructions given below in order to set up a Narrow Pass.
Scan the code to view a video explaining how to
set a narrow pass

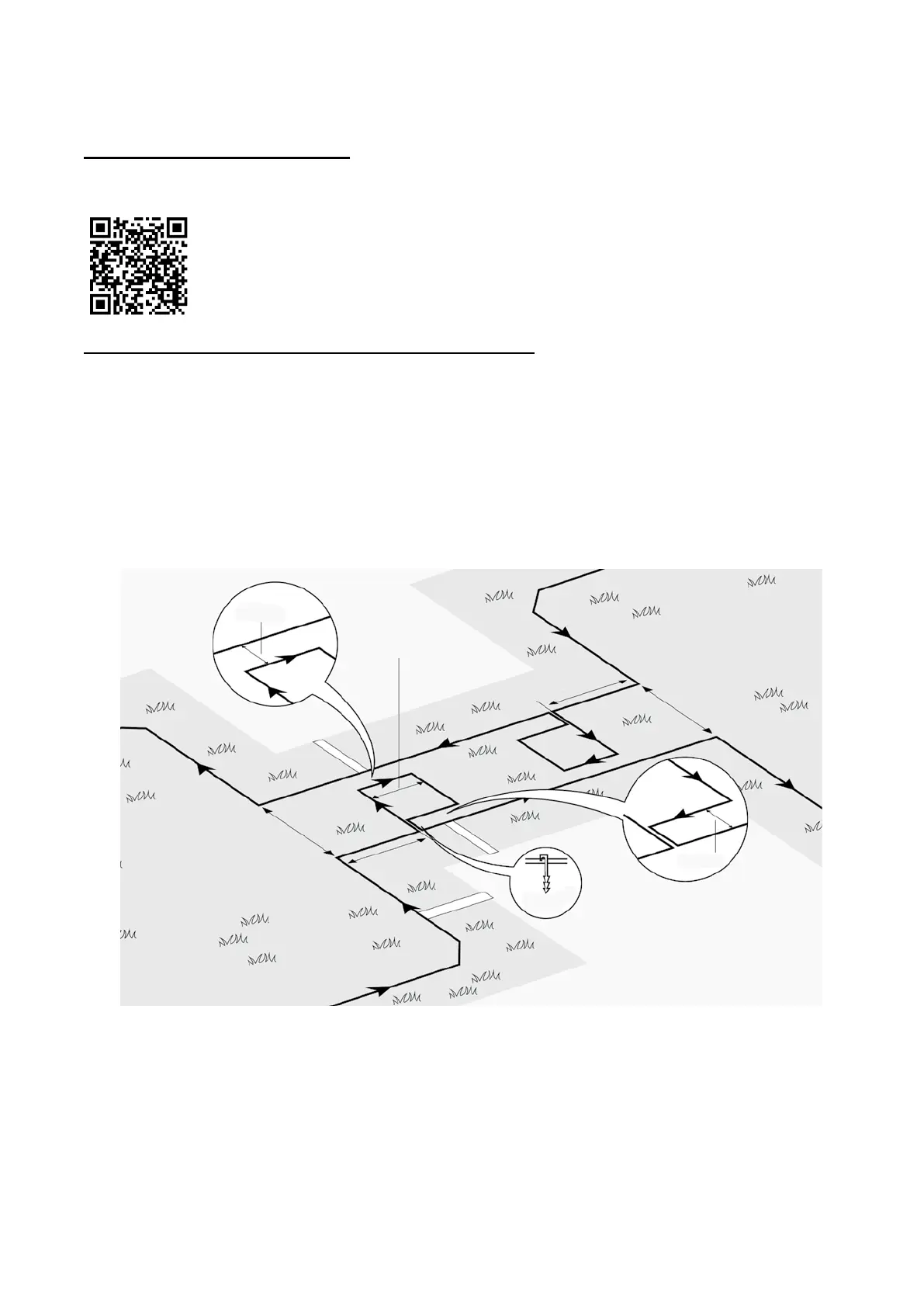

If the passage is NARROWER than 1.5m and longer then 2m,
the following wire installation needs to be done – “dual-square installation”:
1. DenetheentrytotheNarrowPass–thepointyouwantthemowertostartdrivingtowardstheSub-Zone.
2. 50 cm (20 inches) from the Narrow Pass entry, set a Perimeter Island (refer to 4.3.2) as shown in the picture
above.
3. Continue to lay the wire along the edge at a proper distance (depending on the edge type) until coming back
to the Narrow Pass entry from the Sub-Zone side.
4. Measure 50cm (20 inches) from that point and lay another Perimeter Island with the same dimensions.
5. After completing the setup of the wire in the Sub-Zone, make sure you keep 10 cm (4 inches) between the wire
and the islands on the way back to the Main Zone.
10cm
10cm
2 Wires under
same peg
28cm
Sub-Zone
Main-Zone
50cm
50cm
Min. 50cm
The above setup allows Robomow to drive along the wire to reach the Sub-Zone. However, while mowing each
zone individually, it will not cross over to the other zone.

Robomow RC304u Specifications

General

Type	Robotic lawn mower
Noise level	69 dB
Cutting width	280 mm
Grass catcher	-
Product color	Green
Cutting system	Rotary blades
Number of wheels	3 wheel(s)
Maximum working climb	36 %
Recommended lawn area	500 m²
Maximum cutting height	60 mm
Minimum cutting height	15 mm
Grass collecting volume	- L
Cutting clearance adjustment	6
Battery type	Built-in
Power source	Battery
Charging time	0.83 h
Battery voltage	26 V
Battery capacity	2.4 Ah
Battery life (max)	50 min
Battery technology	Lithium
Power consumption per month (max)	11 kWh

Weight and Dimensions

Depth	460 mm
Width	630 mm
Height	210 mm
Weight	11400 g
