Robomow RC304u Operation And Safety Manual

27
EN

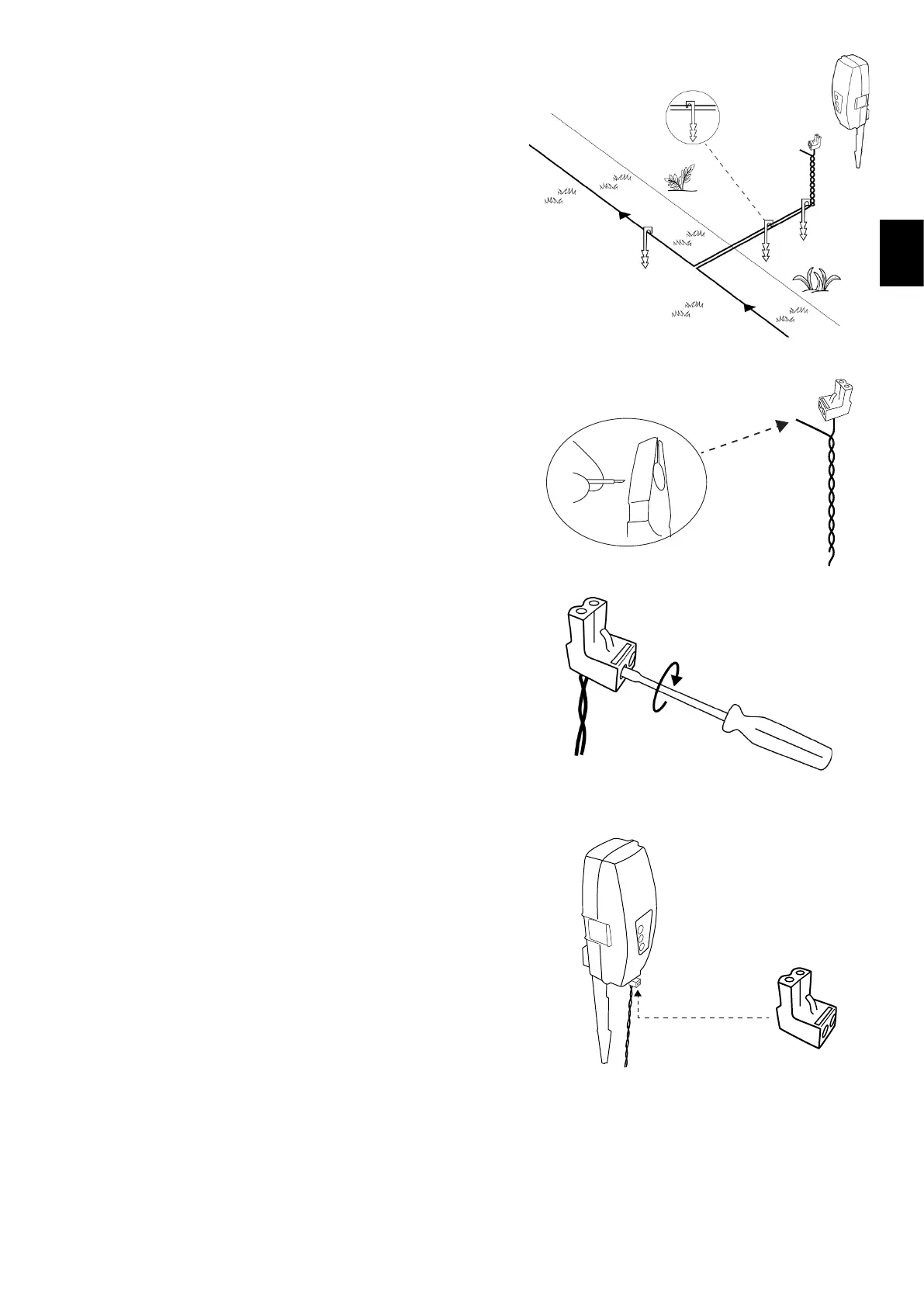

• Once completing the Perimeter Wire loop, lay the wire back
towards the Perimeter Switch.
• At the end of the Perimeter Wire loop, you have now
two wires. Lay the two loose wires in the direction of the
Perimeter Switch location and peg them to the ground using
a single peg for both.
4.8.4 At the Perimeter Switch’s location:
• Trim the ends of the loose wire to equal length and twist
them together.
• Strip 5mm (0.2 inches) of insulation from the wire without
the plot connector.
• Insert this wire end into the free hole in the connector and
tighten the screws.
• Plug the perimeter wire connector into the Perimeter Switch.
2 wires under the
same peg
Smallatscrewdriver

Robomow RC304u Specifications

General

Type	Robotic lawn mower
Noise level	69 dB
Cutting width	280 mm
Grass catcher	-
Product color	Green
Cutting system	Rotary blades
Number of wheels	3 wheel(s)
Maximum working climb	36 %
Recommended lawn area	500 m²
Maximum cutting height	60 mm
Minimum cutting height	15 mm
Grass collecting volume	- L
Cutting clearance adjustment	6
Battery type	Built-in
Power source	Battery
Charging time	0.83 h
Battery voltage	26 V
Battery capacity	2.4 Ah
Battery life (max)	50 min
Battery technology	Lithium
Power consumption per month (max)	11 kWh

Weight and Dimensions

Depth	460 mm
Width	630 mm
Height	210 mm
Weight	11400 g
