13
While the picture shows
two wires separate, they
should be adjacent
Maximum length of wire
connected to the Base Station
in one loop is 500m (1650ft)
Base Station
Base Zone
Zone A
Zone B

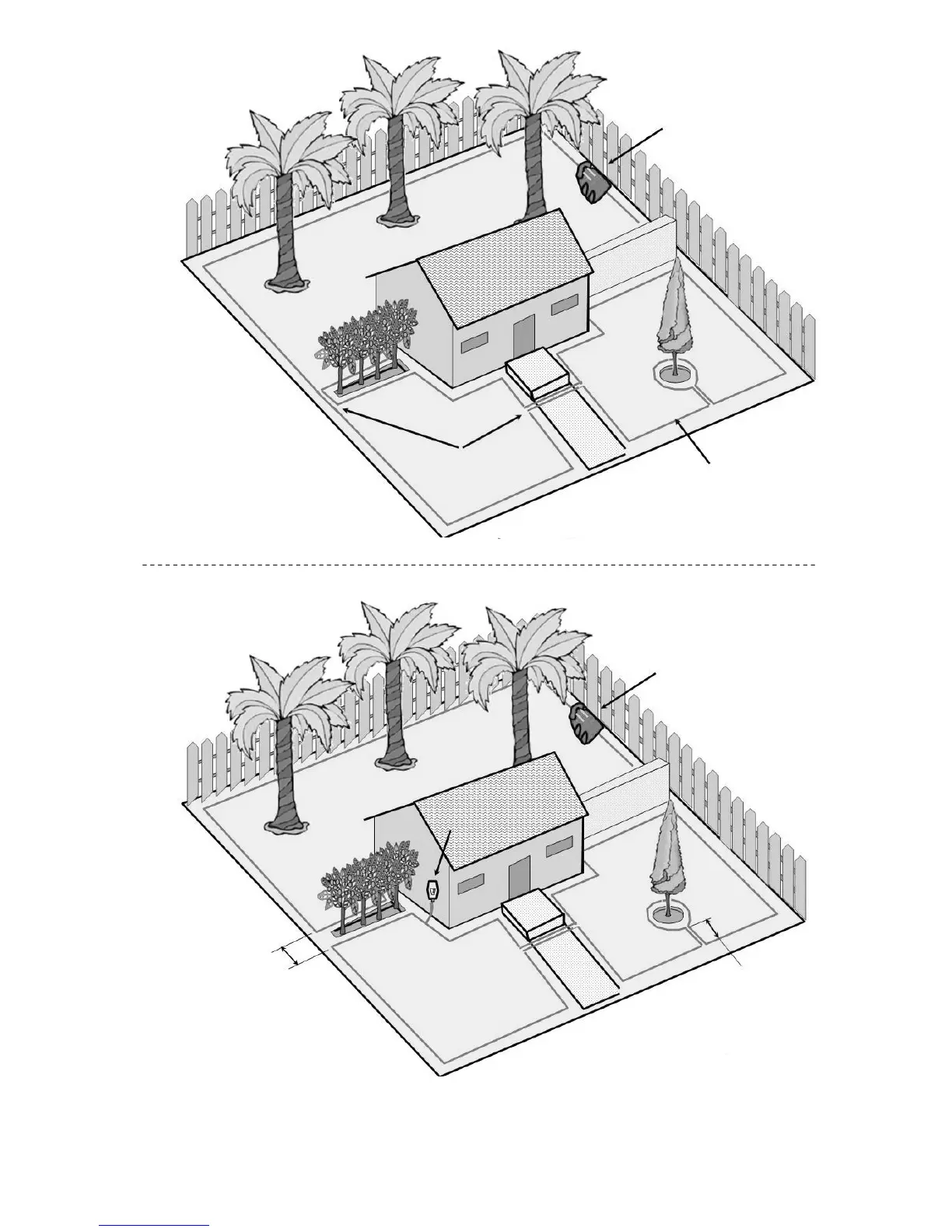

Figure 1.4 (Option A)
Three zones are looped
together and connected
to the Base Station
Figure 1.5 (Option B)
Separated zones, where grass
areas are not contiguous
Distance between
wires is larger
than 1m (3ft)
Distance greater
than 1m (3ft)
Base Station
Base Zone
Zone A
Zone B
