1.5 Robomow Preparation and Settings
1.5.1 Setting the Cutting Height
 Lift the Bumper Cover from the front side of the Robomow (figure 1.25).
 To change the cutting height, rotate the cutting height adjustment knob, as shown in figure 1.26.
1.5.2 Inserting Batteries Fuse
 Your Robomow is shipped with the batteries fuse
removed and it will not operate without it. The fuse is
assembled inside its rubber cover, located under the
Bumper Cover (Figure 1.27).
 Lift the Bumper Cover, remove the partition and insert
the fuse. The fuse can be inserted in either direction.
See figure 1.27
 Robomow will now power up (wake up). The Batteries
are charged at the factory and have plenty of power to
perform the initial setup and test run. However, after the
initial set-up process is completed the batteries need to
be charged 16 hours in the Base Station before the first
operation.
Figure 1.24 -
Base Station
Operating Panel
Flashing light
indicates the s
y
stem
Discontinuous beeps indicate
poor splicing of perimeter wires
or
p
erimeter wire
,
which is too
Continuous beeps indicate a
disconnected
/
broken wire

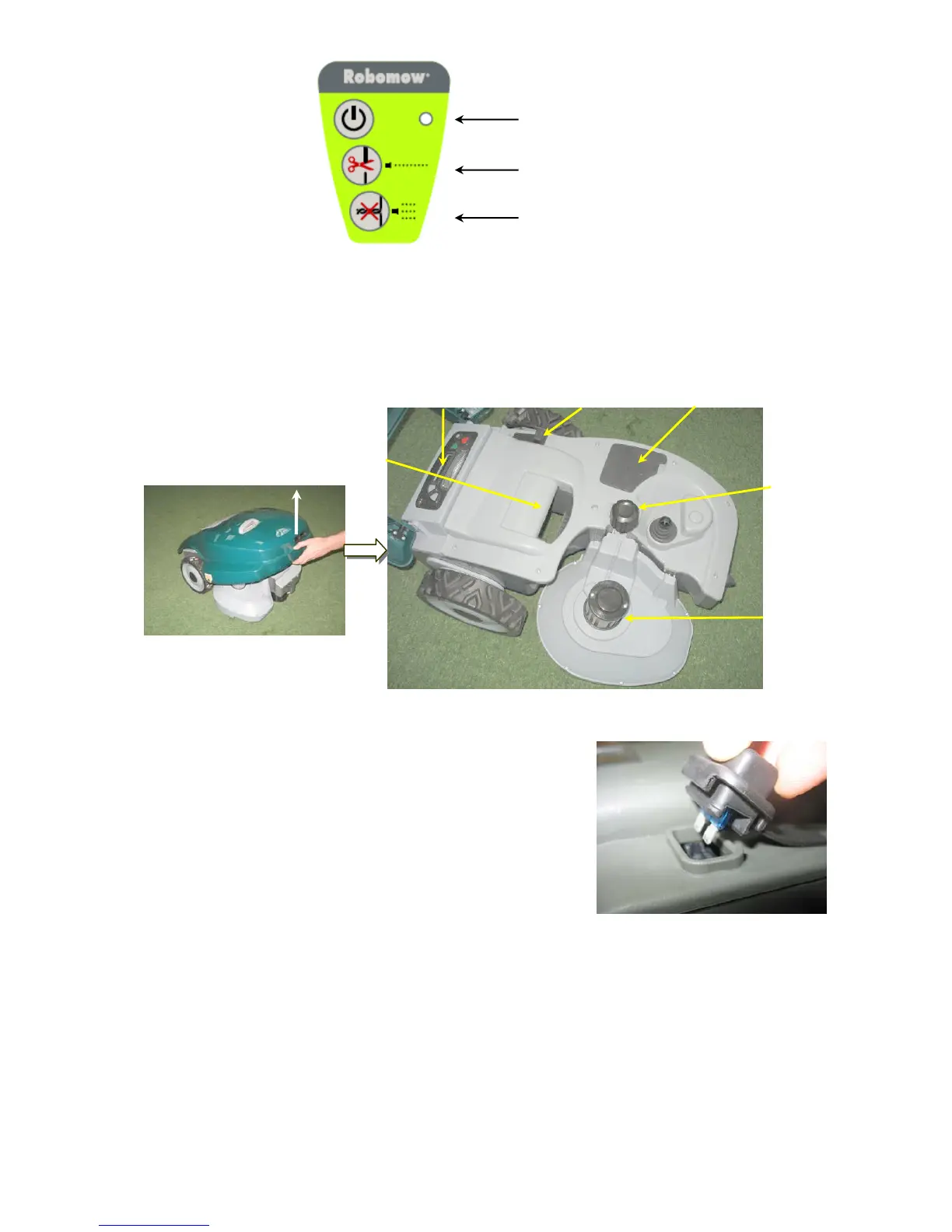

Figure 1.25 -
Lifting the Bumper Cover
Figure 1.27 -
Inserting batteries fuse
Cutting height
adjustment
knob
Mowing
motor
Carrying
handle
Winter Charger
location
Fuse locationControl Panel
Figure 1.26 -
RM510 General View
