Robomow RX20u - Power Up: Connecting and Preparing

30 31
Power
up

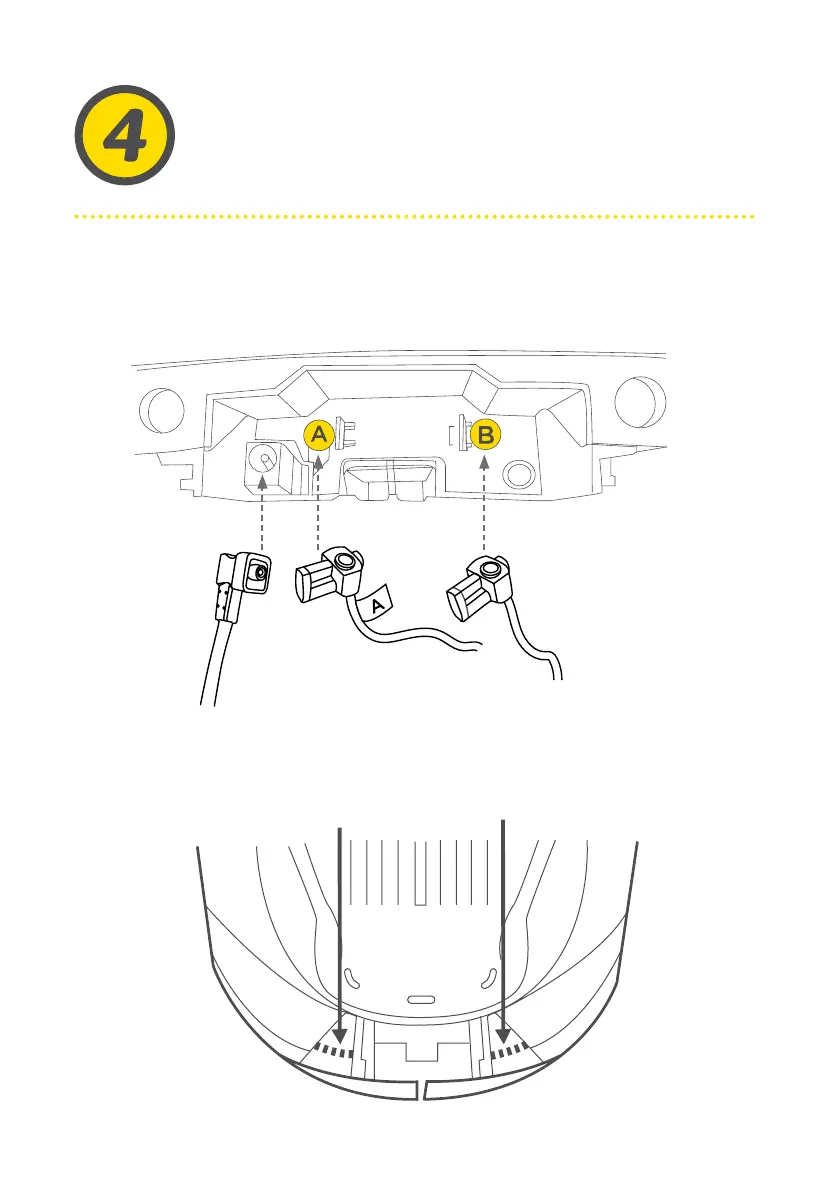

1. Connect the wire tail marked A to the A terminal and the other tail to
the B terminal of the Base Station head.
2. Connect the power supply connector to the Base Station head as well.
3. Note the markings for placing the Base Station Head.
Markings for placing the Base Station Head
