ASSEMBLY
The vegetable cutter attachment consists of two
detach able parts: the vegetable cutter bowl and the
lid.

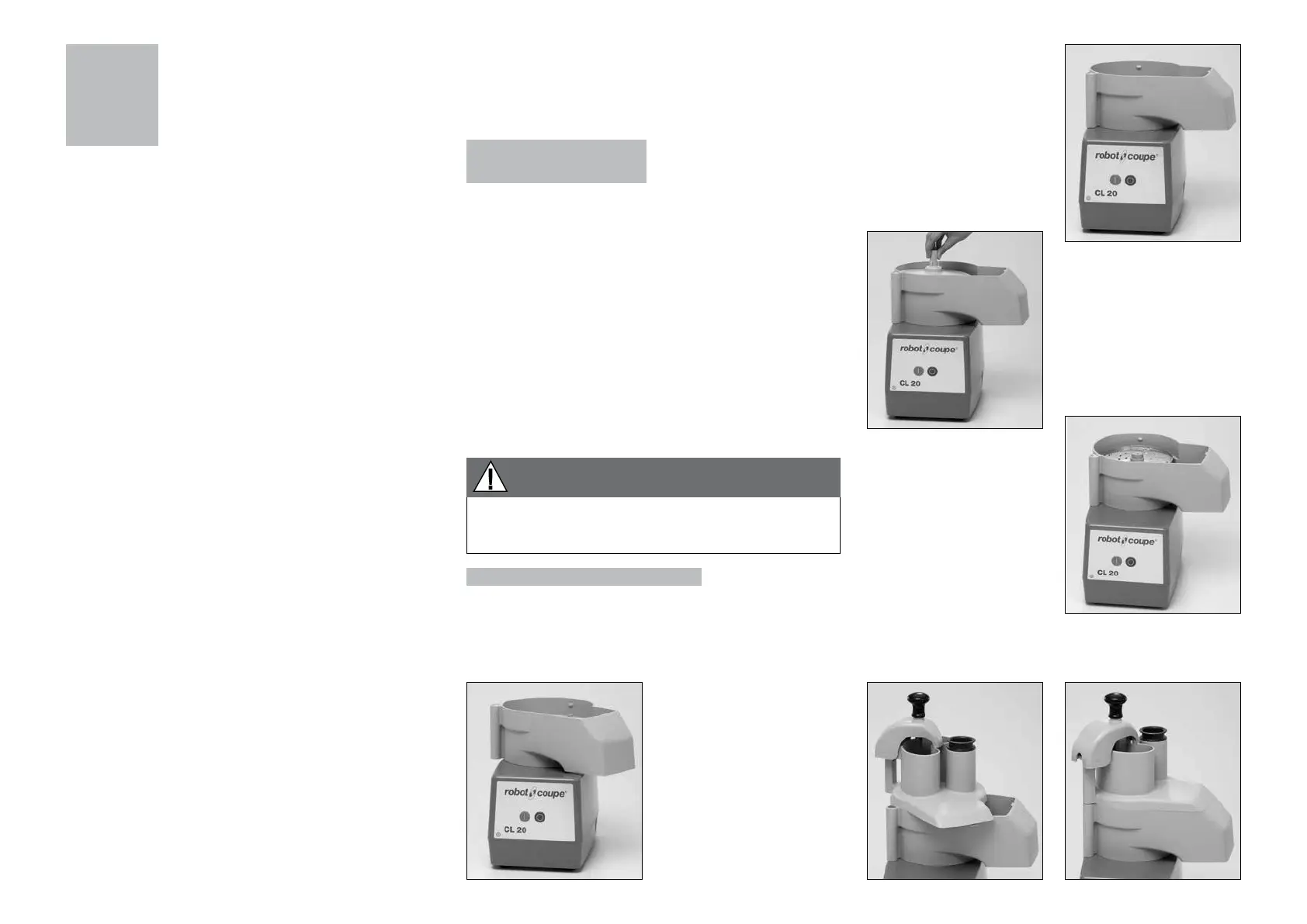

1) With the motor base
facing you, fit the bowl
onto the motor base; the
ejection chute should be
on your right.
INTRODUCTION TO
YOUR NEW VEGETABLE
PREPARATION MACHINE
CL 20 "D" Version
The CL 20 is perfectly geared to professional needs.
It can perform any number of tasks, which you will
gradually discover as you use it.
This model is equipped with a removable
vegetable preparation attachment made in ABS.
New feed hopper designed for optimum cutting :
- large hopper (area 104 cm2).
- round feed hopper (ø 58 mm)
This model is equipped with a patented magnetic
security device and motor braking system which
stops the machine as soon as the bowl or hoppers
are opened.
The CL 20 is supplied with a wide range of discs
and grids to satisfy even the most demanding chefs
when it comes to cutting up fruit and vegetables, i.e.
slicing, grating, and julienne.
Its numerous functions will open the door to a whole
new culinary world.
Thanks to its simple design, all components
requiring frequent handling for maintenance or
cleaning can be fitted and removed in a trice.
To make things easier for you, this manual gives
a breakdown of all the various fitting operations.
We place special emphasis on those actions which
cause the machine to stop.
This manual contains important information
designed to help the user get the most out of the CL
20 vegetable preparation machine.
We therefore recommend that you read it
carefully before using your machine.
We have also included a few examples to help you
get the feel of your new machine and appreciate its
numerous advantages.
SWITCHING ON
THE MACHINE
• ADVICE ON ELECTRICAL CONNECTION
Before plugging in, check that your power supply
corresponds to that indicated on the machine’s
identification plate.
The CL 20 comes with different types of motors:
230 V / 50 Hz / 1
115 V / 60 Hz / 1
220 V / 60 Hz / 1
The machine comes with a single-phase plug
connected to a power cord.
2) Turn the bowl to
the right until the motor
base connectors are
securely positioned in
their sockets.
3) Engage the white
plastic ejecting plate
on the motorshaft and
check that it is correctly
positioned at the bottom
of the bowl.
4) Then choose the disc
to be set into the ejecting
plate.
5) Place the lid on the bowl and rotate it to the right
until the lid clicks, to form an extension of the bowl.
This appliance must be plugged into an
earthed socket (risk of electrocution).
WARNING
To Next Page
