9

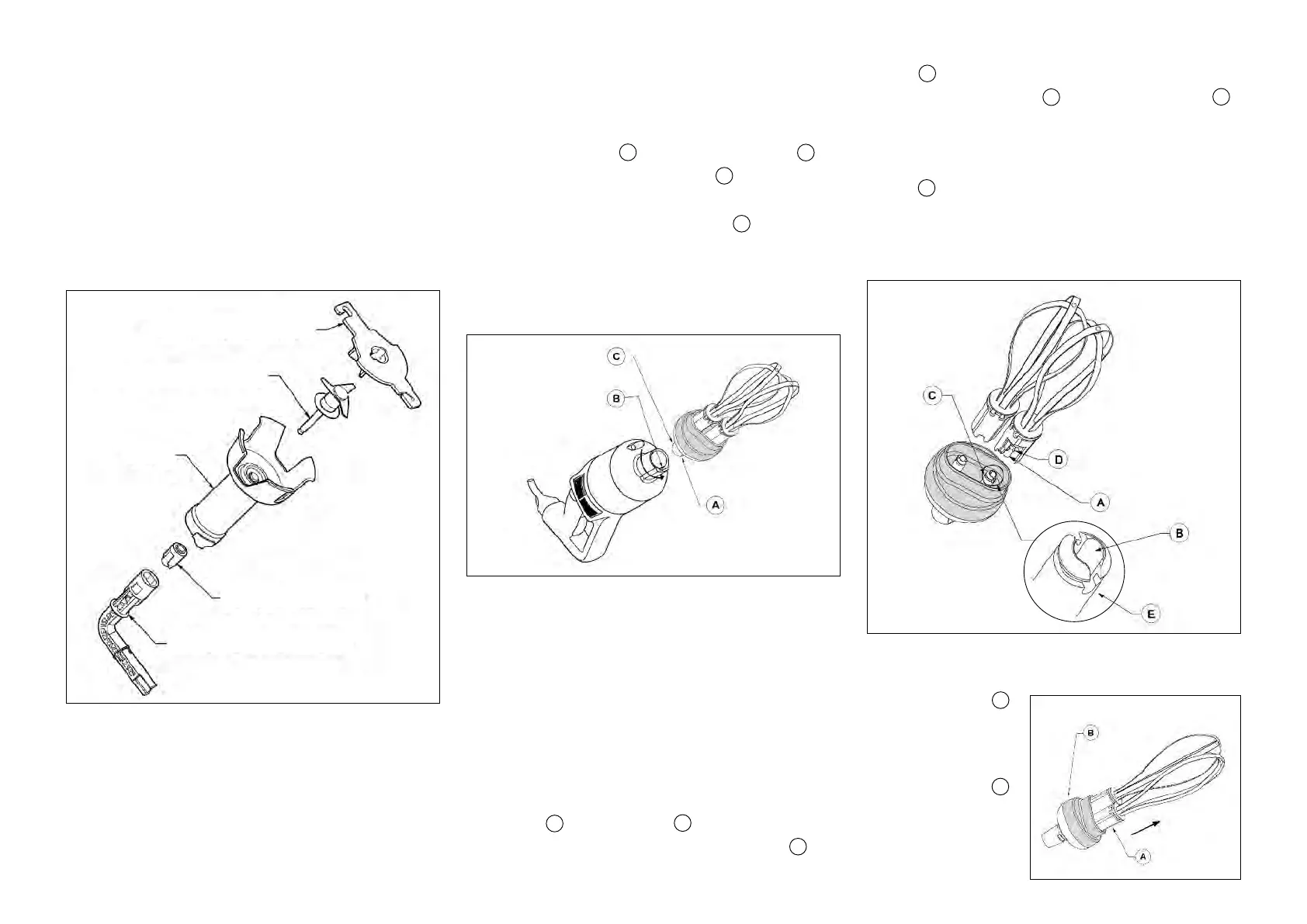

- As you push the whisk into the whisk holder drive
shaft , rotate it slightly in order to slot the drive
lugs into the notches of the drive shaft ,
thereby locking the whisk into place inside the
shaft.
- To check that the whisk is properly fixed inside the
shaft , gently tug the metal wires.
- Repeat this procedure with the second whisk. If
you cannot push it in properly, remove it, rotate it
90° and start again.
C
C
D
C
• WHISK FUNCTION (MP 350 Combi Ultra,
MP 450 Combi Ultra, MP 450 FW Ultra)
Attaching the whisk holder to the motor unit.
- Check that the machine is not plugged in.
- Align the flat side of the conical part of
the whisk holder with the catch on the inside
of the aluminium casing.
- Insert the whole of the conical part of the whisk
holder into the aluminium casing.
- Turn the whisk holder in the direction of the arrow
(see figure) until it is locked into place moderately
tightly.
C
B
A
C
Removing the tube from the motor unit
(MP 350 Combi Ultra, MP 450 Combi Ultra,
MP 800 Turbo)
- Check that the appliance is unplugged.
- Turn the tube in the opposite direction to that used
when attaching it.
- When it will go no further, remove the tube of the
aluminium casing.
Removing the blade
BLADE LOCKING
BLADES WITH WATERTIGHT SEALS
BELL
MALE DRIVING COUPLING
KNIFE DISASSEMBLING TOOL
Removing the casing
- Check that the machine is not plugged in.
- Turn the whisk holder in the opposite direction to
that used when attaching it.
- When it will go no further, remove the whisk
holder from the aluminium casing.
Fitting the whisks into the whisk holder
- Grasp the holder in one hand.
- With the other hand, take the first whisk and insert
the shaft into the bore of the whisk holder
drive shaft. Make sure the drive lugs are
properly aligned with the notches.
B
D
A
- To remove the blade safely, hold them with the tool
provided or an oven glove or a thick cloth.
- Using the removal tool, the male driving coupling.
- As soon as the male drive coupling has been
unscrewed, the blade can be removed for
cleaning.
Removing the whisks from the whisk holder
Pull the ejector
in direction to the
arrow, gripping the
ejector in one hand
and the holder
in the other.
A
B
