INTRODUCTION TO YOUR NEW
BOWL CUTTER/VEGETABLE
PREPARATION ATTACHMENT
R502 - R502 V.V. - R602 - R602 V.V.
The food processor is perfectly geared to professional
needs. It can perform any number of tasks, which
you will gradually discover as you use it.
The food processor consists of a bowl cutter and ve-
getable preparation attachment. In cutter mode, this
machine can be used to process meat, vegetables,
fine stuffing, mousse, grinding, kneading, ... in less
than 5 minutes for even the longest tasks.
In the vegetable preparation version, the device has
a wide range of discs for slicing, grating, julienne,
dicing and French fries.
Its numerous functions will open the door to a whole
new culinary world.
Thanks to its simple design, all components requiring
frequent handling for maintenance or cleaning can
be fitted and removed in a trice.
To make things easier for you, this manual gives a
breakdown of all the various fitting operations.
We place special emphasis on those actions which
cause the machine to stop.
This manual contains important information designed
to help the user get the most out of his or her bowl
cutter/vegetable preparation device.
We therefore recommend that you read it carefully
before using your machine. We have also included
a few examples to help you get the feel of your new
machine and appreciate its numerous advantages.
SWITCHING ON
THE MACHINE
• ADVICE ON ELECTRICAL CONNNECTIONS
Before plugging in, check that your power supply cor-
responds to that indicated on the machine’s
identification plate.
THREE PHASE R502 - R602
The R502/R602 come with different types of
motor: 230 x 400 V switchable / 50 Hz / 3
400 V / 50 Hz / 3
220 V / 60 Hz / 3
380 V / 60 Hz / 3
This machine is supplied with a cable to which you
simply attach the appropriate electrical plug or isola-
tor for your system. The cable has four wires, one
earth wire, plus three phases wires.
If you have a 4-pin plug:
1) Connect the green and yellow earth wire to the
earth pin.
2) Connect the three other wires to the remaining
pins.
If you have more than 4 pins in the plug, please
note the ROBOT-COUPE does not require a neutral
wire.
Switch on the empty machine, making sure that
the blade is rotating properly in an anti-clockwise
direction.
On the lid a arrow marks the blade rotation directions.
If the blade turns in a clockwise direction, swap over
two wires.
GREEN YELLOW is the earth,
DO NOT DISCONNECT
Swap either : the and the
the and the
or the and the
SINGLE PHASE R502 V.V. / R602 V.V.
(Variable speed)
The R502 V.V. and R602 V.V. models are available
with a single phase motor: +
variable speed: 230 V / 50 - 60 Hz /1
The standardized plug must be calibrated to a
minimum of 13 amps and preferably 20 amps, if
the appliance is used intensively.

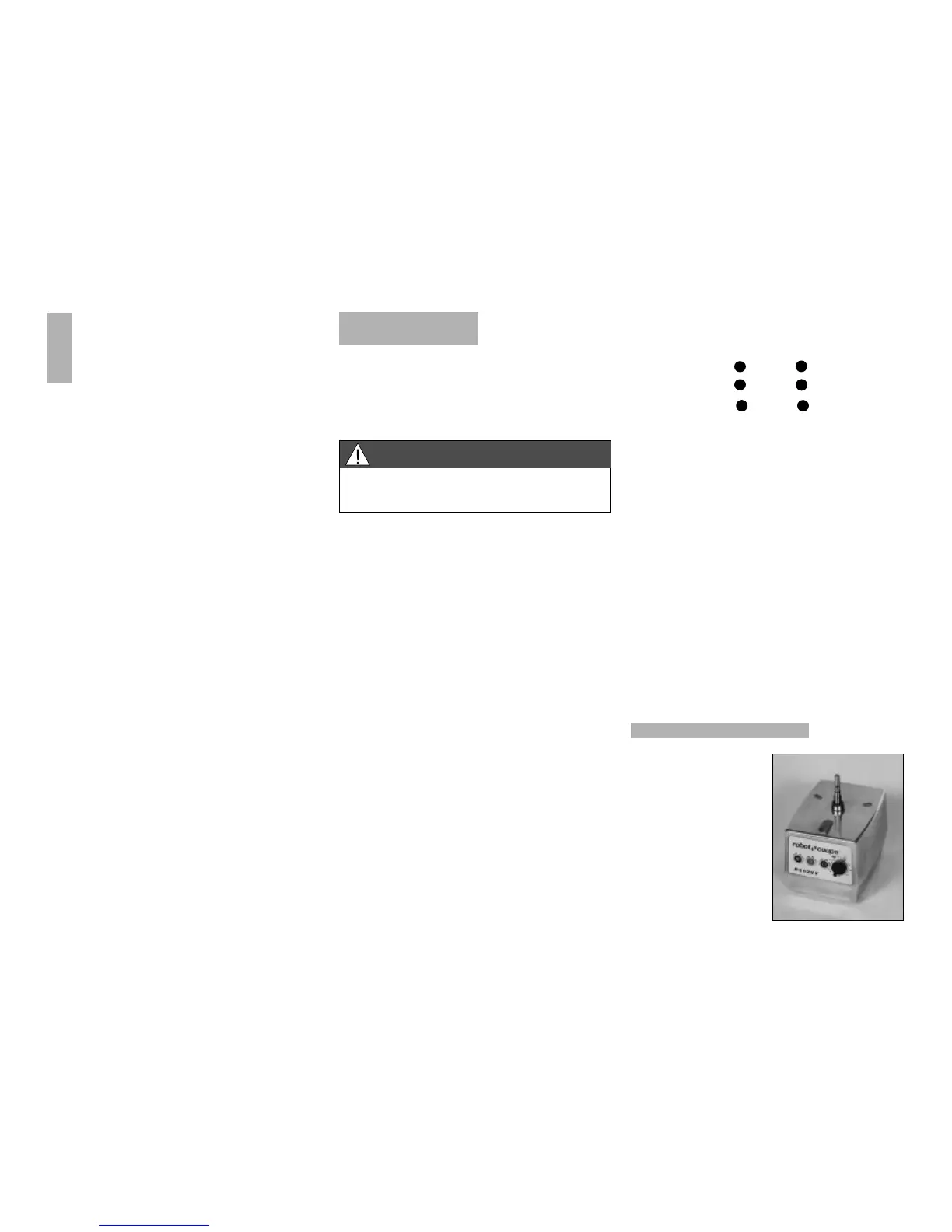

• CONTROL PANEL
Red switch = Off switch
Green switch = On switch
Black switch = Pulse control
R502 - R602: Speed selector = 750 or 1.500 rpm.
R502V.V- R602V.V.: Speed variation for cutter bowl
from 300 to 3.000 rpm.
for vegetable preparation
from 300 to 1.000 rpm.
ASSEMBLY
• BOWL CUTTER
ATTACHMENT
1) with the motor base
facing you, position the
cutter bowl on the motor
base.
