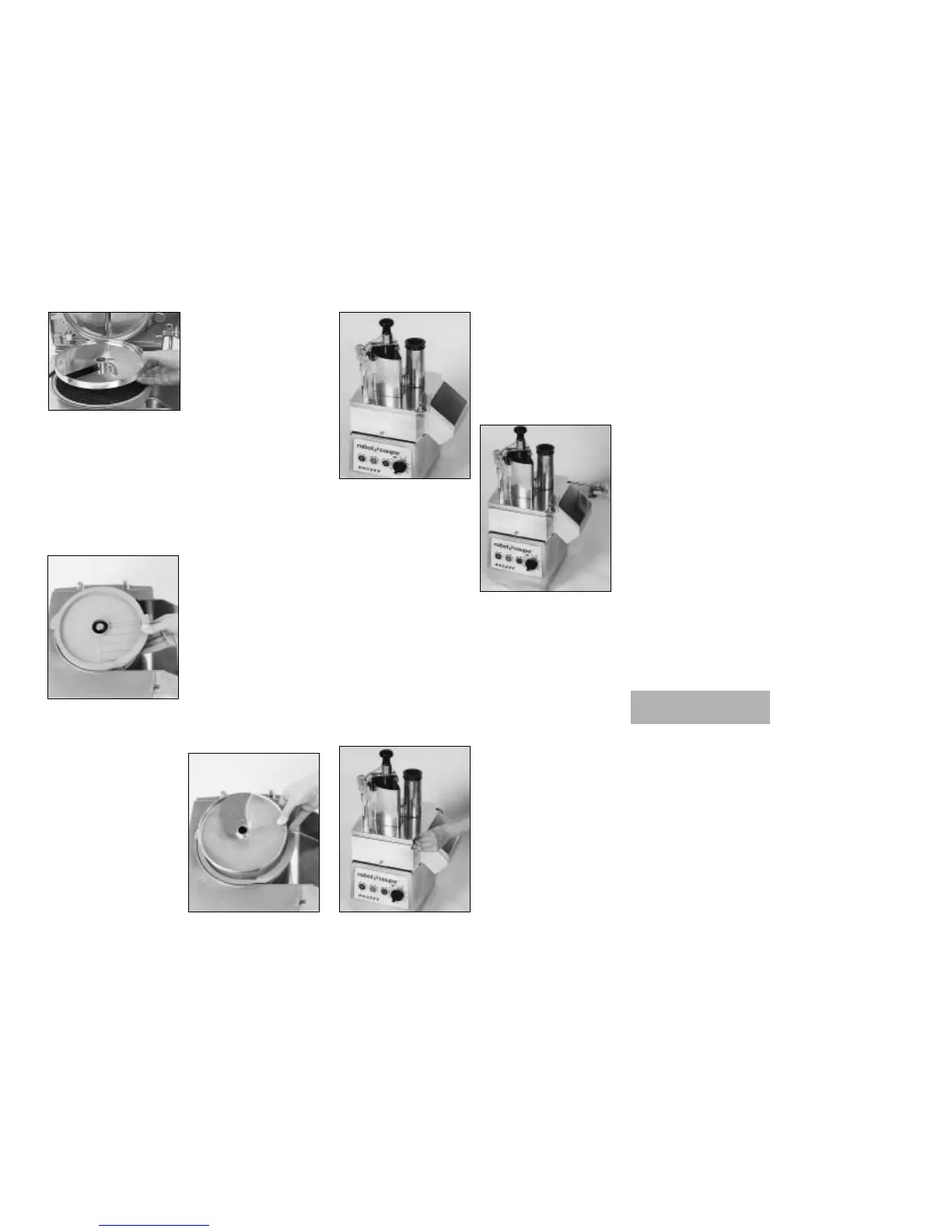

8
5) Position the head of the
vegetable preparation
machine on the motor-
shaft. The fastening hook
should now be facing you,
on your right.
6) Slip the hinge pin into
the locations provided at
the back of the motor unit.
Next fit the lid securely
onto the motor base using
the fastening hook The de-
vice is now ready to use.
When using the models R502 and R602 with the
Vegetable Preparation Attachment the motor will only
run at the low speed, 750 rpm. Changing the speed se-
lector to high speed will have no effect. This is to ensure
the best end result for your products. For the R502 V.V.
and R602 V.V. models, the speed variation selects auto-
matically the permitted speed range, which varies bet-
ween 300 and 1.000 rpm.
TO CHANGE THE DISC:
1) With the motor unit fa-
cing you, use your right
hand to undo the alumi-
num fastening hook which
holds the vegetable pre-
paration head on the
motor unit.
Lift the vegetable prepara-
tion head, tilting it back to
release the bowl.
2) Remove the disc by lifting it from underneath using
the hub and if necessary, turn in an anti-clockwise
direction to release...
In the case of dicing or French fries cutting equip-
ment, you should pull out the grid and disc assembly
in one go. The discharge plate can then be removed
by means of the two holes. Then pull out the di-
scharge plate with the aid of the two holes.
3) When fitting dicing equipment, we recommend
that you clean the inside of the bowl with a damp
cloth or sponge, particularly the part onto which the
grid is to be fitted.
Always use a clean grid.
4) Fit the discharge plate, disc or dicing equipment
as indicated in “assembly procedures“ in points (1
and 2).
5) Close the lid of the vegetable preparation machine
and lock onto the motor unit using the fastening
hook.
TECHNICAL
SPECIFICATIONS
• DESCRIPTION AND ADVANTAGES
BOWL CUTTER ATTACHMENT
- 5.5-litre stainless steel bowl for models R502 and
R502 V.V.
- 6.5-litre stainless steel bowl for models R602 and
R602 V.V.
- A patented blade, an exclusive ROBOT-COUPE
feature, gives perfect result for small or large
quantities.
Next, fit the corresponding
slicing disc (straight-edged
blade) and rotate in a
clockwise direction to en-
sure that it is correctly posi-
tioned.
Position the French fries
grid in the vegetable
preparation bowl.
Check that it is correctly
positioned with the
French fries plate posi-
tioned at the outlet.
Next fit the appropriate
slicing disc and rotate in
a clockwise direction to
check that it is correctly
positioned.
c) If you want to use the French fries potatoes cut-
ting equipment:
This equipment comprises a French fries grid and a
special French fries slicing disc.
