Hard plumbing the machine. Must be done according to local law and jurisdiction
Please remember to program through the remote controller the operation mode (pour
over or hard plumbed). Factory setting is for pour over (water feed from tank).
Water
The machine must be operated with soft, clean drinking water. If the local water
supply has a high mineral content use a water softener. A build up of mineral deposit
may restrict the flow of water within the hydraulic systems causing damage to the
machine and risking personal injury. Rocket Espresso recommends installation of an in
line filter.
Water pressure from the mains
Maximum water inlet pressure is 5 Bar (0,5 MPa – 500 KPa). Please install a pressure
reducing valve if water pressure from the mains is higher. The minimum water
pressure is 1.5 Bar (0.15MPa - 1500 KPa)

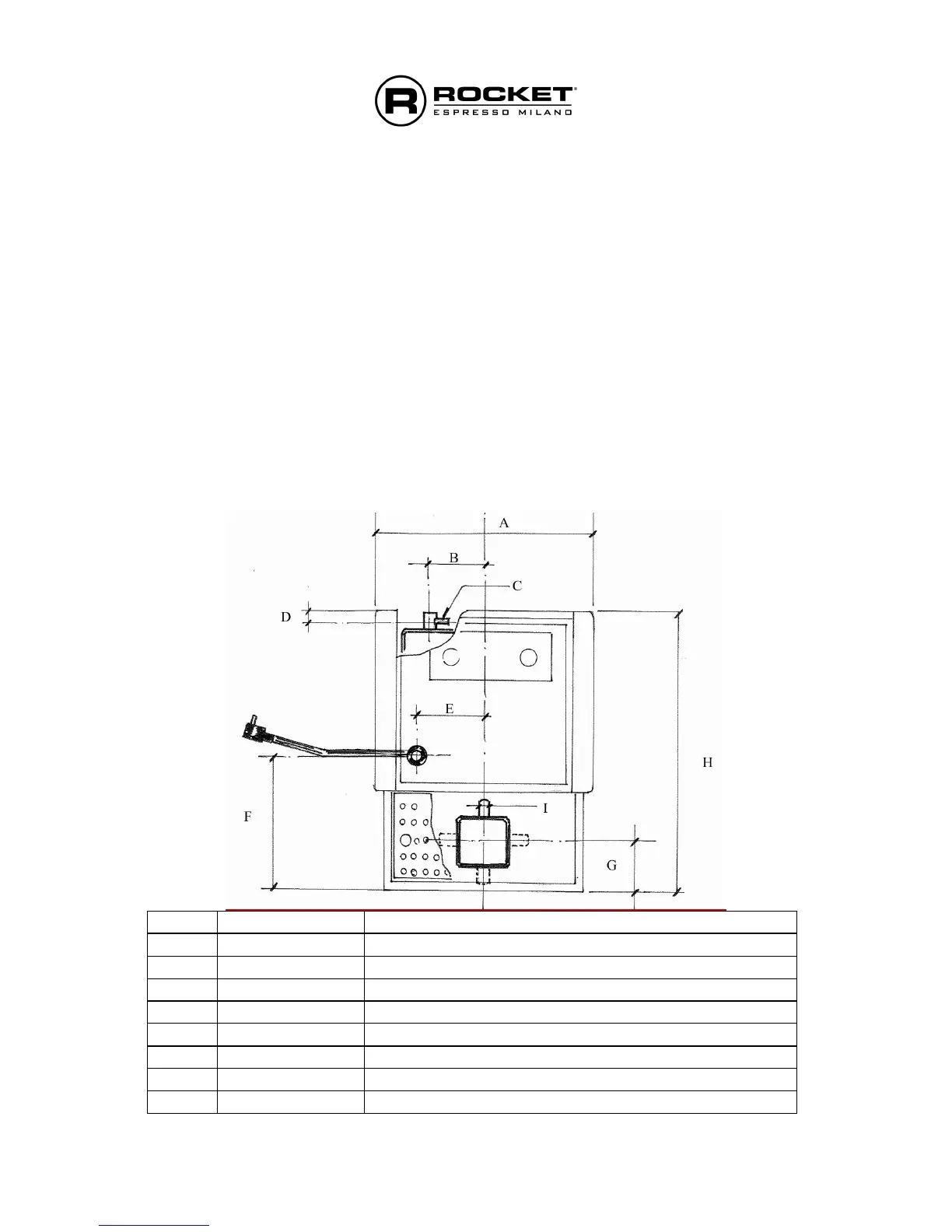

Hydraulic connections: Water inlet 1/8” GAS (please see below diagram).
A 310 mm
B 60 mm
C 1/8” GAS Connection to water inlet pipe
D 70 mm
E 91 mm
F 200 mm
G 90 mm
H 440 mm
I 10 mm diameter Diameter of drain pipe connection
