RocketFish RF-HTMT15 User Manual

10
Need help? Call 1-800-620-2790 (U.S. and Canada)

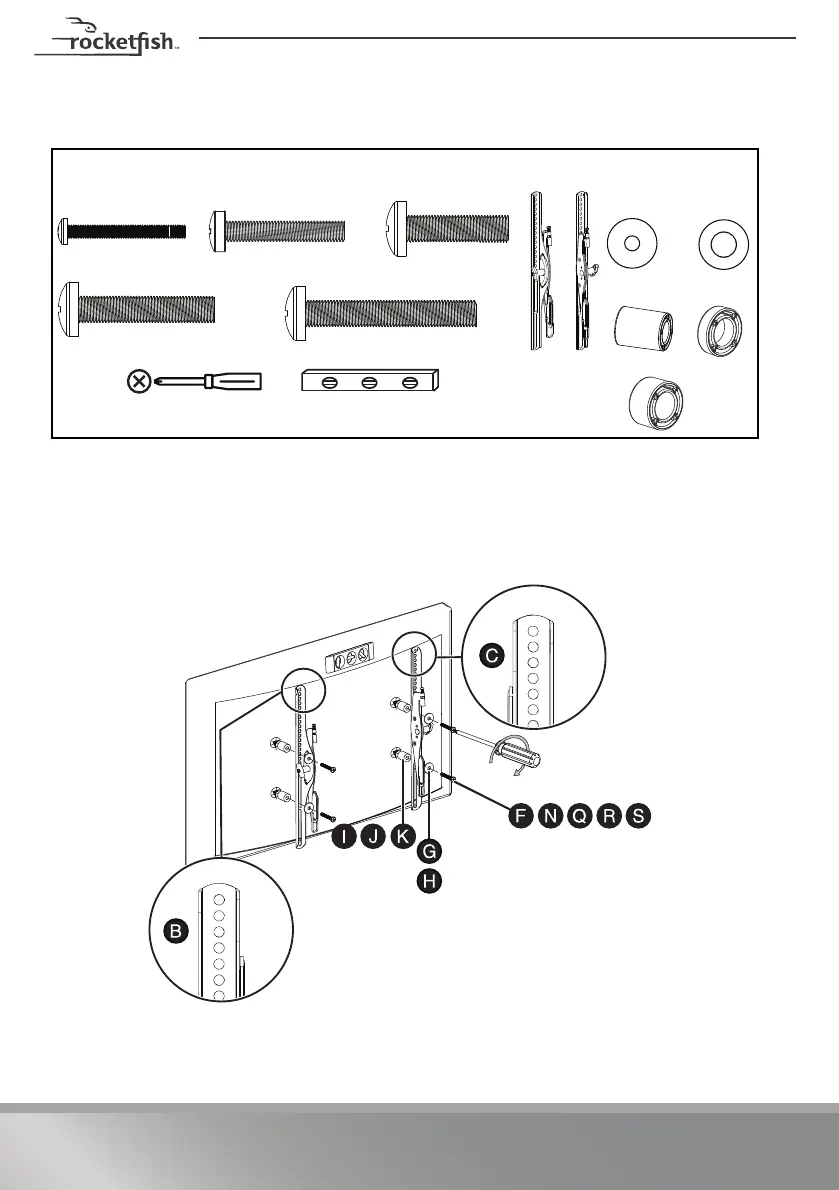

STEP 3 - Option 2: Attaching the mounting hardware to TVs with
irregular or obstructed backs
1 Align the TV brackets (B and C) with the screw holes on the back of the TV.
2 Place spacers (I, J, or K) behind the TV brackets and the washers (G or H) over the holes in
the TV bracket, then insert the screws (F, N, Q, R, or S) through the washers, TV bracket,
and spacers. Make sure the brackets are level.
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need
G (4)
H (4)
F (4)
N (4)
Q (4)
or
or
or
Screws
Washers
I (4)
(B and C) TV
Brackets
R (4)
or
S (4)
K (4)
Phillips screwdriver
Level
J (4)
R
L
