RF-RBKIT

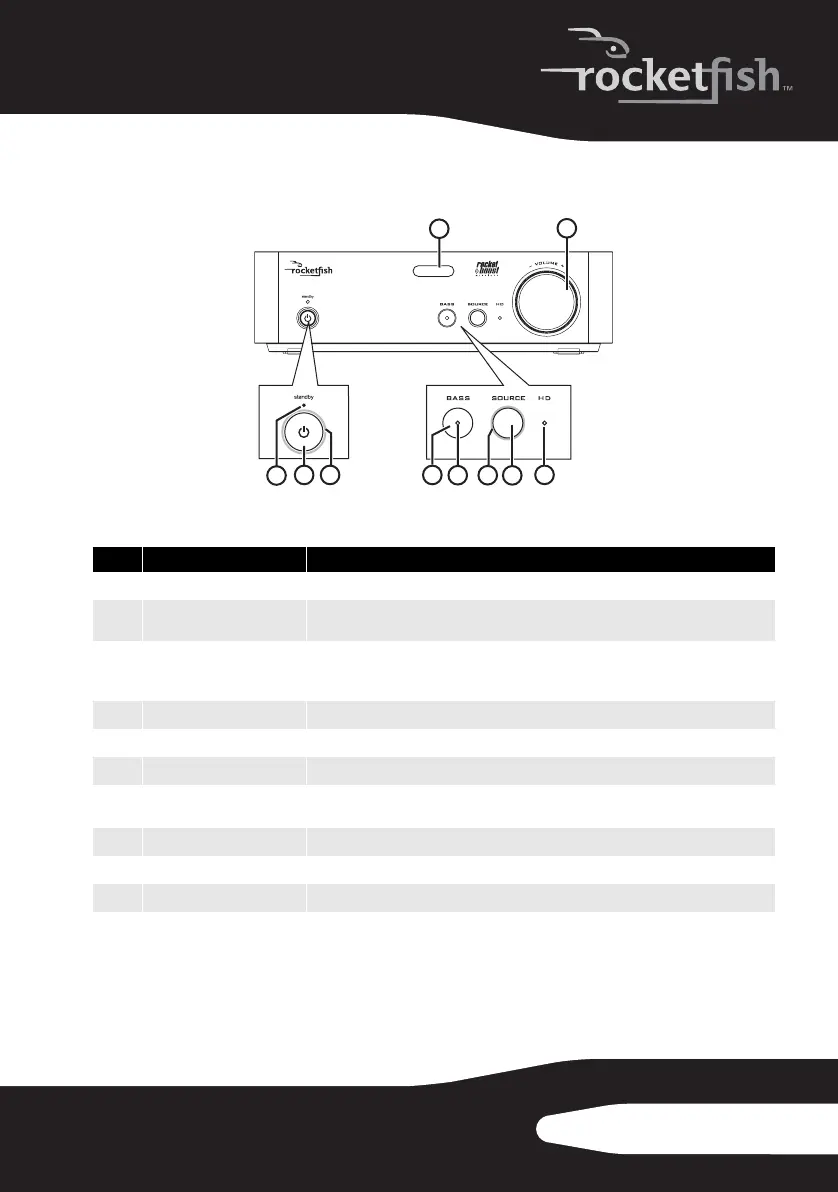

Receiver front panel
# Feature Description
1
Standby indicator Turns red when receiver is in standby mode.
2
Power/Join button Press to turn the receiver on. Press and hold to initiate joining. Press again to go to
standby mode.
3
Power/Join indicator The indicator will turn solid when it is joined in a network, if the device is not in a
network, the indicator blinks slowly. When the device is put in joining mode, the
indicator blinks rapidly.
4
BASS button Toggles bass enhancement on or off.
5
Bass indicator Lights when the bass enhancement is activated.
6
SOURCE indicator Lights when the receiver is connected to an audio stream.
7
SOURCE button Press to select different audio streams on your Rocketboost network. Each press
moves to the next source.
8
HD indicator Lights when the receiver is receiving HD audio signals.
9
IR sensor window Receives the signal from the remote control.
10
VOLUME knob Controls the volume level.
TM
1
2
3
9
5
7
6
4
10
8
