RocketFish RF-RBKIT User Manual

9
RF-RBKIT

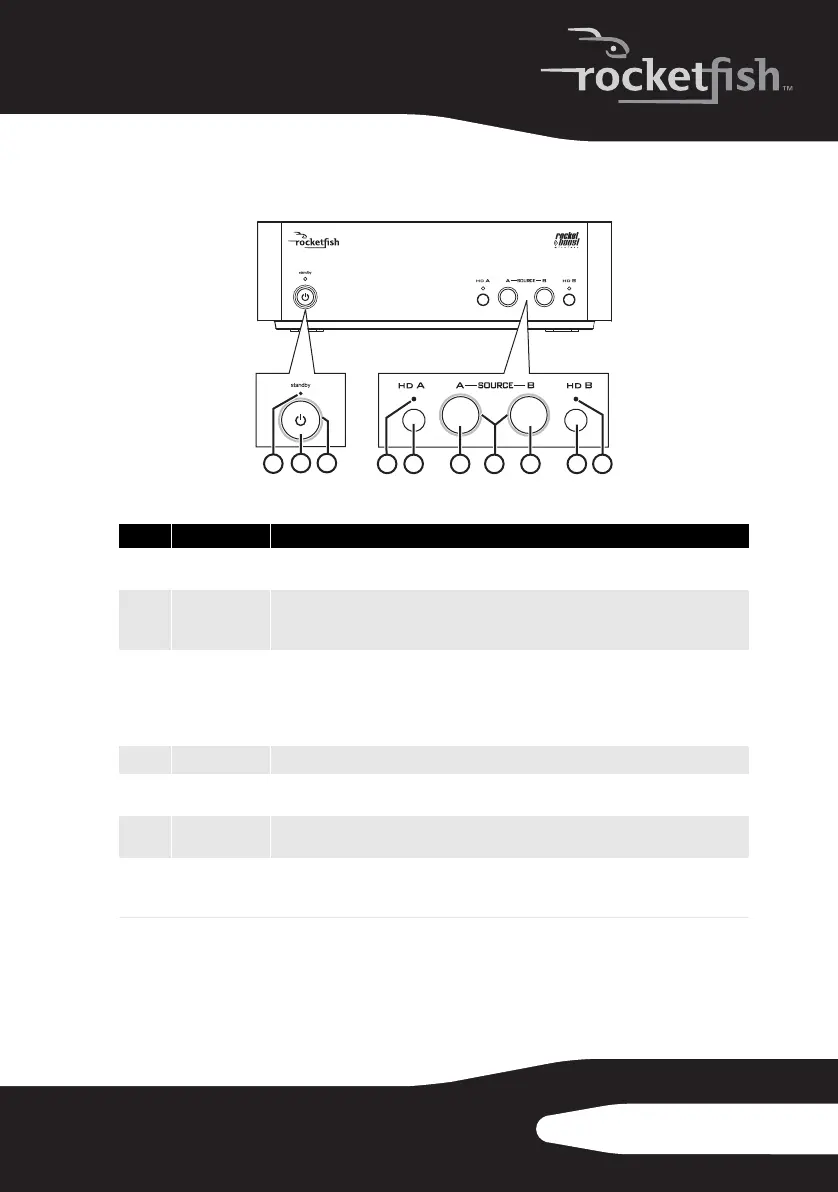

Sender front panel
# Feature Description
1
Standby
indicator
Turns red when the sender is in standby mode.
2
Power/Join
button
Press to turn the sender on. Press and hold to initiate joining. Press again to go to
standby mode. When you connect the AC power adapter, the device turns on
automatically.
3
Power/Join
indicator
Lights blue when the HUB STATUS switch is set to DISABLE.
Lights green when the HUB STATUS switch is set to ENABLE.
The indicator will turn solid when it is joined in a network, if the device is not in a
network, the indicator blinks slowly. When the device is put in joining mode, the
indicator blinks rapidly.
4 & 10
HD A/B indicator Lights when the high-definition function is activated.
5 & 9
HD A/B button Press repeatedly to toggle between CD and HD audio link modes for input A and
input B, respectively. When HD is activated, the audio quality is enhanced.
6 & 8
Source A/B
button
Press to enable the source to be transmitted onto the network, and press again to
disable the source. The status is shown on the indicator.
7
Source A/B
indicator
The indicator is illuminated steadily when a source is being transmitted.
The indicator is off when no source is enabled.
The indicator blinks for a short while when a receiver selects this source to listen to.
TM
1
5
4
10
8
7
2
3
9
6
