RocketFish RF-TVMFM02V2 User Manual

13
Need help? Call 1-800-620-2790 (U.S. or Canada)
TV WALL MOUNT RF-TVMFM02V2/RF-TVMFM02V2-C
You’ll need
Wall
Home
position
Full
extension

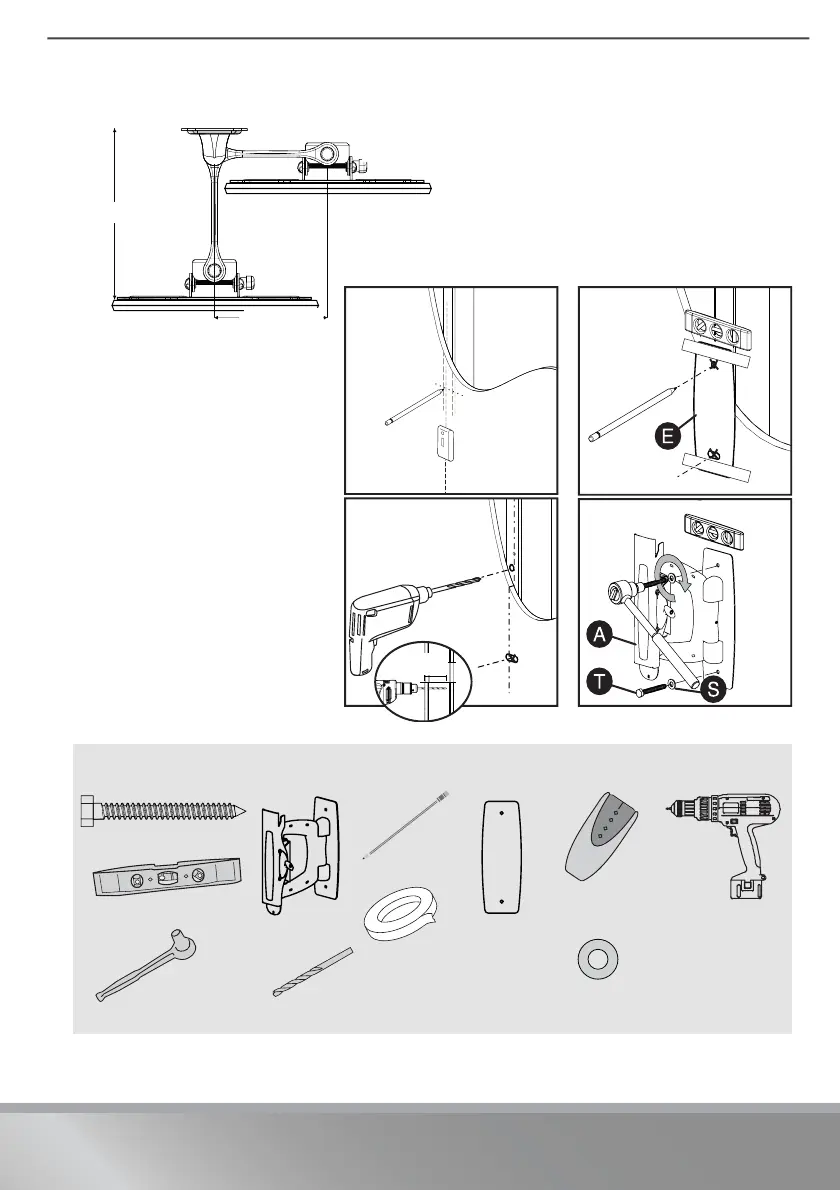

Note: TV shifts 6.99 in. (177.5 mm)
laterally from the home position to full
extension.
9.72 in. (246.9 mm)
6.99 in.
(177.5 mm)
1
2
3
4
75mm
3 in.
75 mm
3 in.
Note: Minimum wood stud size: common
51 x 102 mm (2 x 4 in.) nominal 38 x 89 mm
(1.5 x 3.5 in.)
S (2)
Edge-to edge
stud finder
T (2)
Pencil
Drill
7/32" wood drill bit
1/2" socket wrench
Level
Tape
Arm assembly (A)
Template (E)

RocketFish RF-TVMFM02V2 Specifications

General

Brand	RocketFish
Model	RF-TVMFM02V2
Category	TV Mount
Language	English
