15
RF-RBWHP01
Connecting the system to an audio source

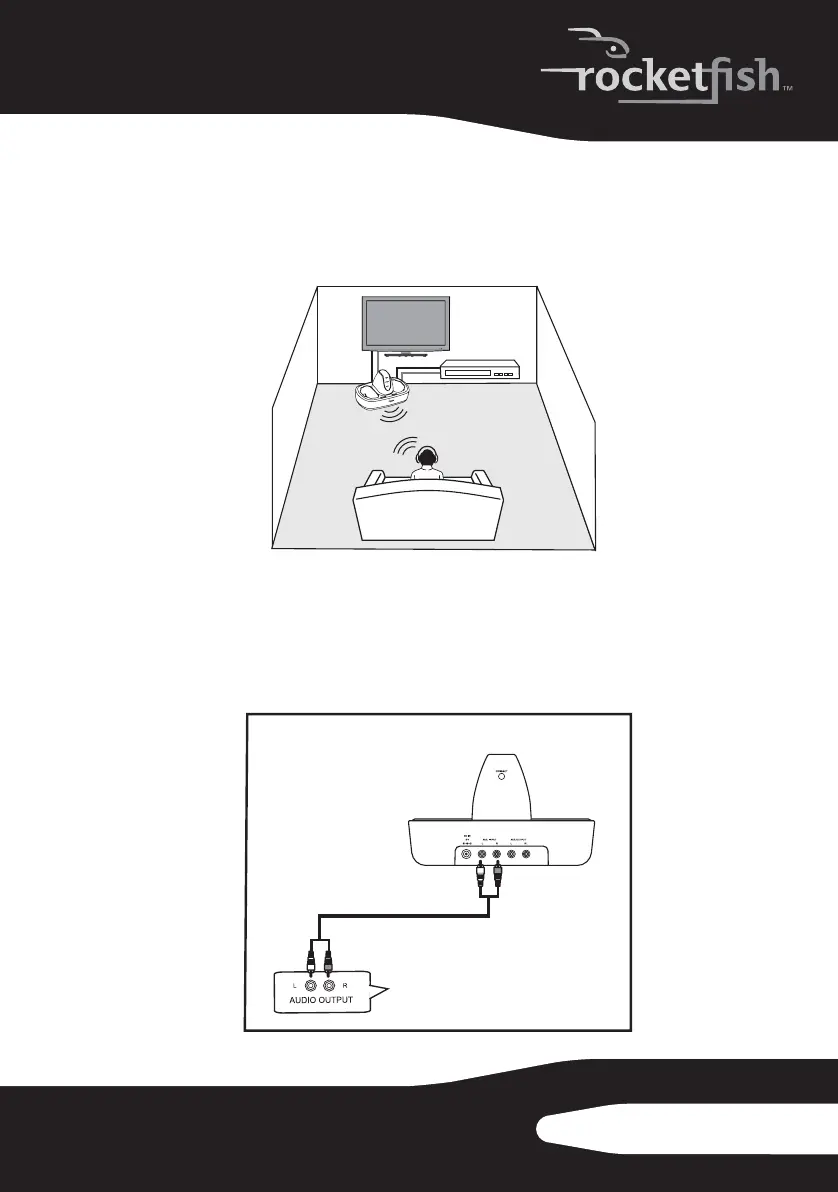

The following diagram shows a typical user installation. In this case
the docking station is connected to the audio output of a TV. Other
devices with audio outputs could be used as well.
To connect the docking station to your audio source:
• Using the supplied RCA audio cable, connect the audio output jacks of
your audio source to the AUX INPUT jacks of the docking station. Make sure
that you connect the same color jacks together (the white to the white
and the red to the red).
TV
A/V receiver
(optional
connection)
Docking station
Headphones
Docking station
back panel
Audio source
White
White
Red
Red
RCA cable (supplied)
RF-RBWHP01_11-0883_MAN_V2.fm Page 15 Tuesday, October 18, 2011 11:04 AM
