Rockinger RO 244-2 - Coupling Pin

02.2011
ZDE19988288P2
ROCKINGER
Member of JOST-World
RO244-2
23
GB
Repair work
1.4 Coupling pin
Coupling pin
Requirements
– Coupling closed
– Hand lever removed; Section 1.1
– Locking lever removed; Section 1.2
– Closing lever removed; Section 1.3
TOOLS:
– flat-tip screwdriver, medium
– Locking plate for control pin,
part no. ROE65632
Removal

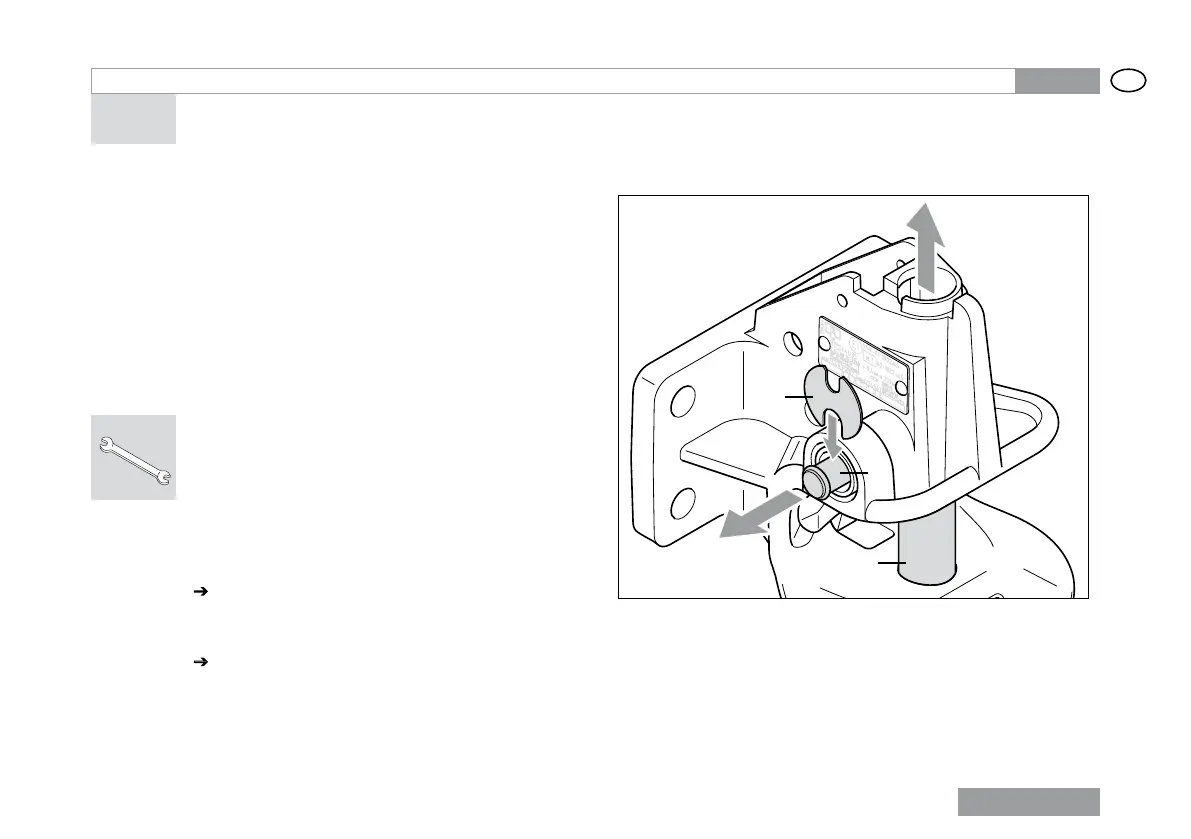

Use the screwdriver to press the control
pin [6A] outwards and arrest it using the
locking plate [6B]
Remove the coupling pin [6C] from the
top
[6] A Control pin
B Locking plate, part no. ROE65632
C Coupling pin
A
B
C
