Rockinger RO 244-2 - Locking Lever

02.2011
ZDE19988288P2
ROCKINGER
Member of JOST-World
RO244-2
19
GB
Repair work
1.2 Locking lever
Locking lever
Requirements
– Coupling closed
– Hand lever removed; Section 1.1
TOOLS:
– 2x open-end, ring or fork spanner,
8 mm
Removal
Release and remove the bolt [3A]
Remove cap [3B]
Press the closing lever [3C] all the way
down and hold it there
Remove the locking lever [3D]

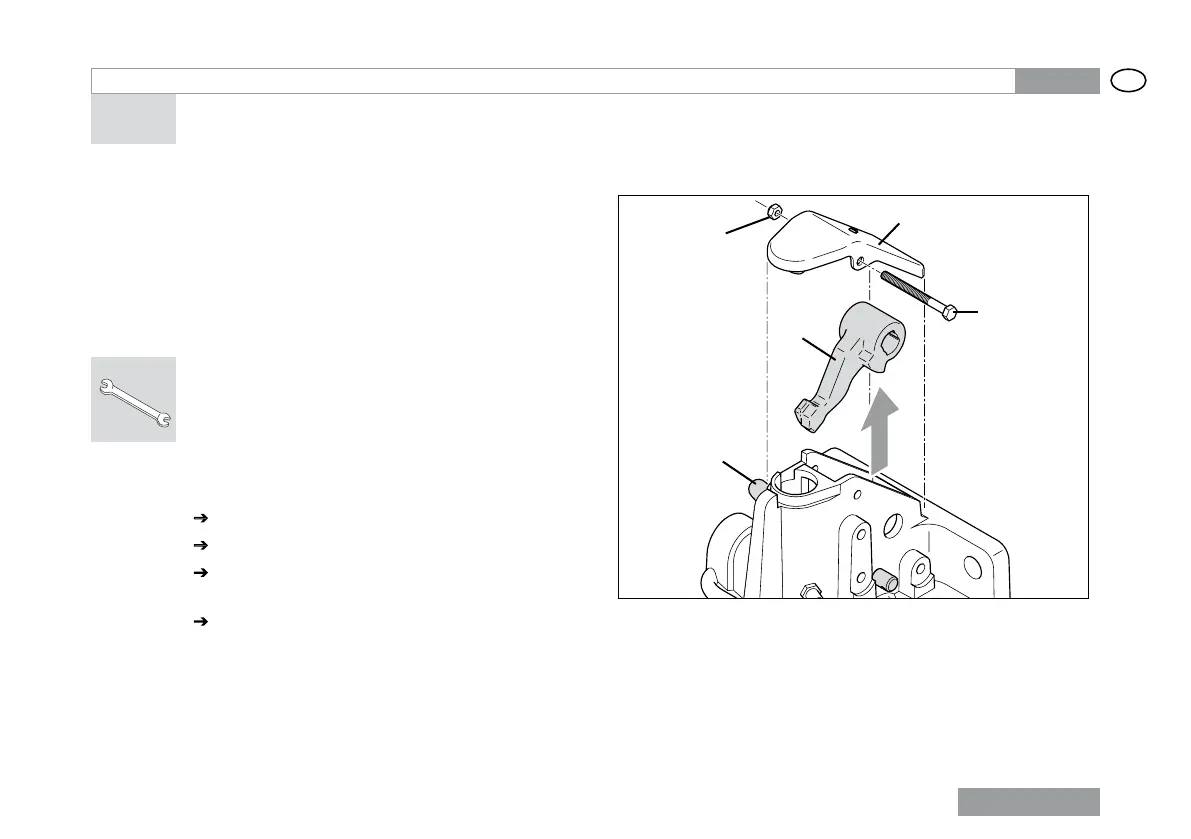

[3] A Bolt
B Cap
C Closing lever
D Locking lever
E Locking nut
A
B
C
D
E
