Rockinger RO 244-2 - Function Check

02.2011
ZDE19988288P2
ROCKINGER
Member of JOST-World
RO244-2
25
GB
Repair work
2.1 Function check
Function check
Procedure
Press the hand lever [7E] upwards until
it engages
– The control pin [7B] must now be clear-
ly projecting (12 mm)
Press the closing lever [8A] down all
the way.
– The control pin [8B] should now be no
longer projecting
NOTE!
If the control pin is still projecting when the
coupling is closed [9A]
Replace the locking device,
Repair instructions RO
244-2
www.jost-world.com
Replace the locking lever; Section 1.2

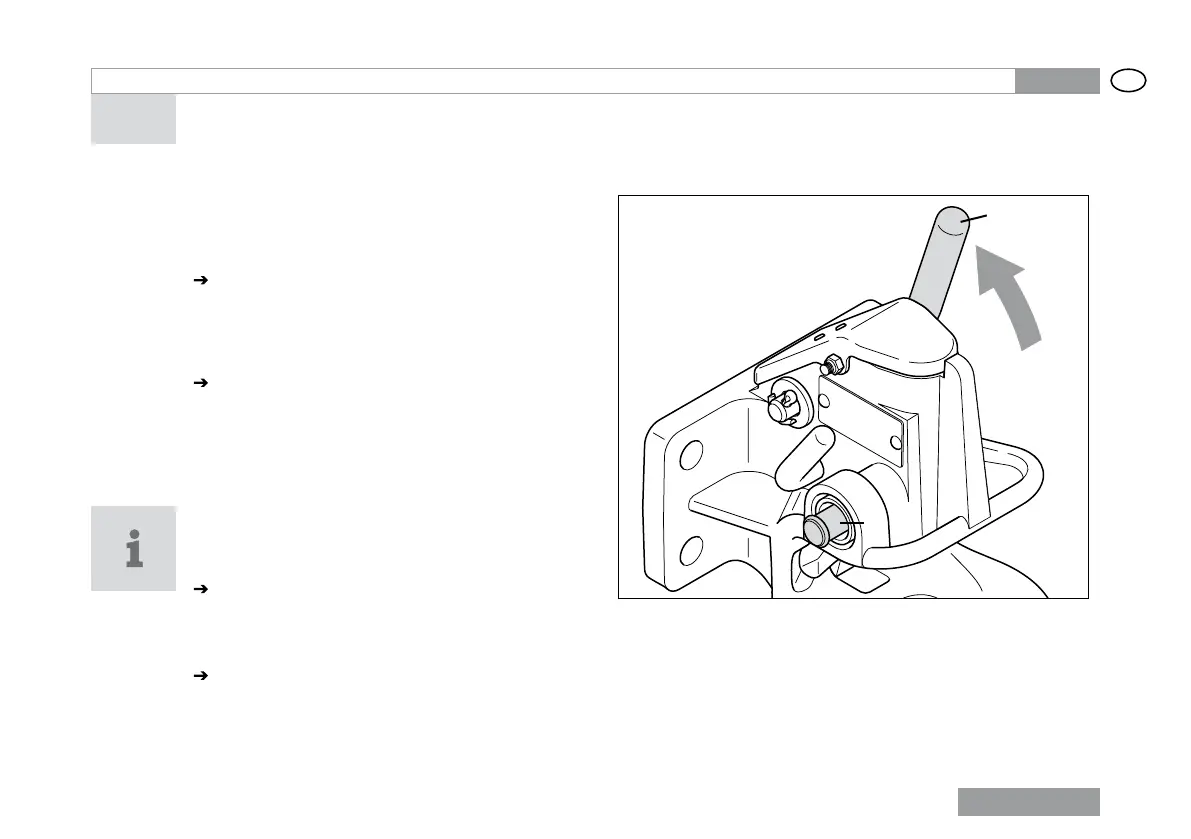

[7] A Hand lever
B Control pin
A
B
