Rockinger RO 244-2 - Closing Lever

02.2011
ZDE19988288P2
ROCKINGER
Member of JOST-World
RO244-2
21
GB
Repair work
1.3 Closing lever
Closing lever
Requirements
– Coupling closed
– Hand lever removed; Section 1.1
– Locking lever removed; Section 1.2
TOOLS:
– flat-tip screwdriver, medium
Removal
Press the release lever [5B] slightly
back and hold it there
Pull out the closing lever [5A]

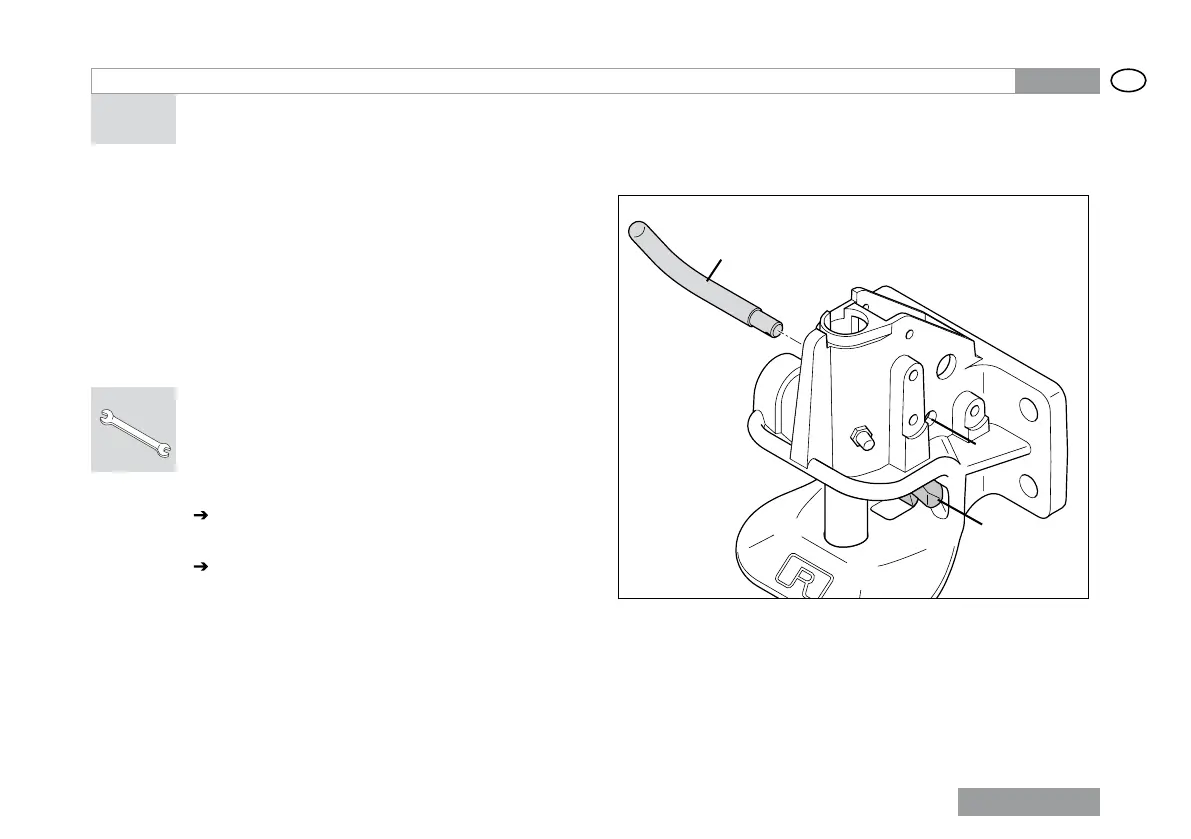

[5] A Closing lever
B Release lever
C Housing boring
A
B
C
