Repair work
Installation
Press the closing lever [2A] all the way
down and hold it there
Slide in the hand lever with spring
Check that the hand lever is fitted
correctly
– When the coupling is closed, the lever is
pointing to the front
Tension the spring with the pipe wrench
and hang it onto the closing lever
Fit washers and two new split pins [2B]
Secure the split pins against falling out:
bend the end of the pin
Check the coupling for correct
functioning; Section 2.1
LUBRICANTS
– Multi-purpose grease

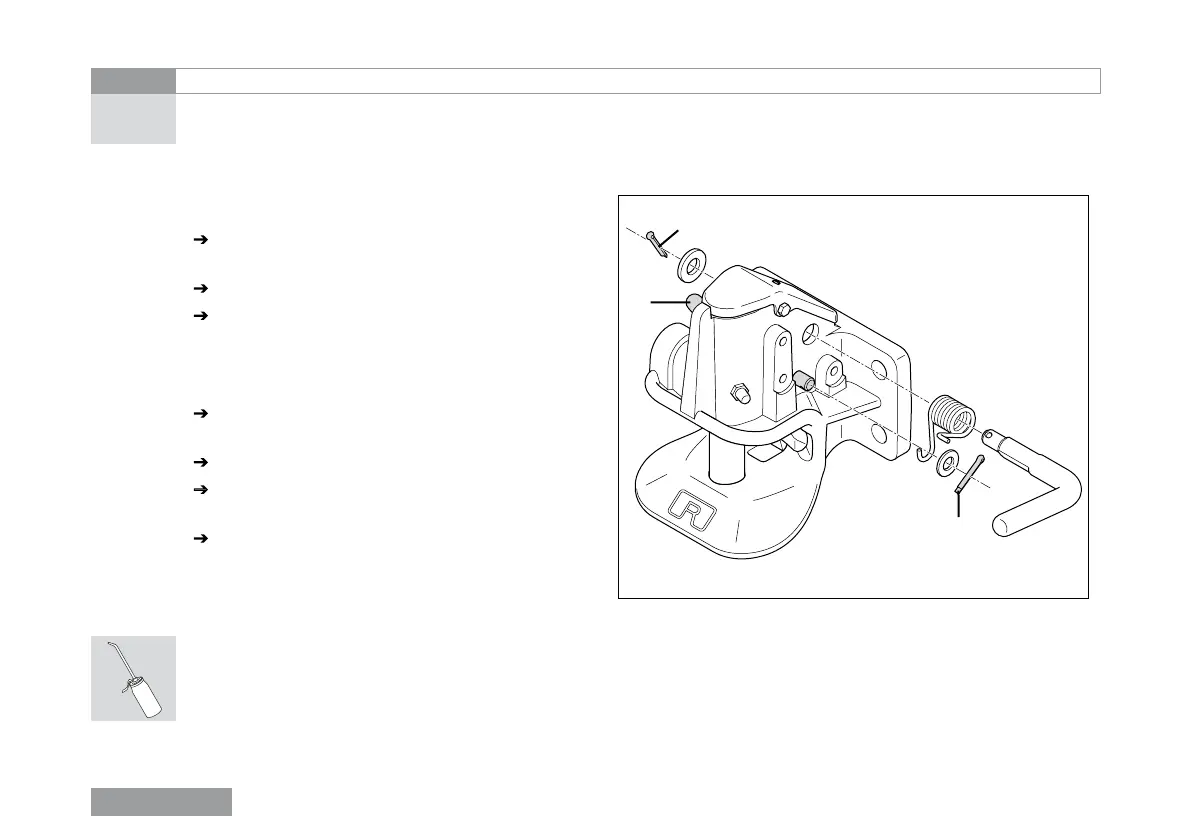

[2] A Closing lever
B Split pins
