Rocktron PatchMate LOOP 8 - Page 10

10
Connections....continued.....

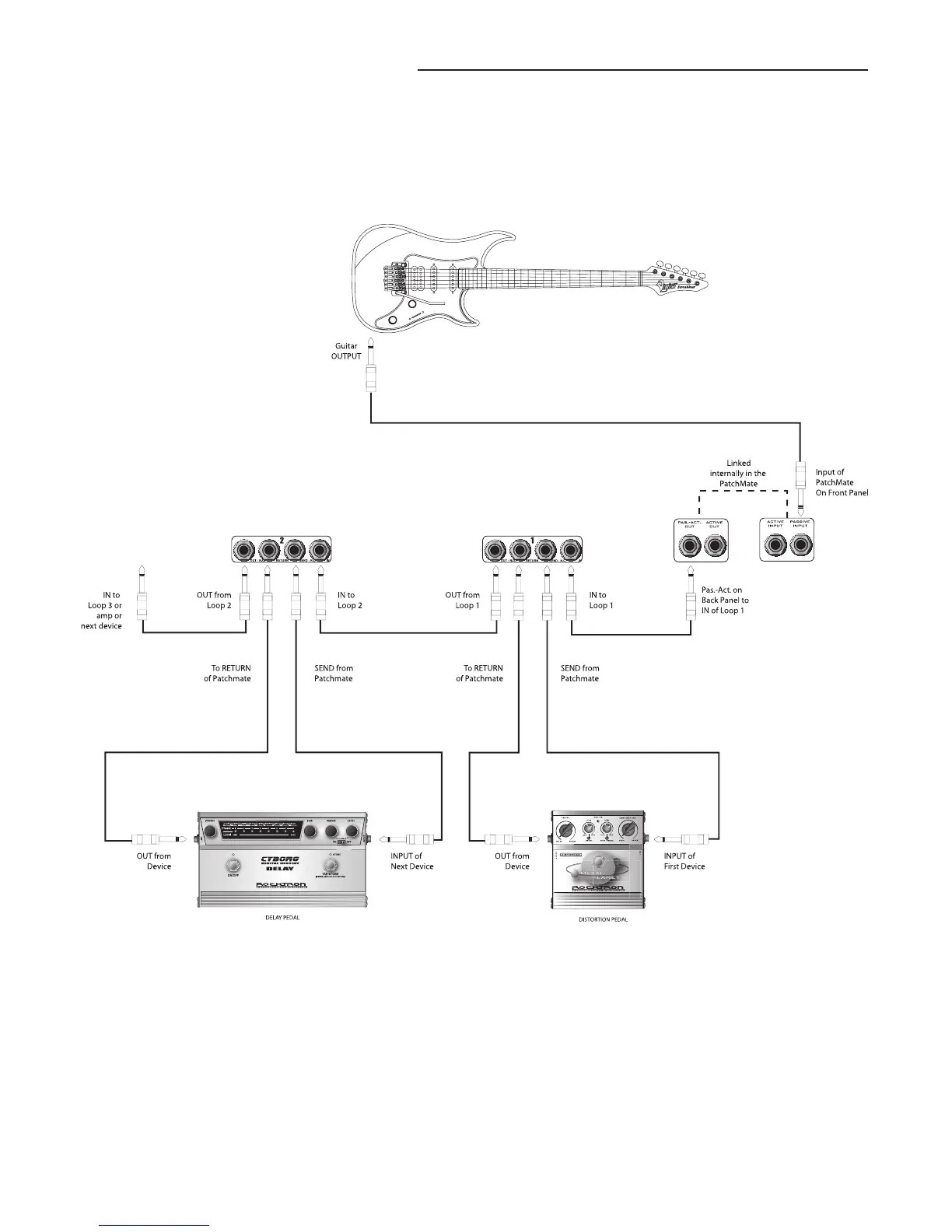

This connection diagram shows one way to use the LOOPs in the PatchMate to connect stompboxes
(pedals). Although only two connections are shown here, you can follow a similar progression of con-
nects using LOOPs 3-8.
